Indicators, Controls, and Operation

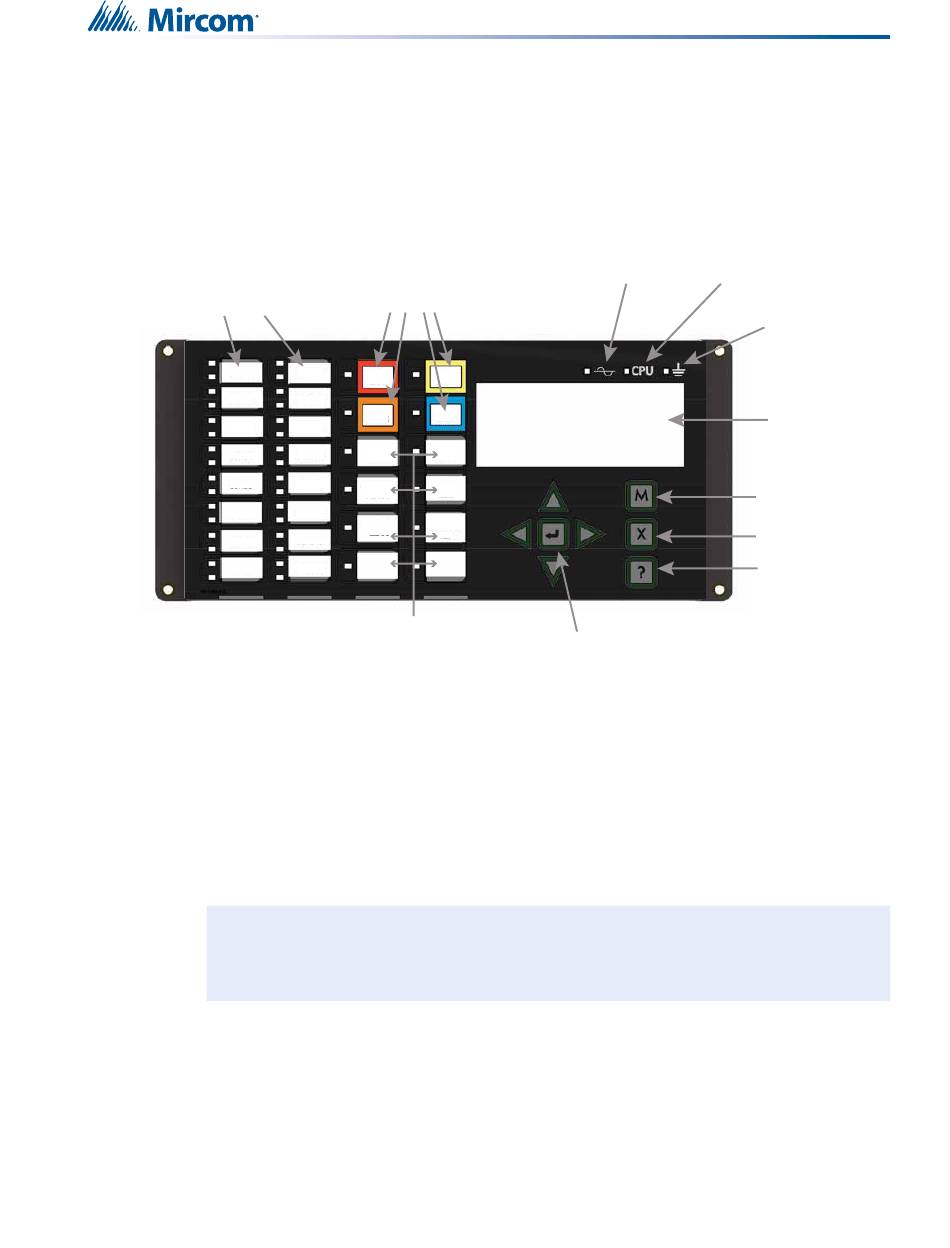

Refer to figure below for LED indicators, control buttons, and switches locations.

Figure 71 Indicators and Control Location

16 Configurable
bi-coloured zone
indicators and 16
trouble indicators
ZONE 1
ZONE 2
ZONE 3
ZONE 4
ZONE 5
ZONE 6
ZONE 7
ZONE 8
Control and Indicators for Signal
Silence, General Alarm, Automatic Alm
Sig Stop (Acknowledge), Fire Drill,
System Reset, Lamp Test (Visual Indicator
Test) and Spare programmable Buttons
LED indicators are amber (trouble or supervisory), red (alarm), or green (AC On), and may
illuminate continuously (steady) or at one of two flash rates:
• Fast Flash: 120 flashes per minute, 50% duty cycle.
• Trouble Flash: 20 flashes per minute, 50% duty cycle
i
Note:
Paper Labels for Buttons and Indicators
Buttons and indicators are supplied with paper labels. These labels slide into the plastic label
templates on the face of the panel. Paper labels allow for easy English / French selection and
custom-printed zone information.
Queue controls and
indicators for Alarm,
Supervisory,
Trouble and Monitor
ZONE 9 ALARM TROUBLE
QUEUE QUEUE
ZONE 10
SUPV. BLDG
QUEUE
QUEUE
ZONE 11
SIGNAL
FIRE
ZONE 12
SILENCE
DRILL
ZONE 13
SYSTEM
GENERAL
RESET
ALARM
ZONE 14
AUTOMATIC
LAMP
ALM SIG
TEST
STOP (ACK)
ZONE 15
ZONE 16
The General Alarm LED and pushbutton, and the Automatic Alm Sig Stop (Ack)
LED and pushbutton, are active only on a system configured for "Two Stage."
AC On CPU Fault
Indicator Indicator
Cursor buttons
and Enter button
Ground Fault
Indicator
LCD Display
4 lines
20 characters
Menu
Cancel
Info
