6.5

ANC-6000 Audio Network Controller Board

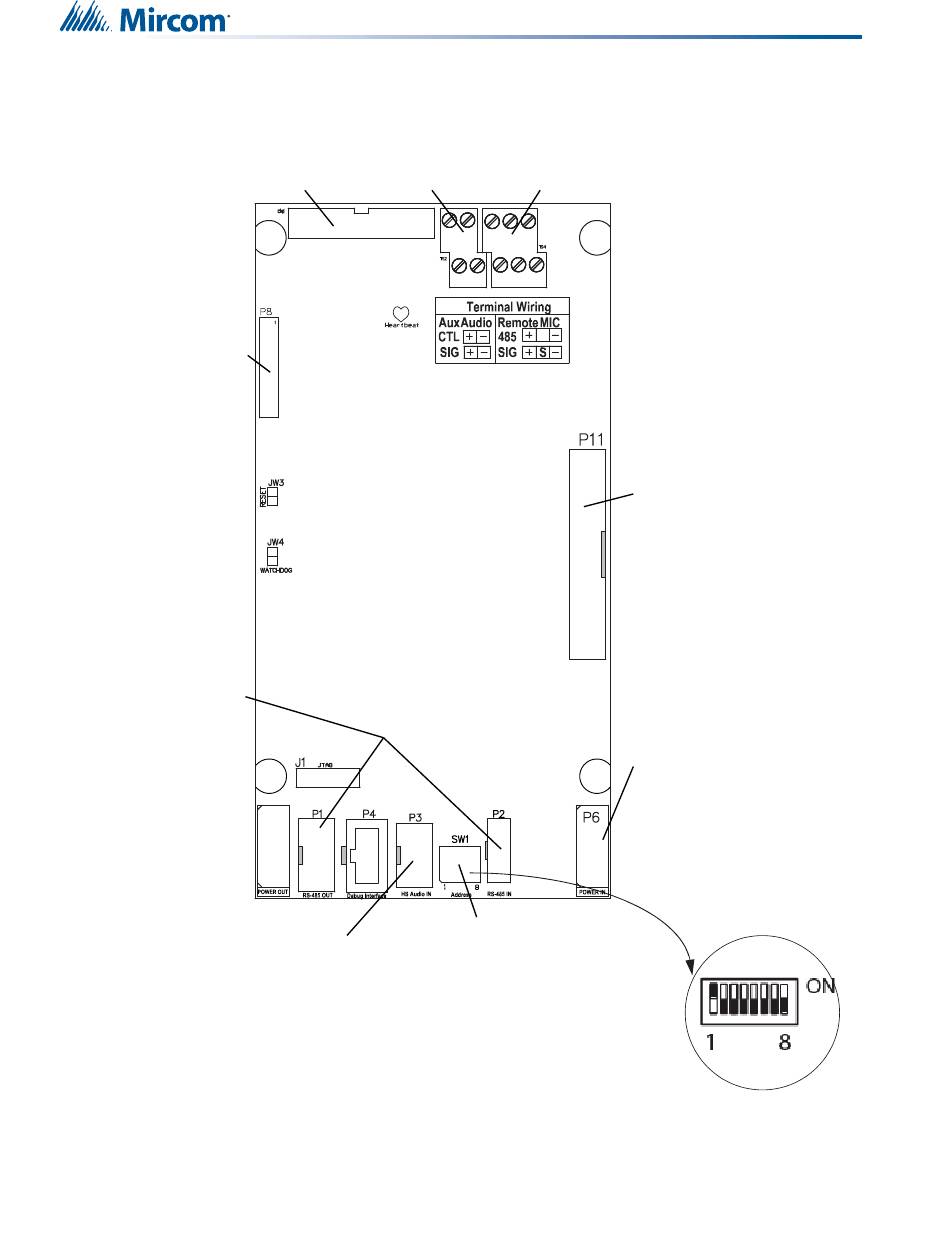

Figure 52 ANC-6000 Audio Network Controller board

Ribbon Cable to
P1 on QCC-6000
FPGA
JTAG
JW4 Jumper
factory use only,
leave open
Connect
RS-485 cable
from P3 on the
main fire alarm
board to P2 IN
on this board
(daisy chain
fashion) and
from P1 OUT to
next main fire
alarm board or
to next
FNC-2000
P3 Connect to main fire
alarm board P16 if using
Digital Audio and/or Phone
67
AUX AUDIO
+ -
P5
ON
REMOTE MIC
+ -
+ - + S -
DIP Switch SW1 is factory set
at address one, SW1-1 ON.
Refer to Appendix C for all
DIP switch address settings.
Field Wiring of Audio
Connects to P10 on TNC-5000
Telephone Network Controller
Module
Connect power cable from
P8 on the main fire alarm
board to P6 on this board
(daisy chain fashion) and
from P5 OUT to next main
fire alarm board or to next
ANC-6000
