Appendix I: Configuration Example Setup

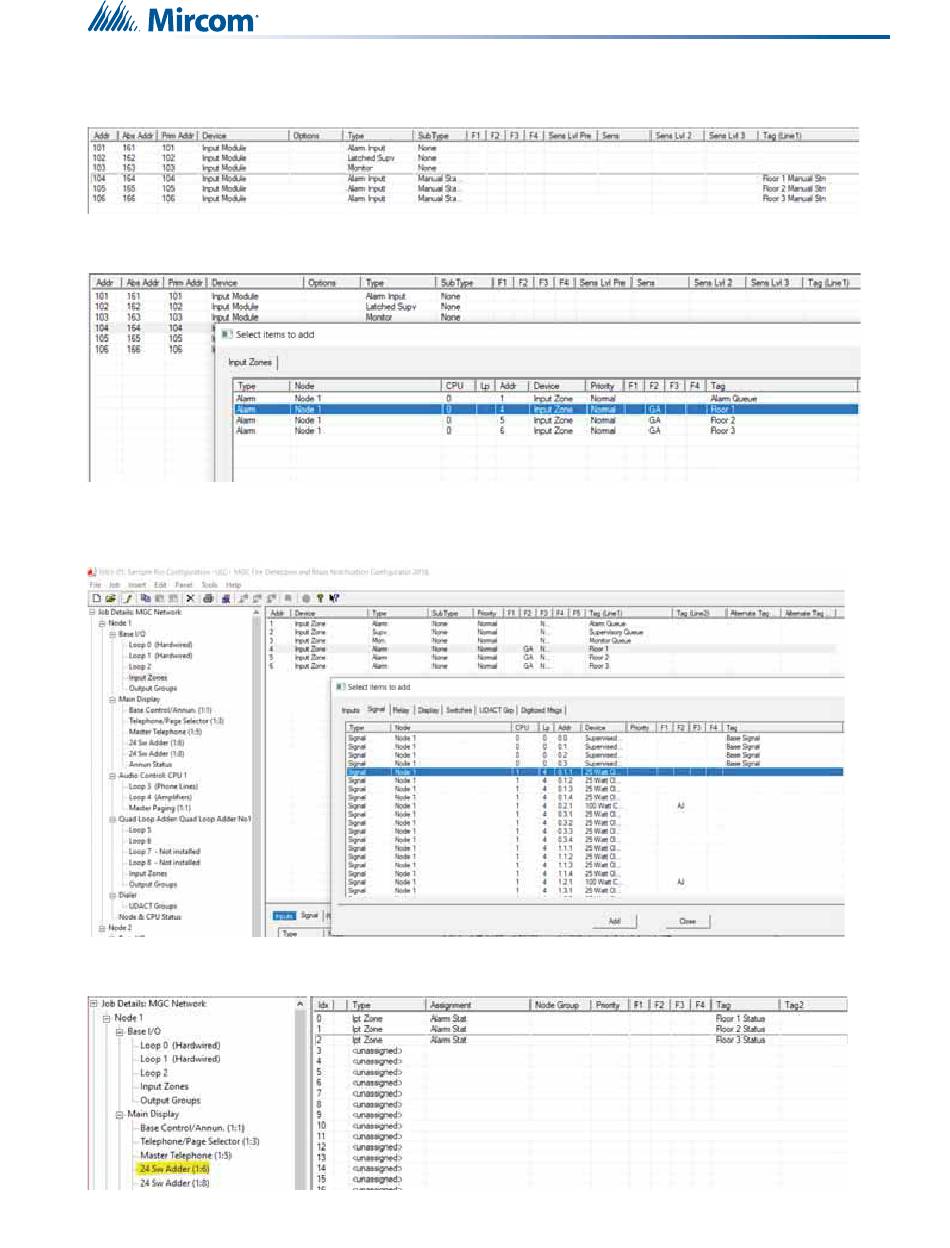

Add 3 Manual Stations to Loop 2. Sample shown below.
Then, correlate the manual stations to their respective input zones.
Next, correlate input zones to signals (amplifier circuits) based on your physical configuration. Below is an
example:
Next, assign 3 LED display points to indicate the Alarm statuses of the 3 input zones.
