Analog Relay Wiring

5.6.1 Relay Module (RM-1008A) Terminal Connections
Relays are available as shown below.

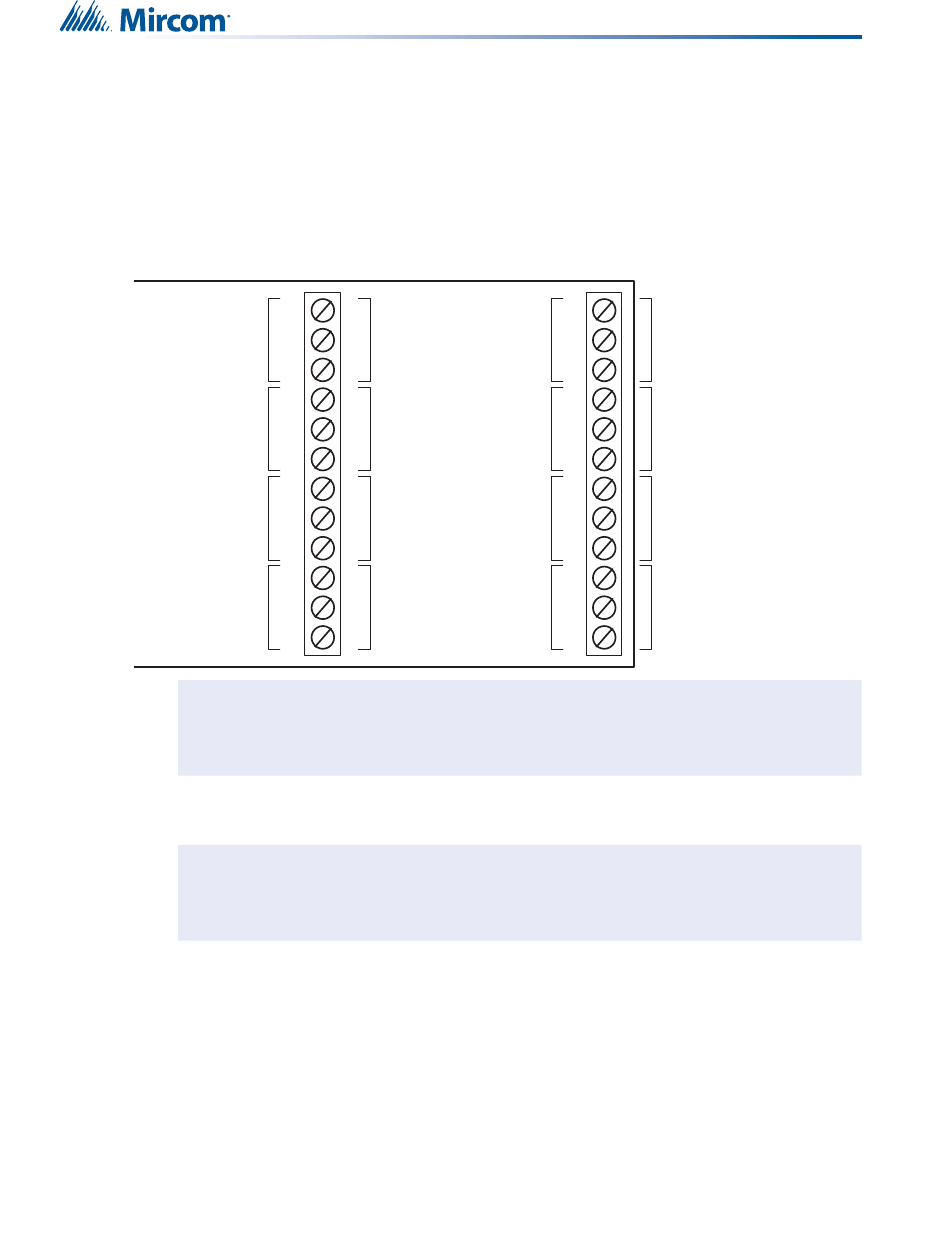

Figure 40 Hardwire Relay Module Terminal Connections

RLY 5
RLY 6
RLY 7
RLY 8
i
Note:
!
Attention: Do not connect any voltage greater than 30 VAC directly to these relays.
53
RM-1008A Relay Module
AUX RELAY 5
COM
CONTACTS
NC
28 VDC, 1 AMP
RESISTIVE LOAD
NO
AUX RELAY 6
COM
CONTACTS
NC
28 VDC, 1 AMP
RESISTIVE LOAD
NO
AUX RELAY 7
COM
CONTACTS
NC
28 VDC, 1 AMP
RESISTIVE LOAD
NO
AUX RELAY 8
COM
CONTACTS
28 VDC, 1 AMP
NC
RESISTIVE LOAD
NO
All relay circuits are power limited and must use type FPL, FPLR, or FPLP power
limited cable.
All relay circuits must be connected to a listed power limited source of supply.
