Dspl-420Ds Main Display Module; Figure 10 Main Fire Alarm Module; Figure 11 Dspl-420 Main Display Module (Part Of Main Chassis C/W Main Fire Alarm Module) - Mircom FLeXNet FX-MNS-6000 Installation And Operation Manual

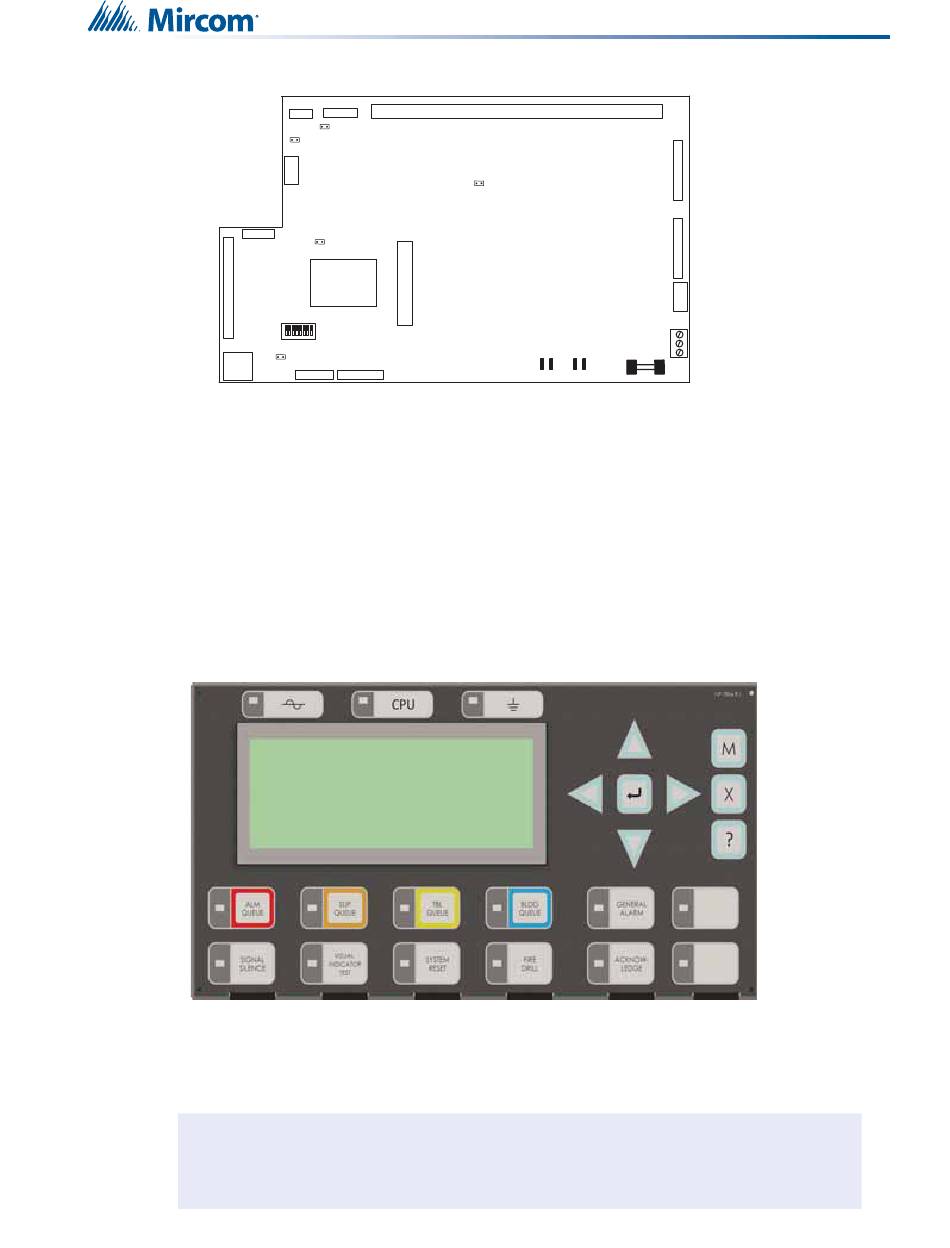

Figure 10 Main Fire Alarm Module (MD-871A"N" Version Main Board.
P9
P14
SW2
1
P7
4.1.1 SW2 DIP Switch Node Address Setting on Main Fire Alarm Module
Refer to table in Appendix for Node Address Setting. Available addresses are 1 to 63. DIP
Switch SW2-1 is the least significant digit.
4.2

DSPL-420DS Main Display Module

The DSPL-420DS mounts onto inner door of the BBX-FXMNS-6000. This display is part of the
following main fire alarm chassis: FX-6000MNS-CH.
Figure 11 DSPL-420 Main Display Module (Part of Main Chassis c/w Main Fire Alarm
Module)
P1: Cable connects to P14 of the main fire alarm board (Figure 10).
P2: Connection to P1 of any adder display module if used.
i
The main display module comes with slide-in paper labels including both English
Note:
and French slide-ins, and laser printer-compatible blanks for zone labelling.
P3 P4
FIELD WIRING TERMINALS
JW1
JW5
P16
MAIN FIRE ALARM BOARD
JW4
P19
ON
8
JW2
J1
P15
P5
JW6
P6
P8
P2 P1 P10 P11
NAC PWR
+ BR - +BAT -
F1
