2.0

System Components

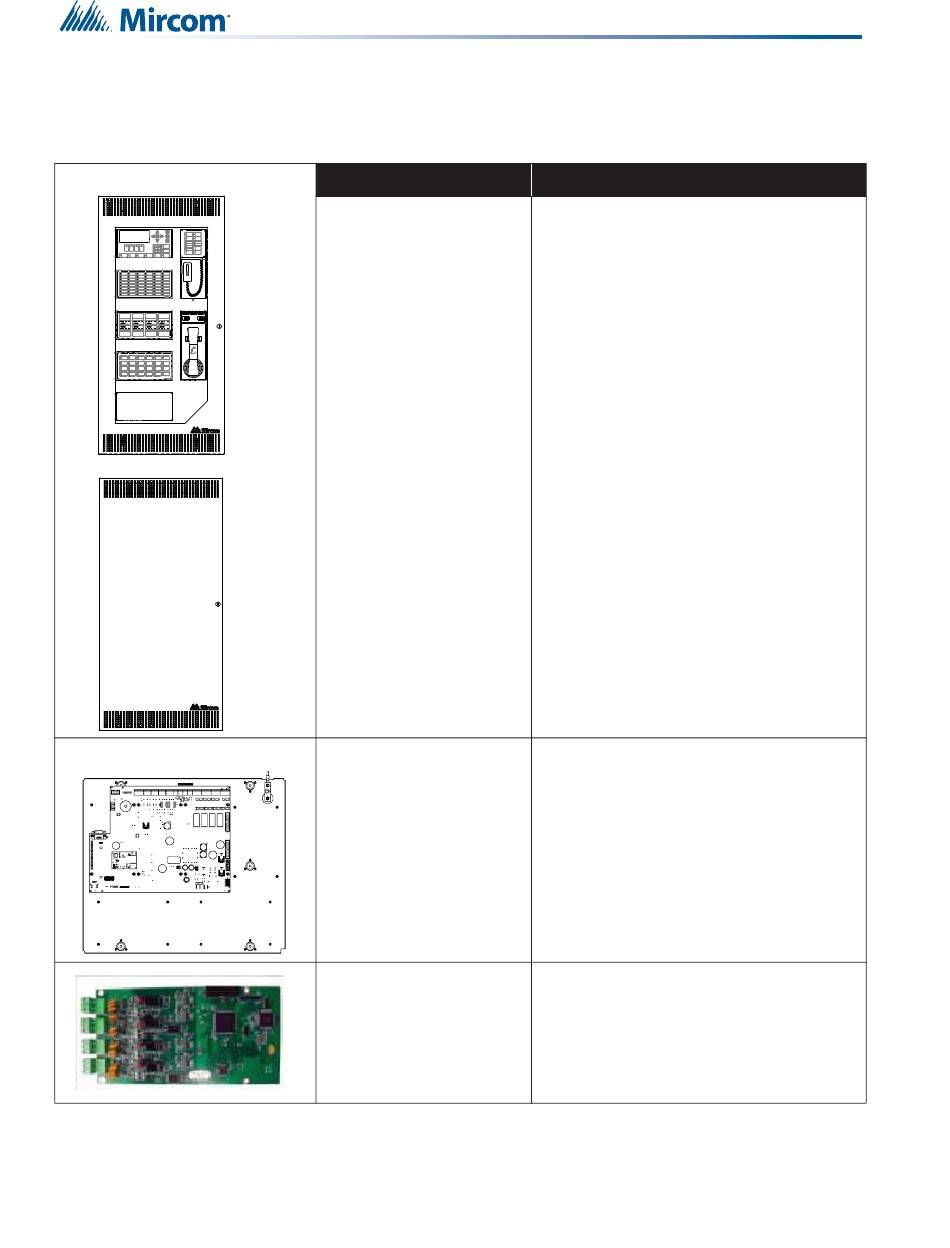

Table 1:
7
FX-6000MNS System Components
Model
BBX-FXMNS-6000
Enclosure
QBB-6001 Audio
Expansion Enclosure
FX-6000MNS-CH
FNC-2000
Description
Each FX-MNS-6000 integrated fire and
audio network panel consists of a BBX-
FXMNS-6000 enclosure which contains an
audio portion QMB-6000 card cage that
holds up to 4 amplifiers and a QCC-6000
Communications Card, a fire alarm portion
FX-6000MNS-CH Main Chassis, which
holds the main fire alarm control board, an
ANC-6000 Audio Network Card, a TNC-
5000 Telephone Network Card and a QPS-
6650 power supply, and batteries. The
QBB-6001 expansion audio cabinet
(connected to an FX-MNS-6000 node)
contains up to a maximum of two QMB-
6000 card cages which holds up to 4
amplifiers each for a total of 8 amplifiers,
one QCC-6000 Communications Card, a
QPS-6650 power supply and batteries.
Consists of a backplate which is mounted
into the BBX-FXMNS-6000 backbox and a
main Fire Alarm Control board. This
backplate can accommodate up to 10
adder modules (including 3 controller
modules).
The Fire Alarm Control board includes one
SLC and four Class A/B NACs.
Provides network capability for the main
Fire Alarm Control board. One module is
required per one network node panel. The
FNC-2000 Fire Network Controller module
is mounted in position 2 over the main fire
alarm control board.
