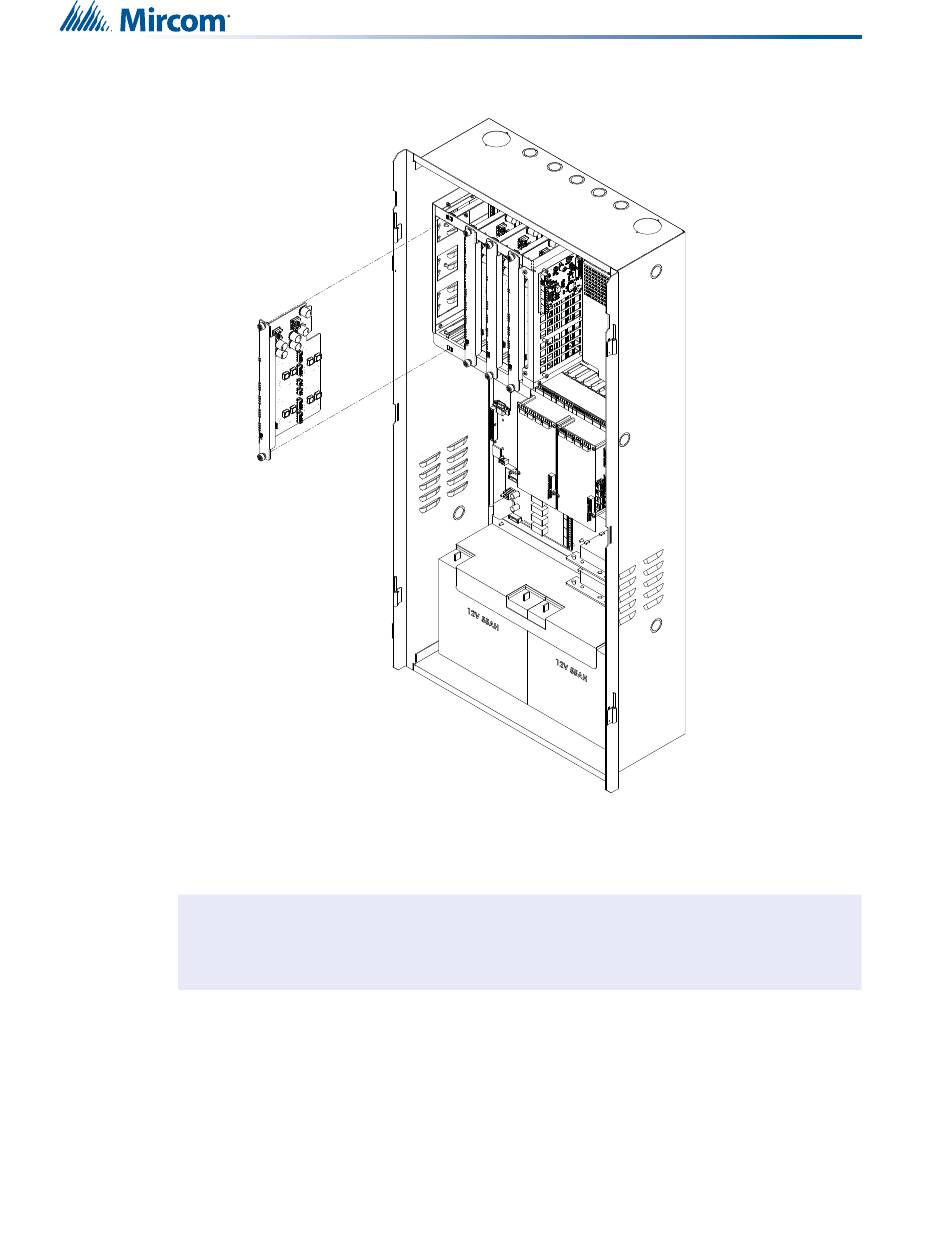

Figure 64 Installing the Amplifiers into the QMB-6000 Card Cage
The QMB-6000 card cage provides the terminals for the amplifier field wiring. There are 4 slots
for the amplifier cards, and 4 sets of terminals for the speaker wiring. Figure 65 shows the
correlation between the slots for the amplifier cards and the terminals for the speakers.
i
Slot 4 is reserved for the backup amplifier.
Note:
83
