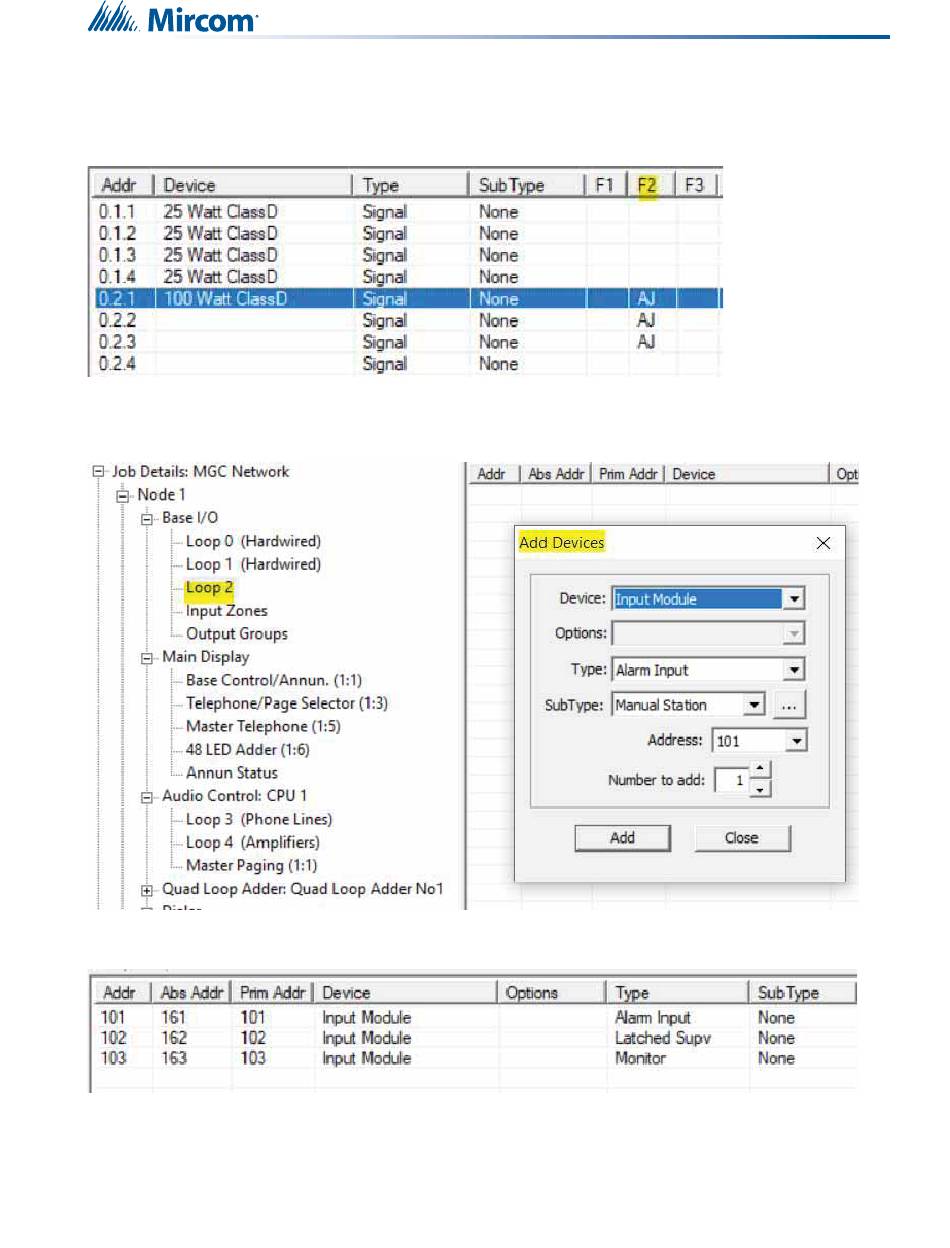

Appendix I: Configuration Example Setup
Different wattage combinations can be achieved by properly setting the AJ flag in F2 column.
Note: If the F2 column is hidden you can expand the line between F1 and F3 to reveal column 2.
Add the following input devices to the configuration by right clicking on Loop 2 and adding the following input
types:
Here are the input devices that we added for the particular hardware setup
At this point, all the physical hardware configuration is captured.
125
