4.14 UDACT-300A MAIN BOARD

There are two jumpers on the UDACT-300A which are used for operation/configuration
purposes. Jumper JW1 is used to reset the default passcode. Jumper JW2 is required for
configuring (which can be done using the FX-2000N Configurator Software) the UDACT-300A.
Refer to Figure 25 below for location of jumpers, cable connections, pushbutton and LEDs.
Table 8 following, provides a description of the user items on the UDACT-300A.

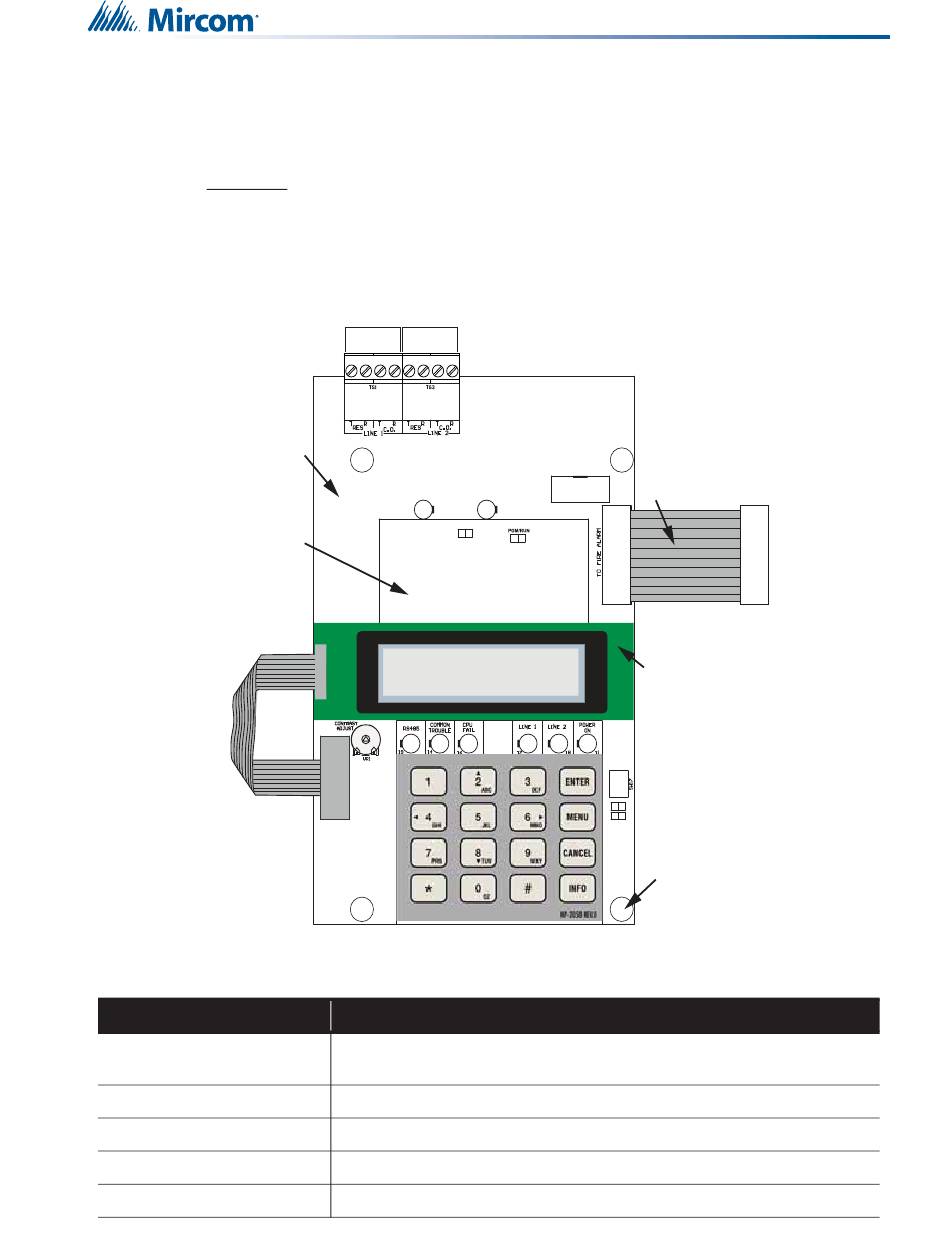

Figure 25 UDACT-300A Board Layout

MAIN BOARD
CORE BOARD
Table 8:
Cable Connector
P1
P2
U18
Lamp Test button
UR1 Potentiometer
TELEPHONE LINE CONNECTIONS
LINE 1 LINE 2
RES C.O. RES C.O.
T R T R T R T R
RELAY LINE 2
RELAY LINE 1
JW4
(leave closed)
UDACT (Prot-1) Idle
20:00 MON
UR1
U18
UDACT-300A Cable Connectors and Miscellaneous
Function
Ribbon Cable for connecting to P4 of FX-2000N main fire alarm module
or to P2 header on the PR-300 if used.
RS-232C/RS-485 Connection for computer configuration.
Connector for CFG-300 Configuration Tool
Press and hold this button to test all the UDACT-300A LEDs
This potentiometer is for adjustment of the CFG-300 LCD contrast.
CONNECT RIBBON CABLE
P2
FROM P1 TO FIRE ALARM
TO UIMA
CONTROL PANEL
JW5
P1
(leave open)
CFG-300 CONFIGURATION TOOL
MOUNTED MAGNETICALLY TO
ANY METAL SURFACE
2021-06-10
LAMP TEST
JW2
JW1
MOUNTING HOLES (4)
