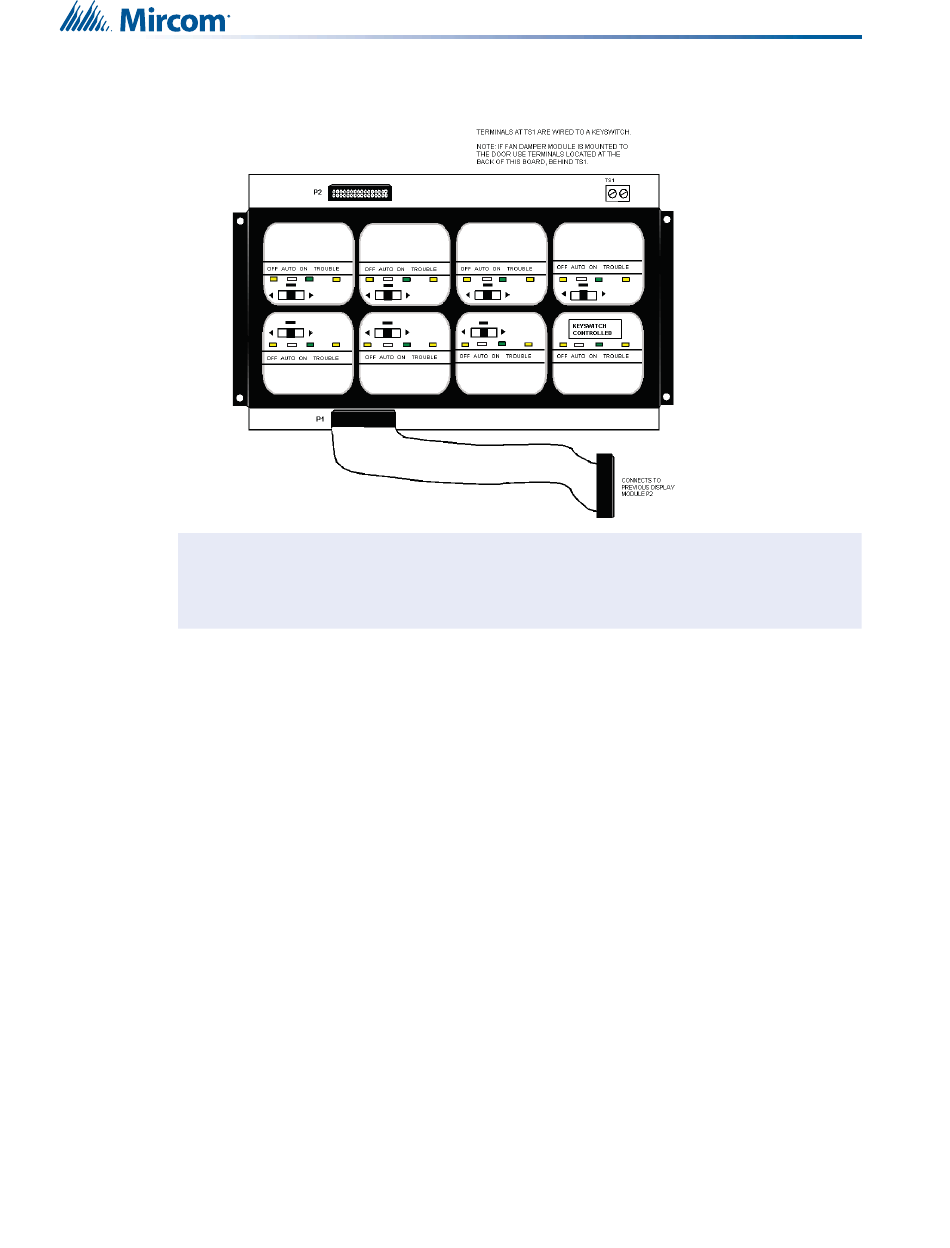

Figure 20 FDX-008WKI Fan Damper Control Display Module

i
Note:
4.9.3 UUKL with FDX-008W and FDX-008WKI
The models FDX-008W and FDX-008WKI can be effectively used to provide an automatic and
manual control system for smoke. Refer to document number LT-966 for extensive instructions
regarding UUKL applications.
31
There are also terminals located behind TS1 on the other side of the board for
the convenience of wiring the keyswitch. The last fan damper zone in the bottom
right position of the FDX-008WKI is controlled by the keyswitch
