UDACT-300A Main Board Terminal Connections

Wire the two telephone lines to RJ31X Connector terminals as shown in Figure 42 below. The
UDACT-300A terminals are located on the top left hand corner of the board.
i
Note:

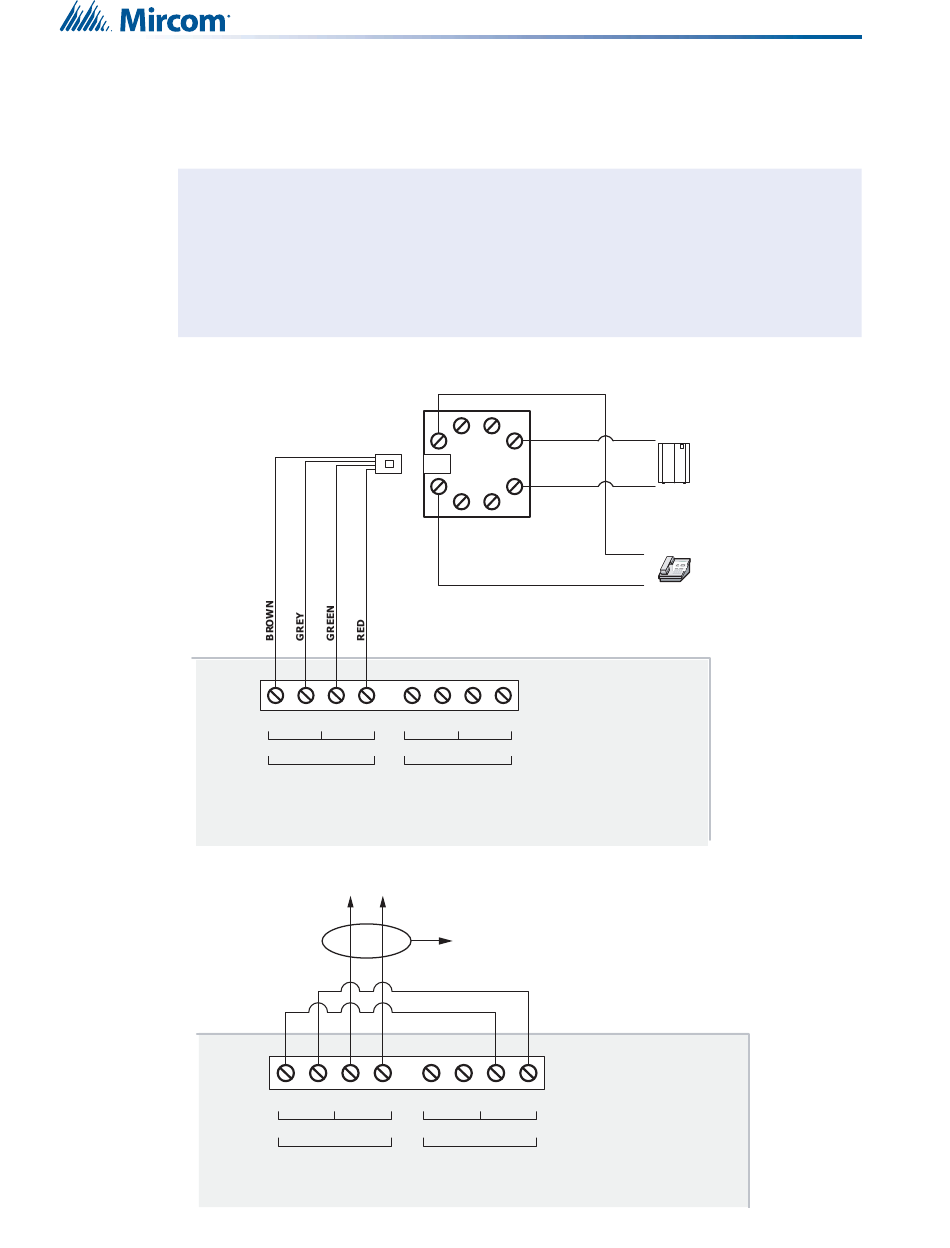

Figure 42 Telephone Line Wiring Diagram

For wireless report, connect as below:
55
For two wired telephone lines see figure below. For combination wired and
wireless, refer to UDACT-300A manual LT-888.
To comply with UL 864 9th edition "Other Transmission Technologies" or
UL 864 10th edition "Performance Based Technologies", wire as shown in
figure below.
Most Authorities Having Jurisdiction (AHJ) do not allow the connection of
premise telephones, see specifications for more information.
1
8
Both lines must be connected.
Wire Line 2 the same as Line 1.
T R T R T
RES C.O. RES
LINE-1 LINE-2
UDACT-300A
To DSC Interface Device
T R T R T
RES C.O. RES
LINE 1
UDACT-300A
4
2 3
7 6
5
RJ31X
R T R
C.O.
Telephone line voltage must be
between 10 VDC and 55 VDC
R T R
C.O.
LINE 2
TIP
RING
Public switch
Telephone company
wiring
TIP
RING
premise telephone
IF permitted
