FDX-008W(KI) Fan Damper Control Display Module

There are two models of the Fan Damper Control Display modules available. The FDX-008W
provides switch control and LED indication of 8 fan damper zones. The FDX-008WKI provides
switch control of 7 fan damper zones with the eighth zone activated by keyswitch. LED
indication is provided for all 8 fan damper zones on the FDX-008WKI. Both the FDX-008W
and the FDX-008WKI are used in conjunction with a FleX-Net

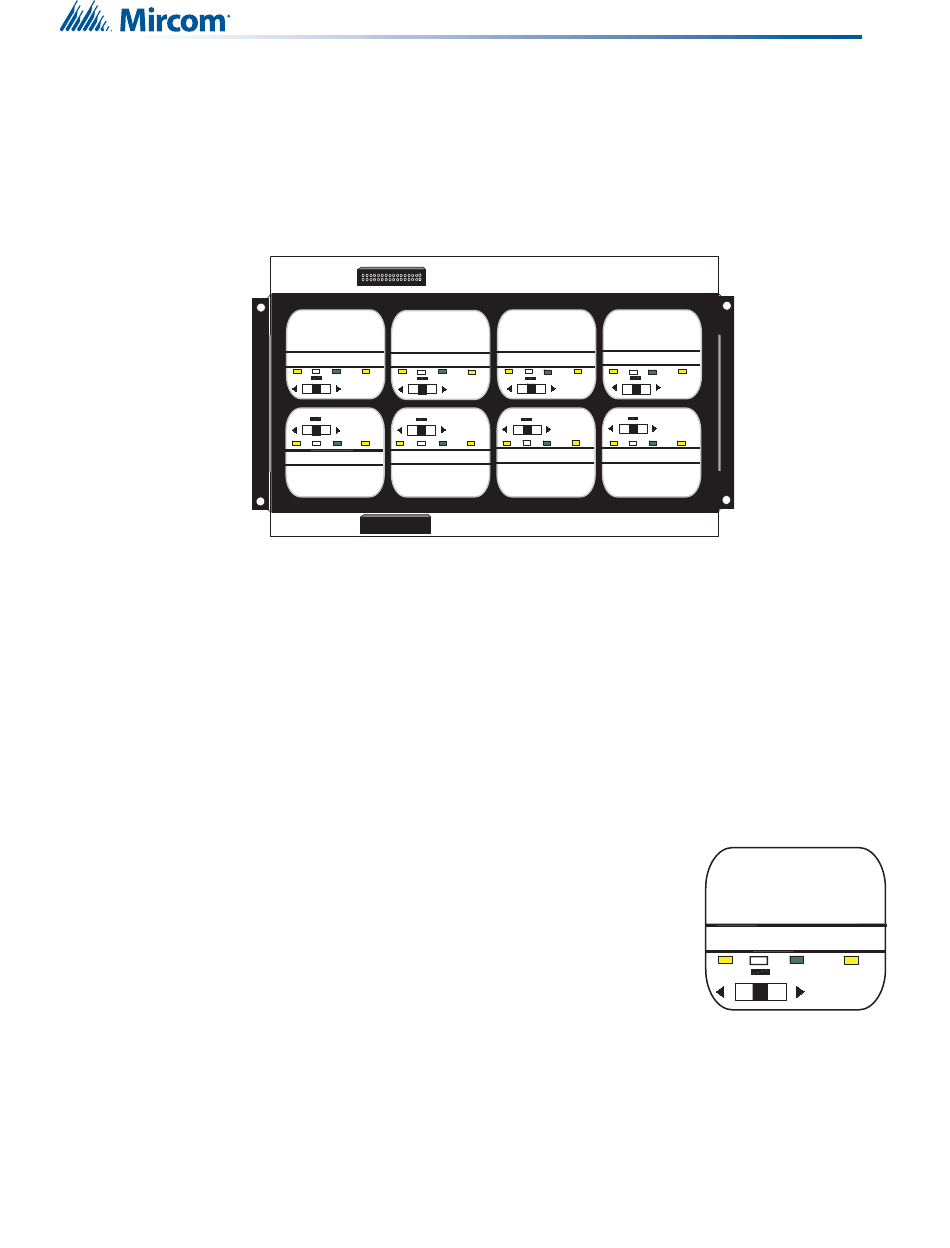

Figure 18 Fan Damper Control Display Module (FDX-008W(KI))

4.9.1 Fan Damper Operation
The FDX-008W Fan Damper Control Display module has eight configurable output circuits,
each with a three position switch. The FDX-008WKI operates in the same manner as the FDX-
008W except zone 8 is controlled by a remote keyswitch. Each switch has an ON and OFF
position, plus an AUTO position. If the switch is placed in the AUTO position, the white AUTO
LED will illuminate steady and the output will activate as programmed or configured. The
output can be manually turned ON or OFF by placing the switch in the ON or OFF position,
respectively.
Basically each switch can be configured to operate multiple fans or dampers. For each switch,
there are 3 operations provided; outputs to turn ON, same outputs to turn OFF and inputs to
bypass.
An example of the most common use of the FDX-008W or FDX-008WKI Fan Damper Control
Display module is to operate exhaust fans and confirm fan operation (via monitor modules).
See Figure 19 on the next page for a block diagram of fan and monitor set up.
4.9.2 Example
As shown in the figure to the right, Parking Garage #1 has 3
exhaust fans. The three position switch is configured to operate
(to turn ON) fans 1, 2 and 3 in stairwell #1. The switch is set in the
AUTO position (white AUTO LED on steady). Upon activation (via
alarm or some other programmed trigger) with the switch in
AUTO, the 3 fans (1,2, and 3) in stairwell #1 are turned ON
automatically. Monitor modules in the Parking Garage #1 detect
that all 3 fans are operating, therefore the ON LED will illuminate
steadily. If one of the fans did not turn ON (due to malfunction),
both the ON and OFF LEDs will flash at the slow trouble rate. The TRBL (trouble) LED will
illuminate steady amber based on feedback from the monitor module that one or more of the
fans is not working.
AUTO LED shows steady for switch in AUTO position.
ON LED shows steady for all outputs operating and confirmed.
OFF LED shows steady for all outputs NOT operating and confirmed.
TRBL LED shows steady for one or more outputs NOT operating and confirmed.
