3.2

QBB-6001 Expansion Audio Cabinet Installation

The QBB-6001 expansion audio cabinet may be surface mounted only. The QBB-6001
consists of the bacbox and door. Install all cabinets and enclosures empty. Pull all required
wiring in through the conduit holes provided (must be punched out). Do not mount the
modules until mechanical installation is complete and all wires have been fed into the cabinets
and enclosures.

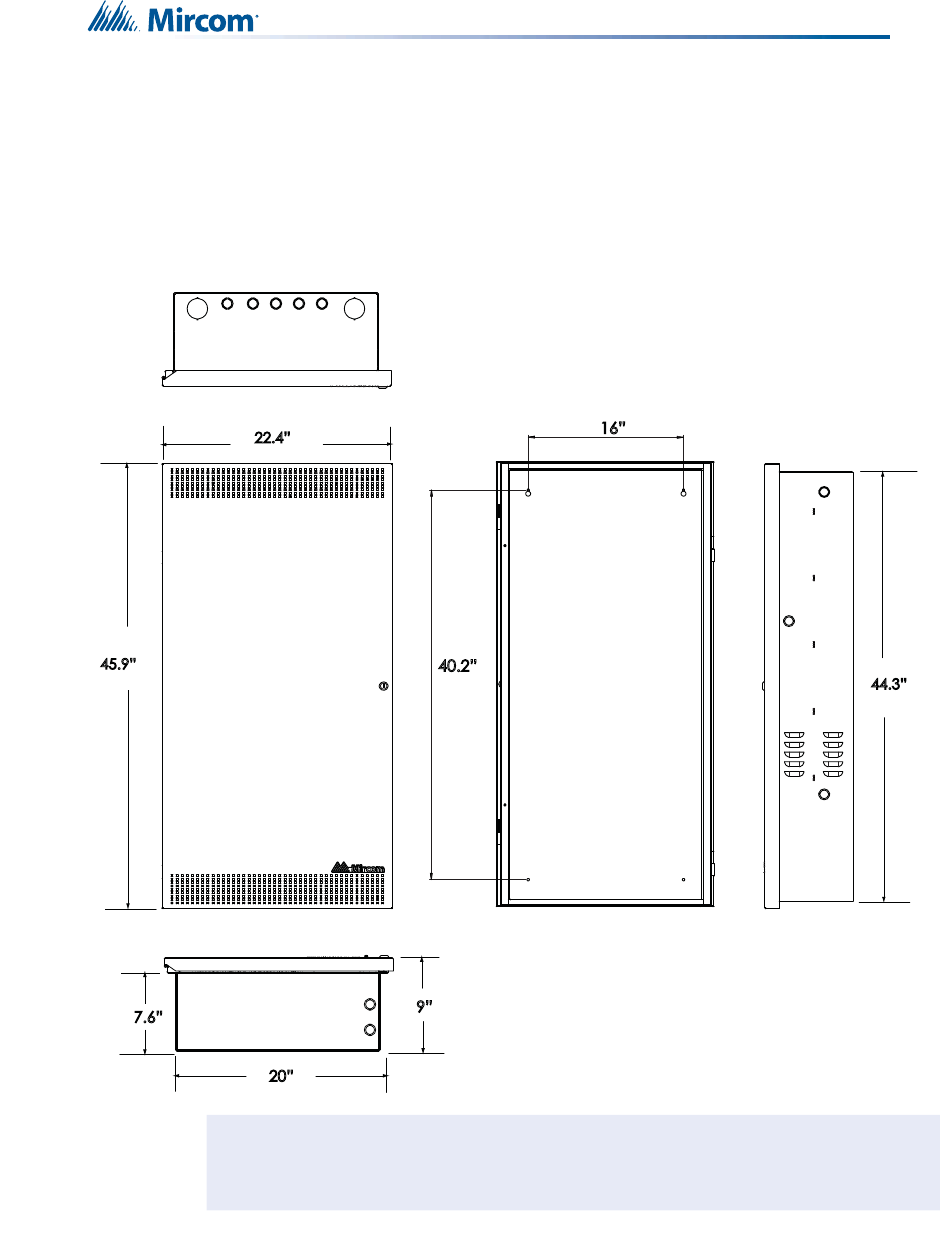

Figure 8
22.4"
45.9"
7.6"
20"
i
Note:
QBB-6001 Dimensions, Mounting Holes and Knockouts for Installation
40.2"
9"
It is extremely important to connect the audio cabinets earth-ground point (chassis
ground) to the earth ground. Conduits should be brought in only through the conduits
provided at both sides of the backbox.
16"
4 Mounting Holes as shown
44.3"
18
