4.4

FNC-2000 Fire Network Controller Module

An FNC-2000 Fire Network Controller module is required in each fire alarm node in the
system. The FNC-2000 also provides a connection for an optional FOM-2000-UM Fiber Optics
Module.

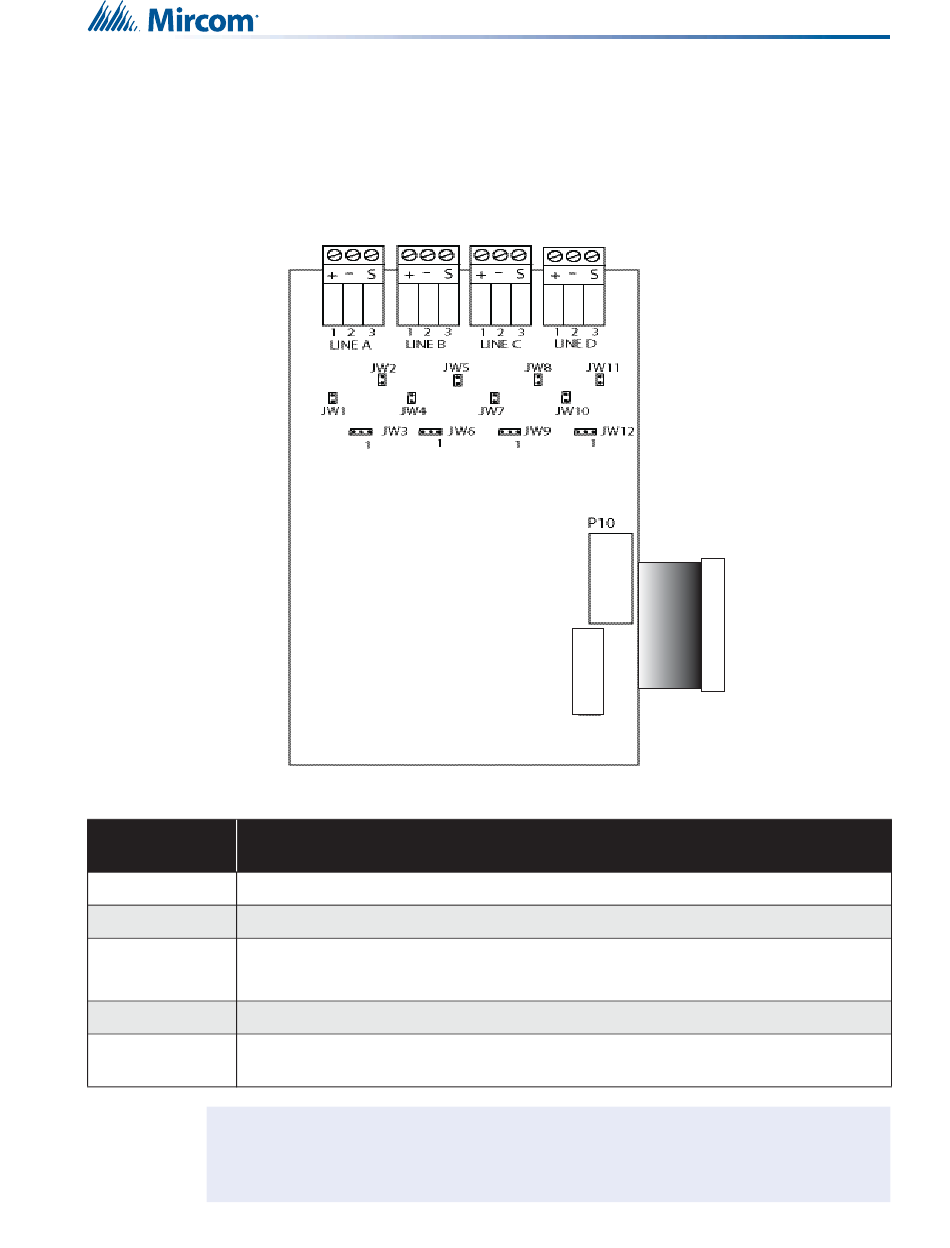

Figure 13 FNC-2000 Fire Network Controller Module

Table 2:
CONNECTOR or
JUMPERS
P8 is for Factory Use Only.
P8
P10 connects to P1 of the FOM-2000-UM Fiber Optic Network Adder Module if used.
P10
Jumpers for JW1, JW4, JW7, and JW10 equal Line Termination (always short).
JW1, JW2, JW4,
JW7, JW8, JW11
Jumpers for JW2 and JW8 equal Ground Fault (always short).
Leave both un-installed. Do not connect JW5 or JW11 (open)
JW5 and JW11
Jumpers for JW3, JW6, JW9, JW12 shall be present between pins 2 and 3 (far left) and
JW3, JW6, JW9,
remain as is.
JW12
i
Note:
FNC-2000 Module List of Connectors and Jumpers and Functions
Network connection is through twisted cable from Line A, B, C and D. Refer to
Figure 36 for specific wiring and cable information.
P8
Functions
This cable
connects to
P19 on the
Main Fire Alarm
Board
24
