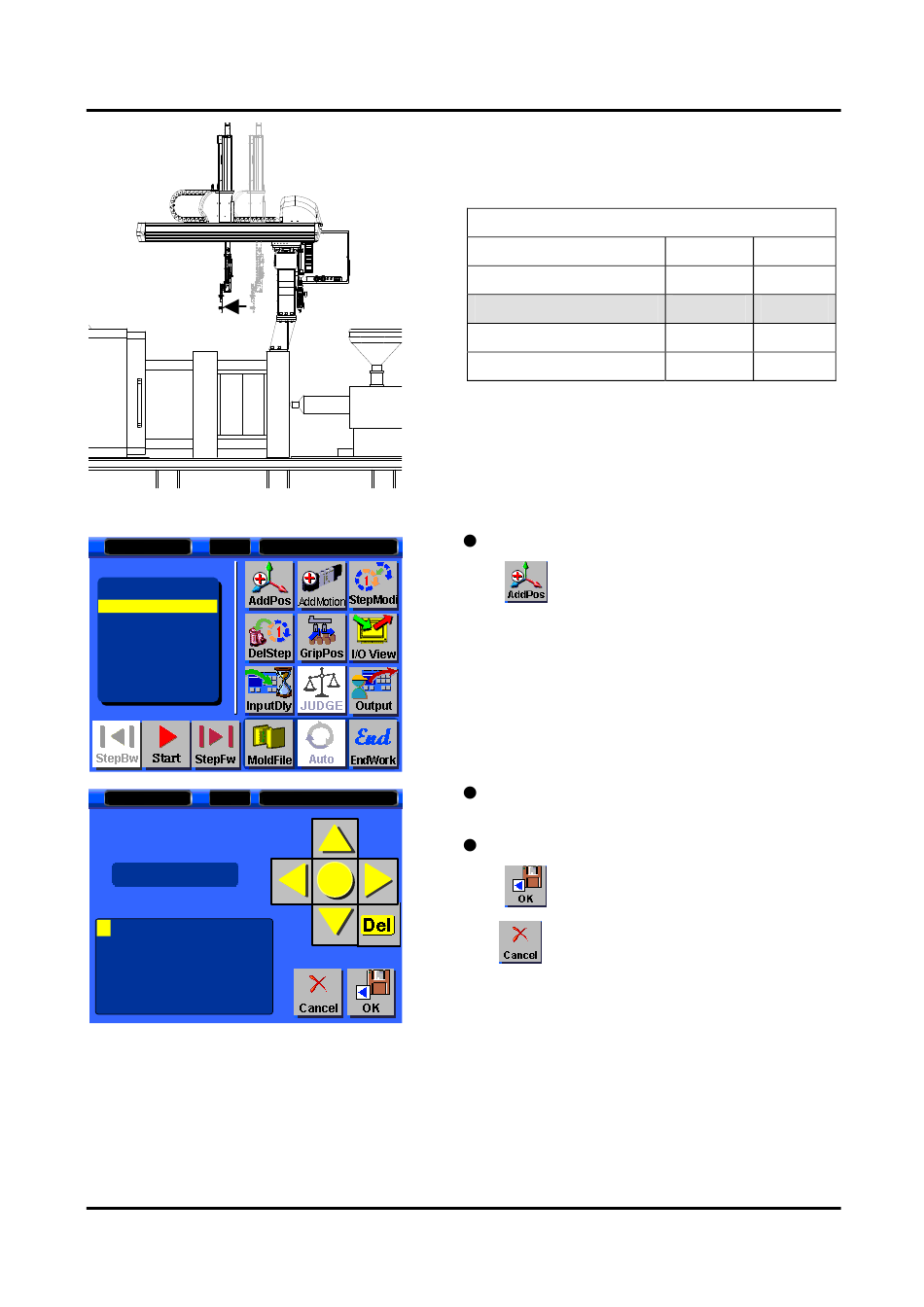

HYRobotics NEXIA-SY Series User Manual page 81

P1 P1
StepSet 2
NO S T E P
1 WaitPos
2 TkPos
3 AscPos
4 RelPos
InputPos 2 Mold: W1
PosName
P1
1 2 3 4 5 6 7 8 9 0
A B C D E F G H I J
K L M N O P Q R S T
U V W X Y Z . - □ ←
P1 P0
Mold: W1
ENT
Position
Each axes
Traverse
Main Arm Kick/Return
Main Arm Up/down
Rotation
STEP 1
Press , move to Position Name setting
screen. ( This will allow operator to remember
each step ' s position )
STEP 2
Use arrow to select text. And Press ENT to input text
STEP 3
Press , move to position setting screen.
Press , to cancel go back to mold setting
screen.
NEXIA-SY Series User Manual 63
4. Operation
P0 P1
0 mm 0 mm
0 mm 100 mm
0 mm 0 mm
OFF OFF
