4. Operation

4.6 Mold File

(1) Description
This creates, opens and copies Mold File, changes Mold File name, and changes jig.

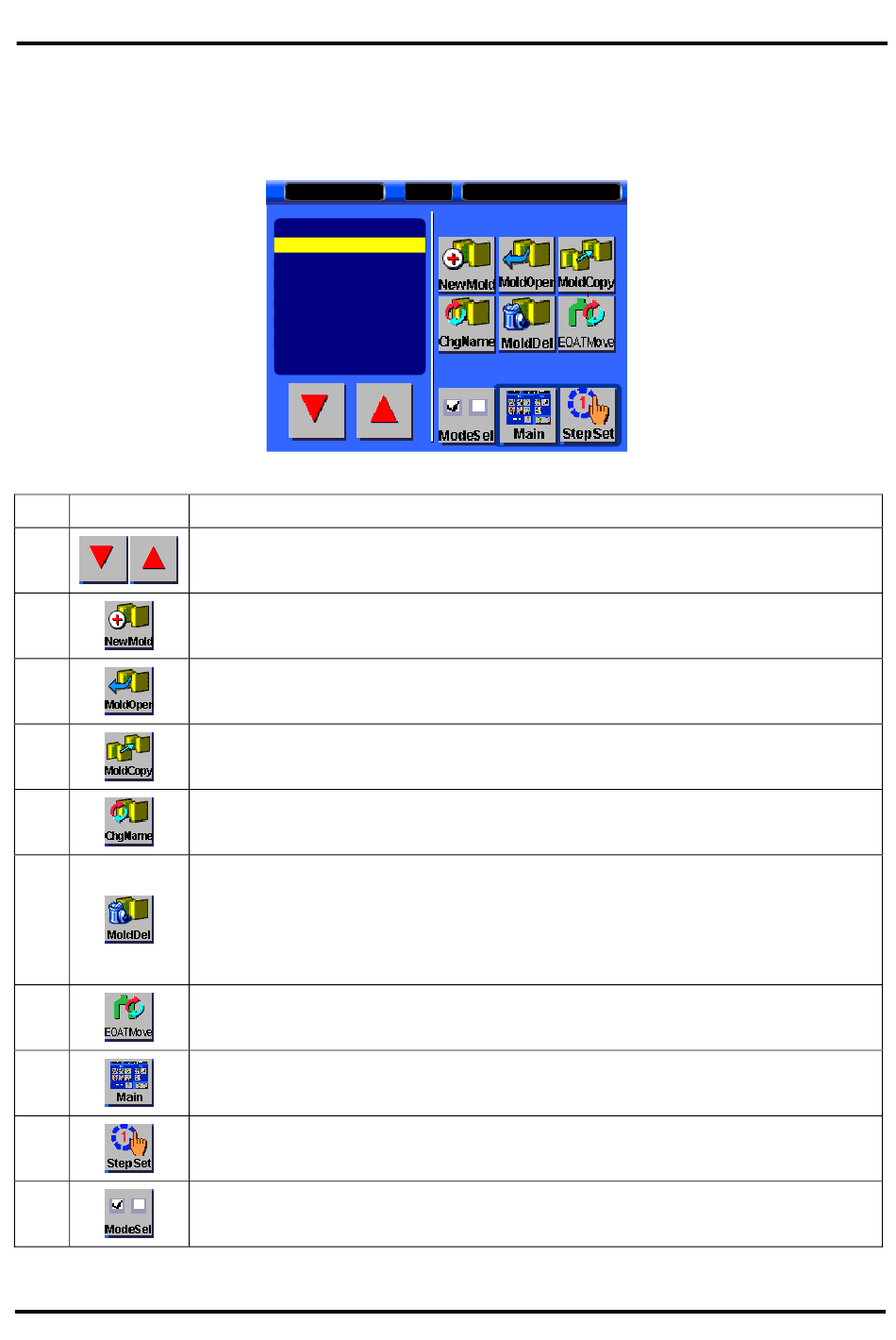

(2) Button Fuction
NO
Button
1
2
3
4
5
6
7
8
9
10
46 NEXIA-SY Series User Manual
MoldFile
NO
Mold
1
COCK
1
COCK
2
W1
3
CUP
4
ANYCALL
5
CASE1
6
MATIZ
Selects Mold File by moving focus up and down.
Moves to New Mold screen which creates new mold.
Opens Mold File where focus is located.
Moves to Mold Copy screen which copies data of Mold File where focus is
located.
Moves to Change Name screen which changes name of Mold File where focus
is located.
Cancels Mold File.
Pressing cancel button displays a message [cancel mold name?], and [yes]
cancels it and [no] does not cancel it.
In case [YES] or [NO] is pressed, message window disappears.
Moves to EOAT Change screen which changes jig.
Moves to Main screen.
Moves to Step Setup screen.
Move to Mold Select screen
