5.11 Step Operation

StepSet 2
NO S T E P
1 WaitPos
2 TkPos
3 AscPos
4 RelPos
StepSet 2
NO S T E P
1 WaitPos
2 TkPos
3 AscPos
4 RelPos
StepSet 2
NO S T E P
1 WaitPos
2 TkPos
3 AscPos
4 RelPos
Mold: W1
Mold: W1
Mold: W1

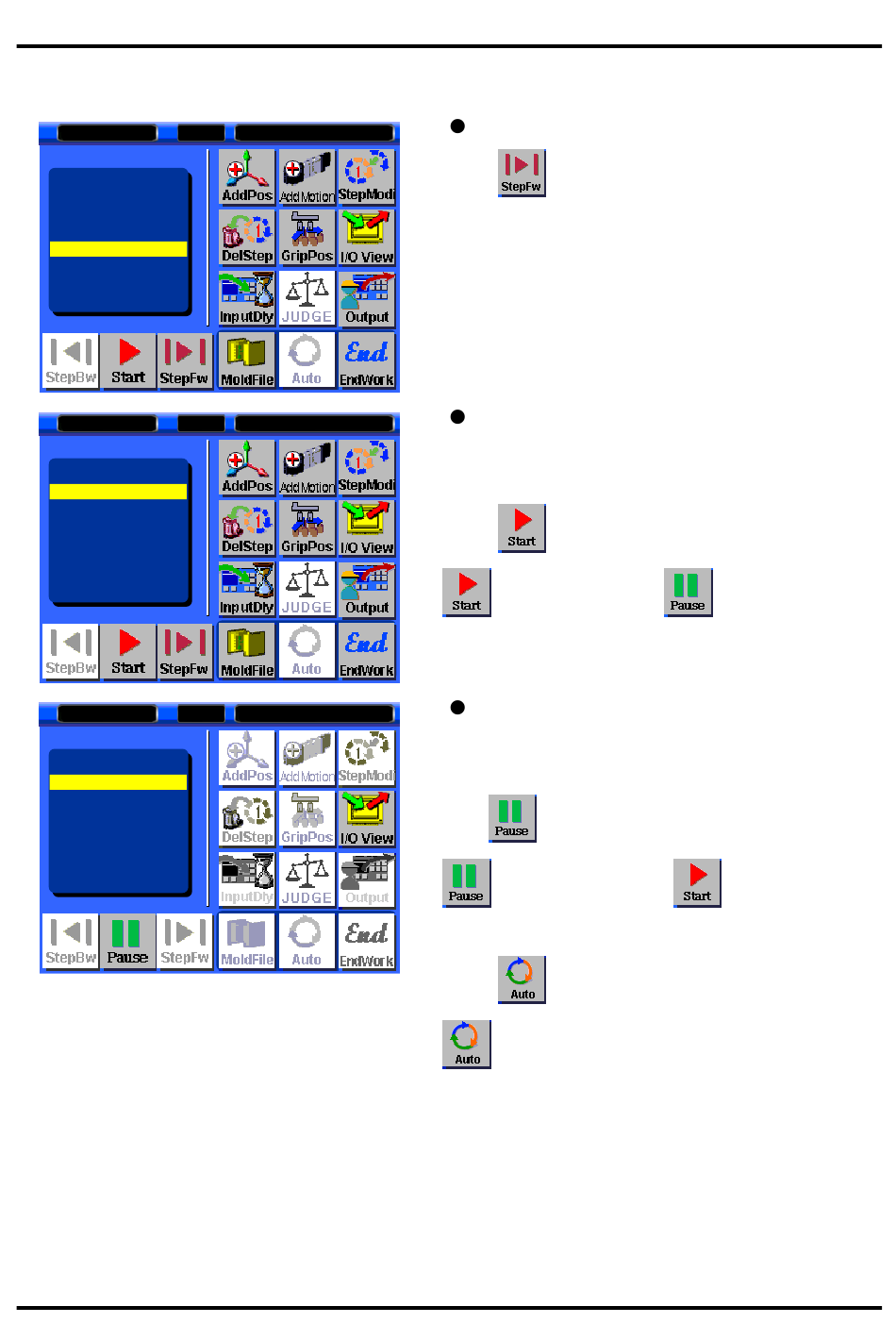

STEP 31
Press to run robot go to next step.
After RelPos set up, press StepFw will finish one
cycle and go back to first cycle.
STEP 32
Run Step by Ste to confirm all position and setting
is right.
Press will run step with slow speed.
will be changed to
STEP 32
During Step operation
Press will stop operation
will be changed to
Press to run in Fully Automatic Mode
will not activate until finish the 1 step
operation ( after change mold, or reboot system )
