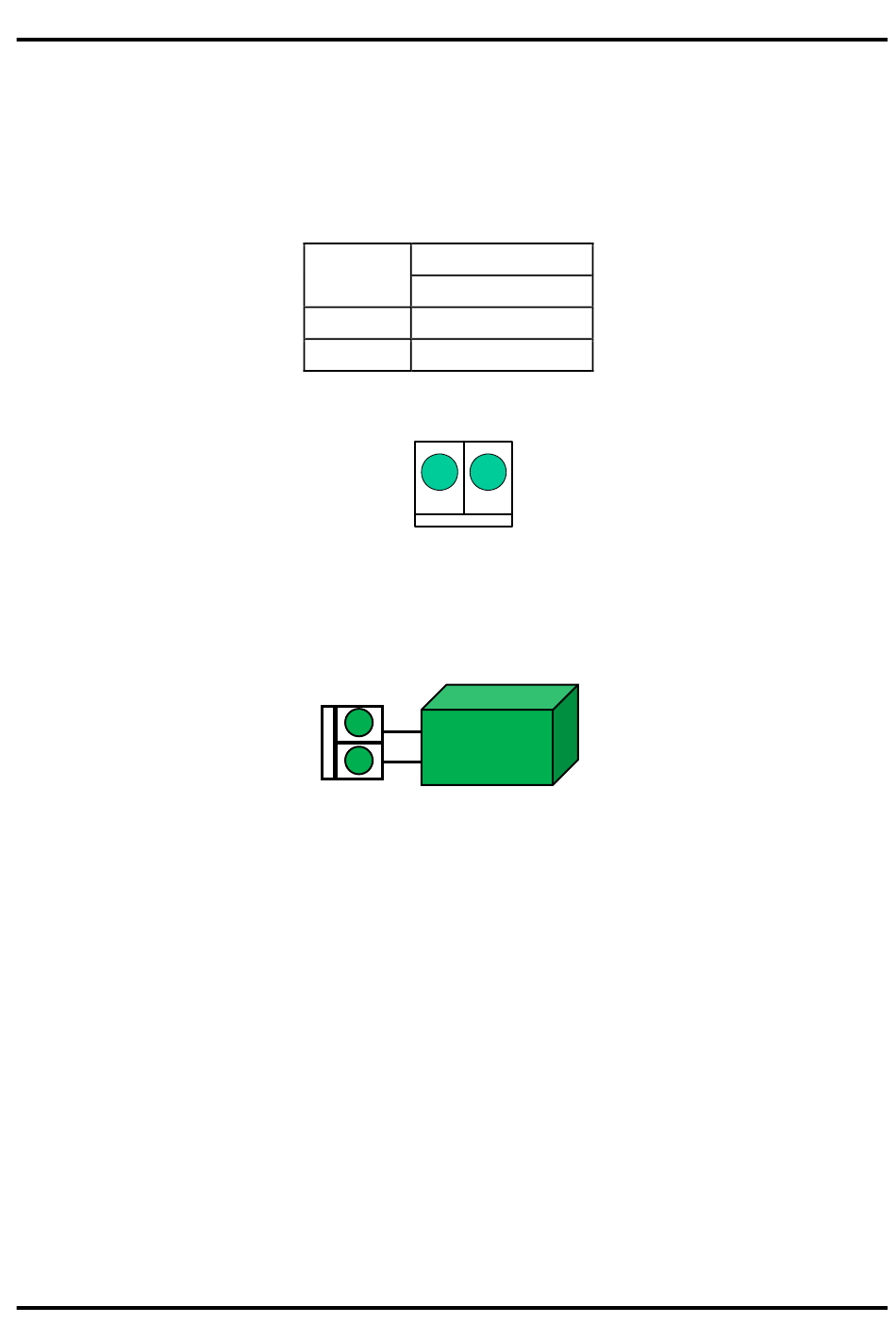

FAN Installation (J20, Molex 2P)
■ When TP ( Touch Panel ) is on , Fan is always ON.
■ Connector No and Pin No
■ Connector Pin No.
■ If FAN is for DC Voltage, connect directly , if FAN IS FOR AC Voltage connect
through external relay.
FAN Name
Pin No
Connector J20
41
+24V
2
FAN
1
2
2
- FAN
+Relay Coil
1
NEXIA-SY Series User Manual 163
Appendix
