H.5 Middle Board Connector

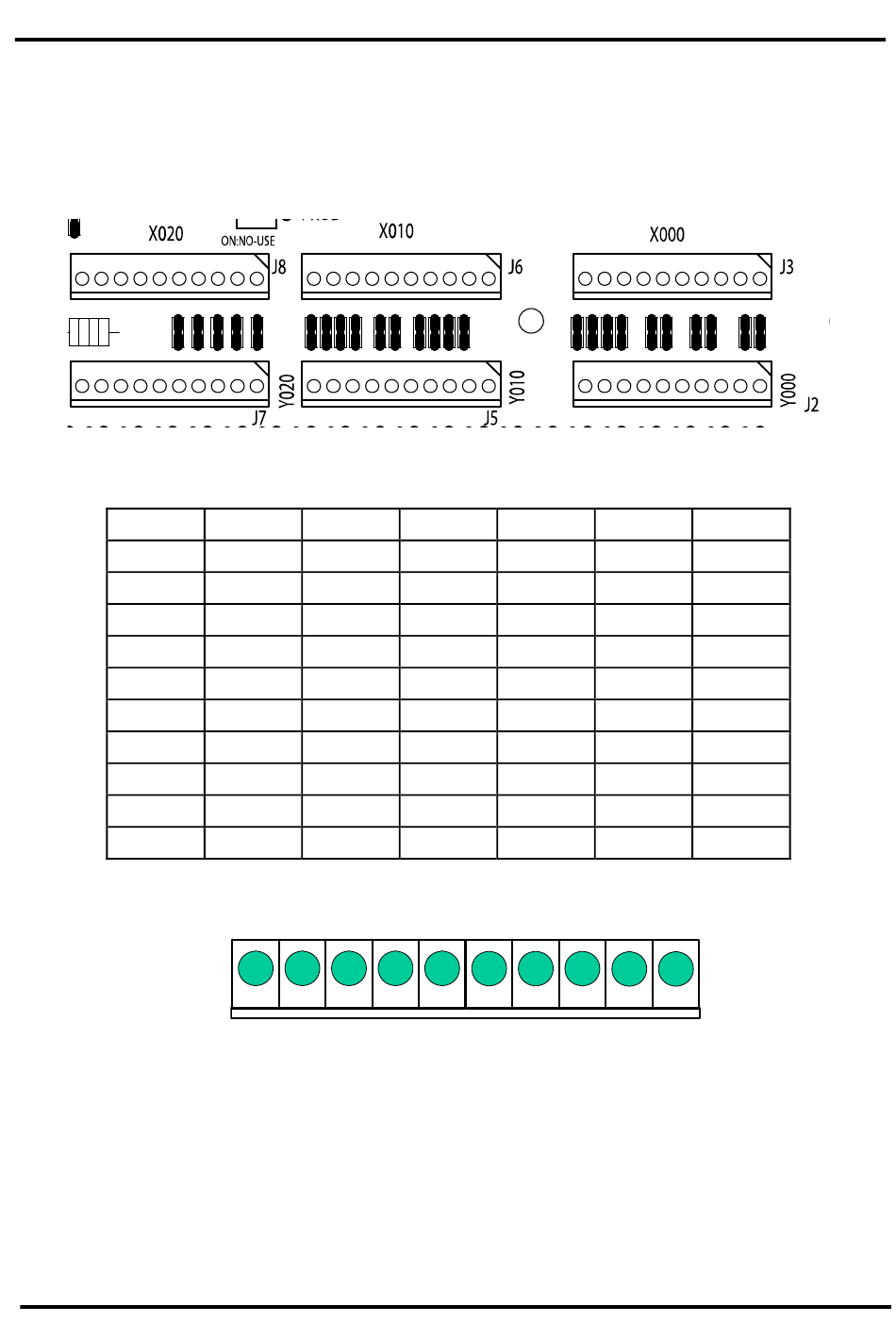

Middle Board Connector J2, J3, J5, J6, J7, J8
■ Connection middle board to X000, Y000, X010, Y010, X020, Y020 1 :1 connection
■ Connector Number
Pin No.
01
02
03
04
05
06
07
08
09
10
■ Connector Pin No.
160 NEXIA-SY Series User Manual
J3 J6
X000 X010
X001 X011
X002 X012
X003 X013
X004 X014
X005 X015
X006 X016
X007 X017
X008 X018
X009 X019
10 9 8 7
J8 J2
X020 Y000
X021 Y001
X022 Y002
X023 Y003
X024 Y004
미사용 Y005
GND Y006
GND Y007
P24V Y008
P24V Y009
6 5 4 3
J5 J7
Y010 Y020
Y011 Y021
Y012 Y022
Y013 Y023
Y014 Y024
Y015 Y025
Y016 Y026
Y017 Y027
Y018 Y028
Y019 Y029
2 1
