4. Operation

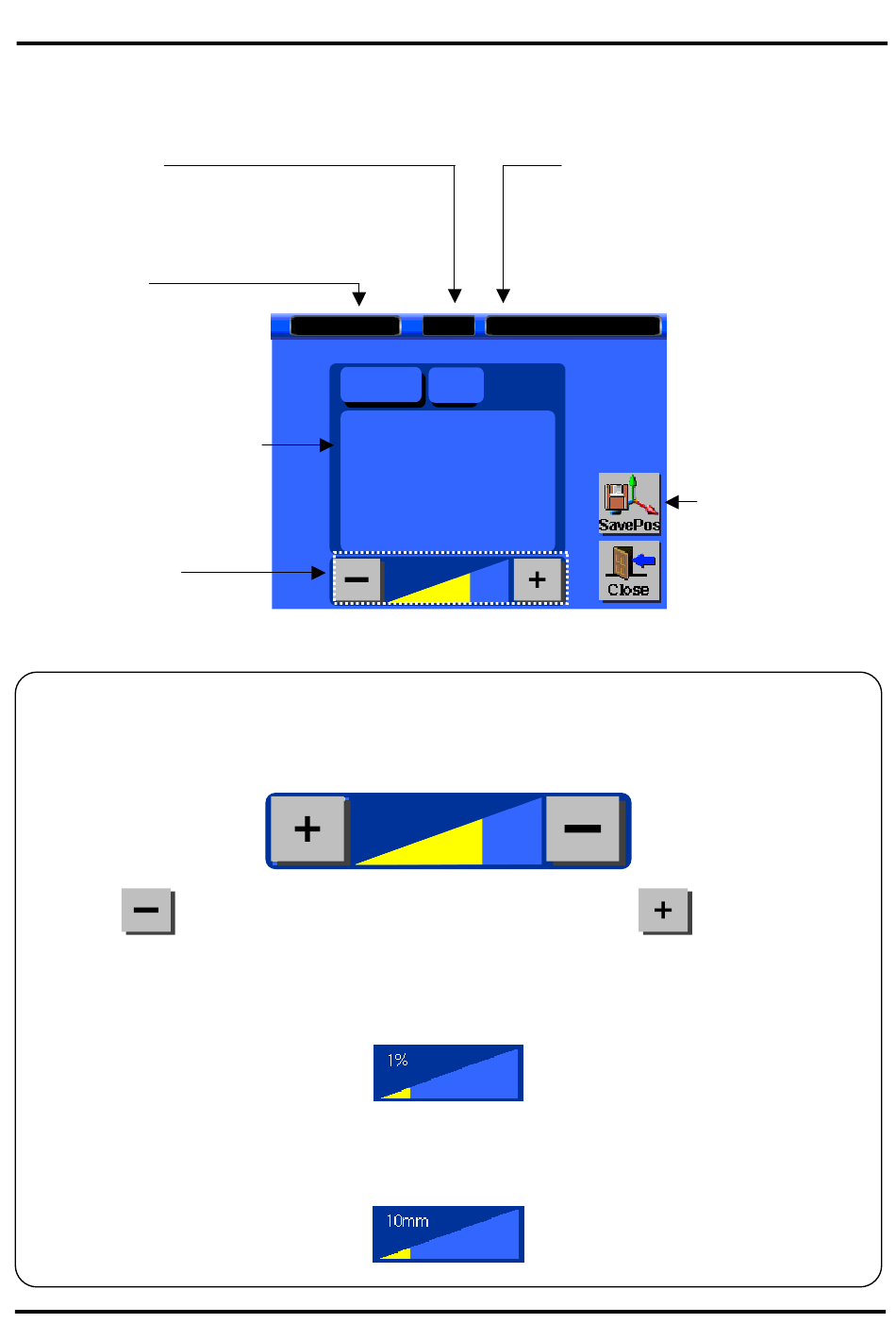

4.2 Description of Remote controller screen

Mold number
The mold number registered
during teaching is displayed.
Screen name
Position display window
Position value at each axis
is displayed.
Speed controller
Speed controller
The speed of speed controller is composed of speed value and distance value, which are used
for all axes.
Pressing
operation speed.
Speed value is percentage for rated speed, which is composed of 1%, 2%, 3%, 5%, 10%, 20% and
30%. Unit is %.
Distance value is 1% of speed value, which is a distance moved whenever manual button is
pressed once.
This is composed of 10mm, 1mm, 0.1mm and 0.05mm. Unit is mm.
26 NEXIA-SY Series User Manual
WaitPos
DlyTime
0.3 Sec
PFwBw
PAscDsc
RFwBw
RAscDsc
reduces manual operation speed, and pressing
2
Mold: W1
Speed
70
Current Memory
Trvs
0.0
0.0
250.0
250.0
0.0
0.0
Rot
OFF
OFF
Swl
OFF
OFF
10%
10%
Mold name
The
mold
name
registered
during
teaching is displayed.
Save Position button
Stores
position.
increases manual
the
set
