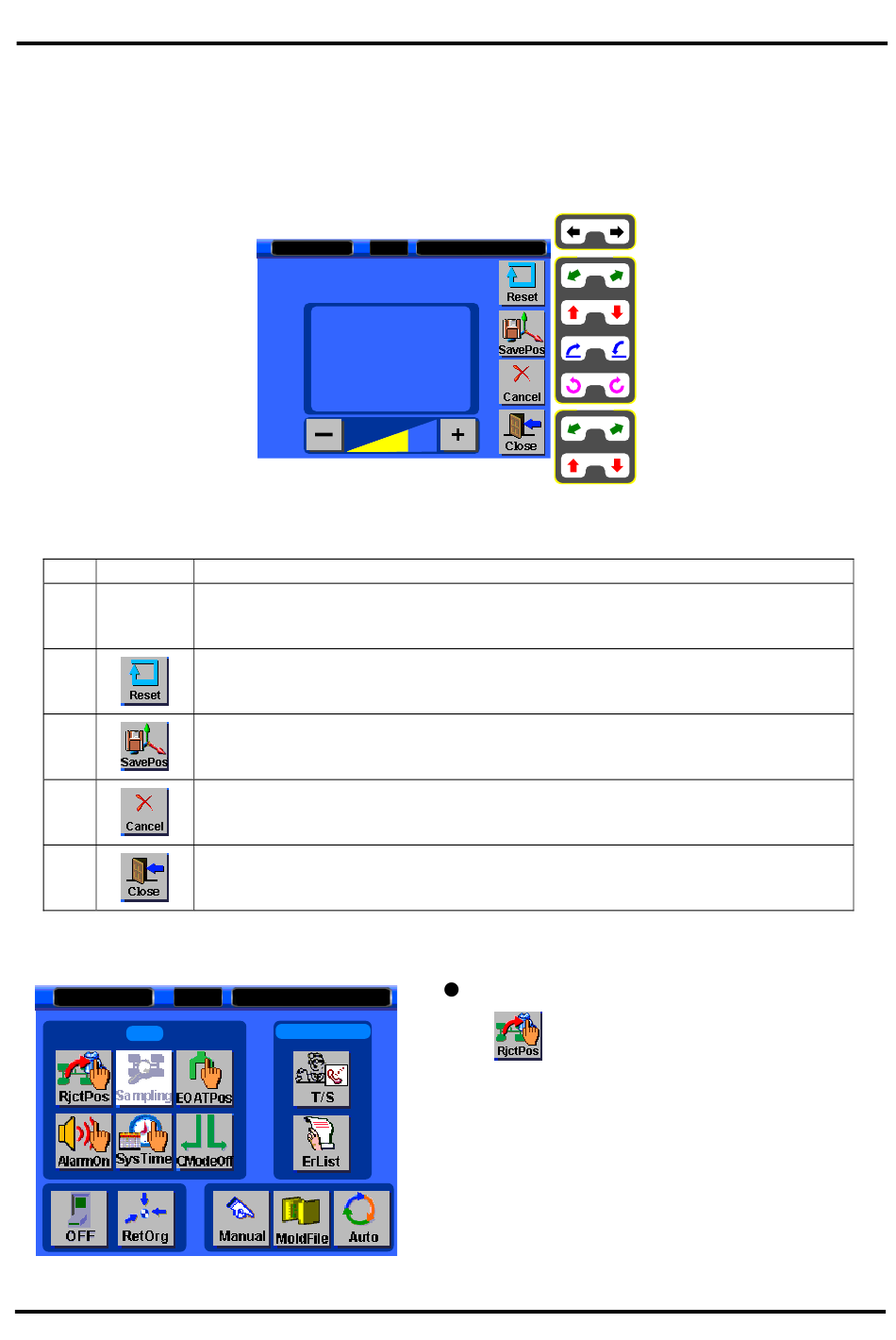

4. Operation

4.5.1 Reject Position

(1) Description
This sets the position to take-out defective product. Signal required from IMM or inspection
system to rejected parts to reject position.
(2) Button Function
NO
Button
Maunal
1
button
2
3
4
5
(3) Example
Main
Set
32 NEXIA-SY Series User Manual
RjctPos
Trvs
PFwBw
PAscDsc
Rot
Swl
RFwBw
RAscDsc
10%
Operate each axis manually.
Setting None.
Save current Position
Cancel
Move to Main screen
1
Mold: Default
Maintenance
2
Mold: W1
Current Memory
900.0
900.0
100.0
100.0
0.0
0.0
ON
ON
OFF
OFF
Description
STEP 1
Press
TRAVERSE
Product
FWD/BWD
ASNT/DSNT
ROTATION
SWIVEL
Runner
FWD/BWD
ASNT/DSNT
move to Reject Postion screen.
