Appendix
K. Interlock Board : IL

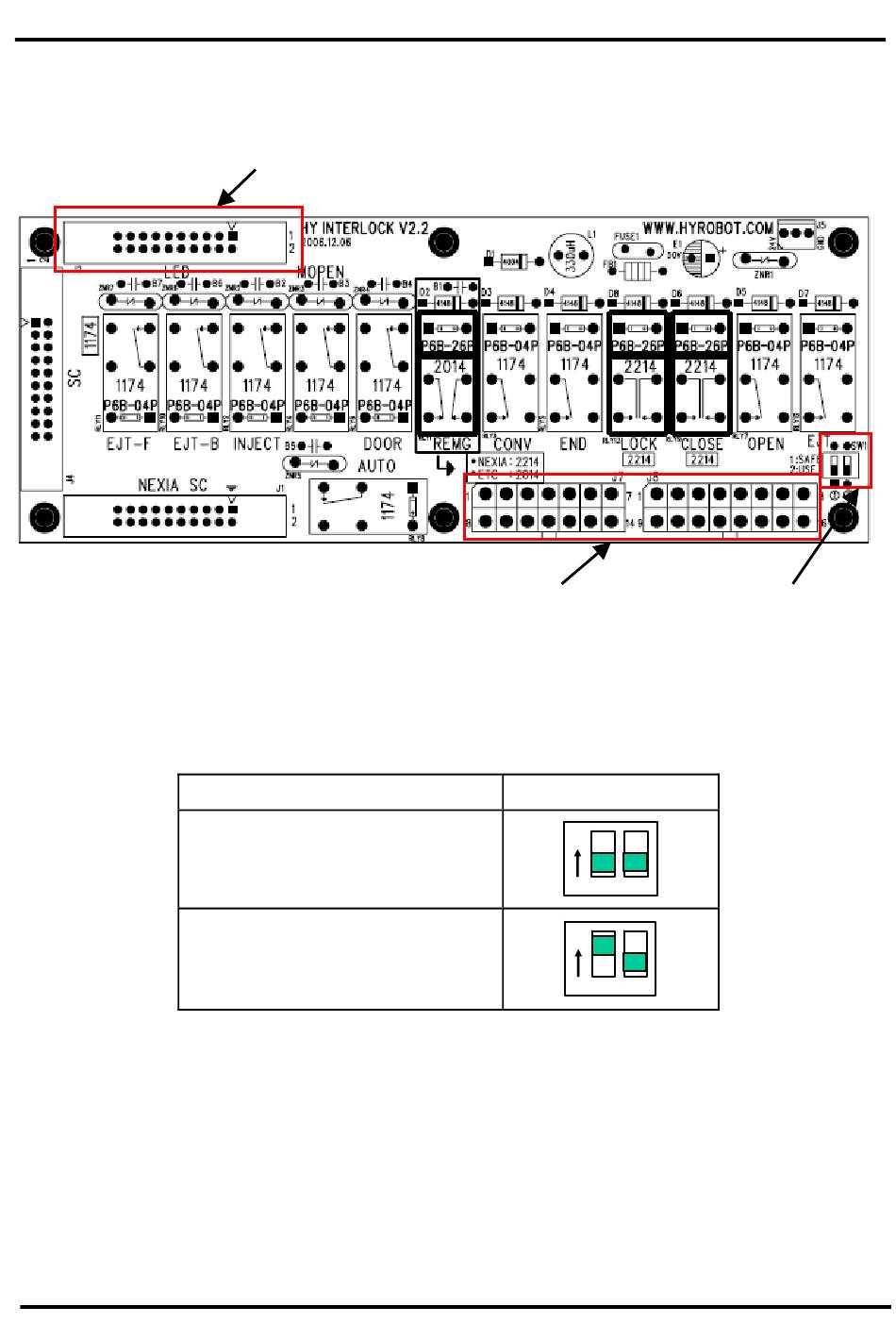

K.1 Interlock Board Description and Connector
LED Board Connector
K.2 Interface Setting dip Switch
■ For No.1 Switch is for E-Stop from IMM Connection, Off is for IMM E-stop Connect, ON
for no connection of IMM E-Stop.
(IMM E-Stop connection is not required )
168 NEXIA-SY Series User Manual
Use - No1 is OFF
(IMM E-Stop connection required )
If no connection, alarm will trigger
Not in Use - No 1 is ON
IMM Interface Connector
SW1Setting
ON
ON
Interlock Dip Swtich
1
2
1
2
]
