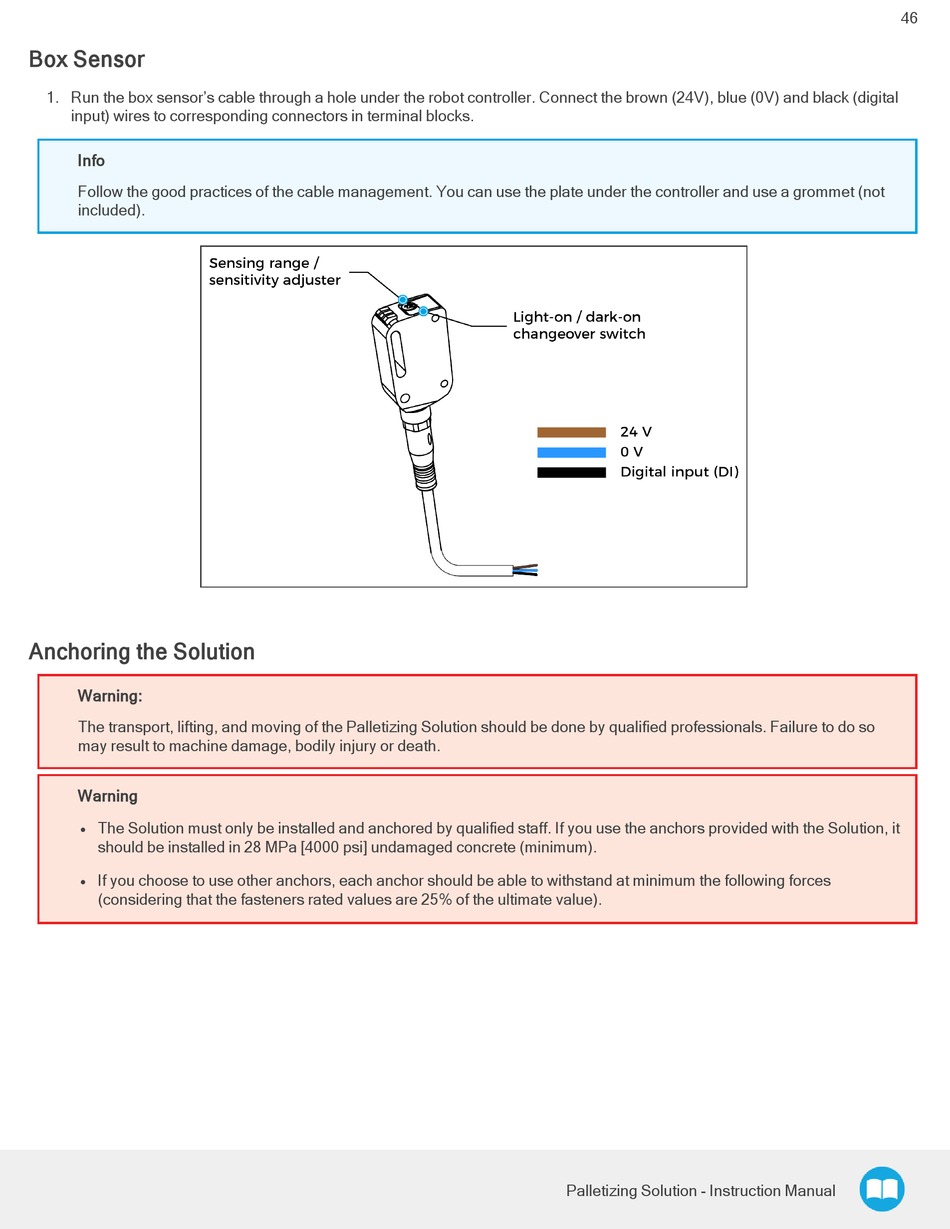

Box Sensor
1. Run the box sensor's cable through a hole under the robot controller. Connect the brown (24V), blue (0V) and black (digital
input) wires to corresponding connectors in terminal blocks.
Info
Follow the good practices of the cable management. You can use the plate under the controller and use a grommet (not
included).
Anchoring the Solution
Warning:
The transport, lifting, and moving of the Palletizing Solution should be done by qualified professionals. Failure to do so
may result to machine damage, bodily injury or death.
Warning
The Solution must only be installed and anchored by qualified staff. If you use the anchors provided with the Solution, it
l
should be installed in 28 MPa [4000 psi] undamaged concrete (minimum).
If you choose to use other anchors, each anchor should be able to withstand at minimum the following forces
l
(considering that the fasteners rated values are 25% of the ultimate value).
