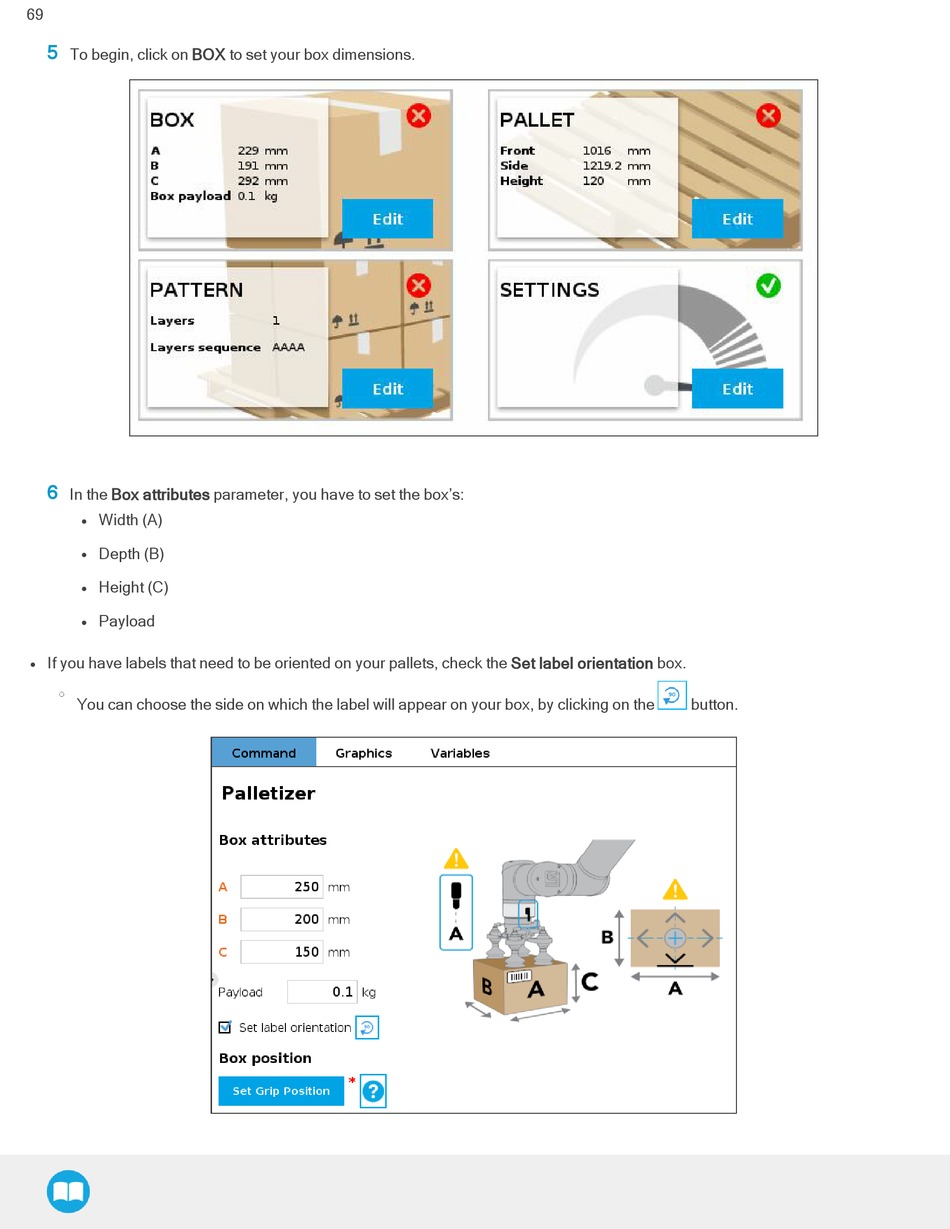

ROBOTIQ PALLETIZING SOLUTION AX Series Instruction Manual page 69

69
5
To begin, click on BOX to set your box dimensions.
6
In the Box attributes parameter, you have to set the box's:
Width (A)
l
Depth (B)
l
Height (C)
l
Payload
l
If you have labels that need to be oriented on your pallets, check the Set label orientation box.
l
o
You can choose the side on which the label will appear on your box, by clicking on the button.
