1.3. Palletizing Operation Diagrams

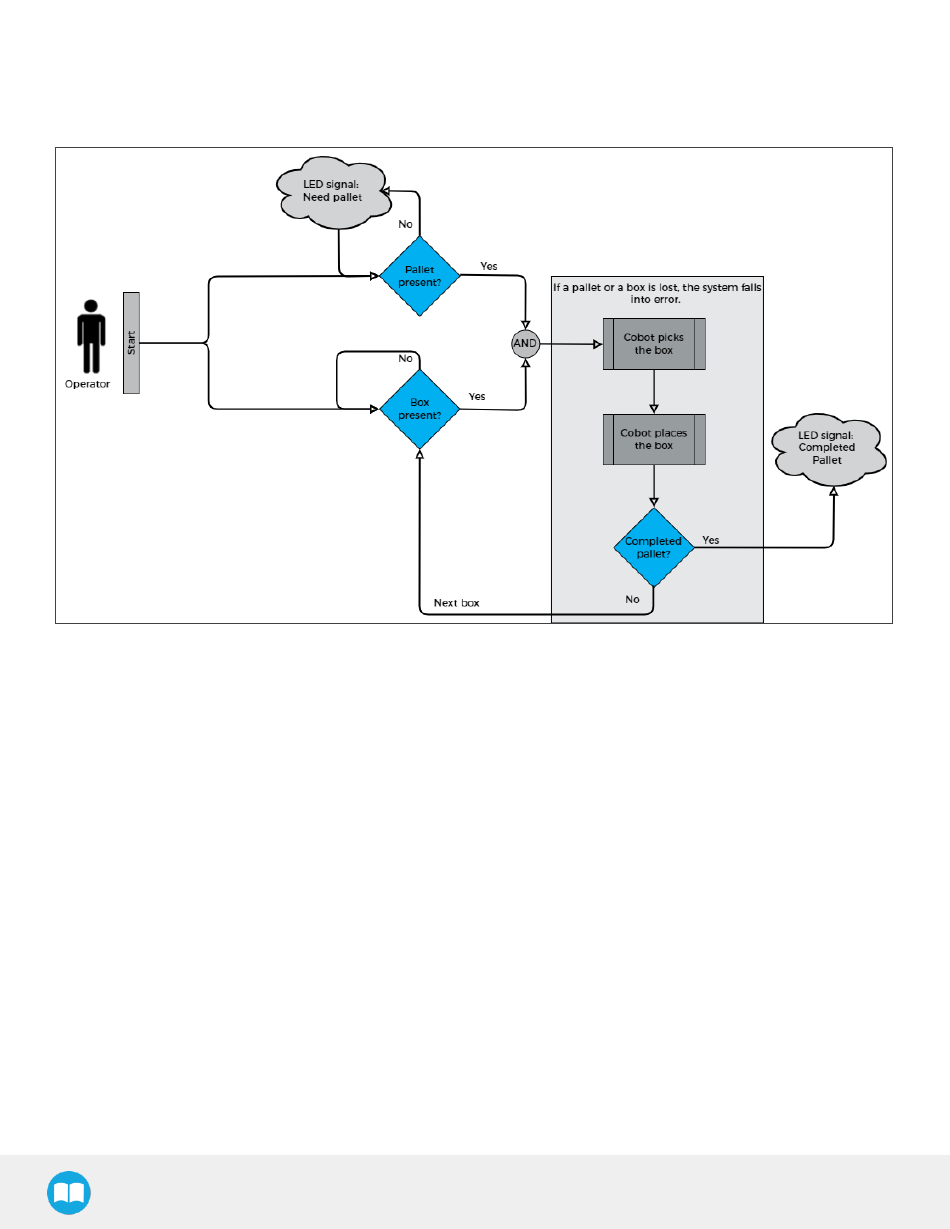

The following diagrams explain the logical operation of the Palletizing Solution based on the operator's actions, as well as
responses such as signals, pallet and box sensor behaviors, etc.
Please refer to the Status Lights section for further information about light states.
