71
9

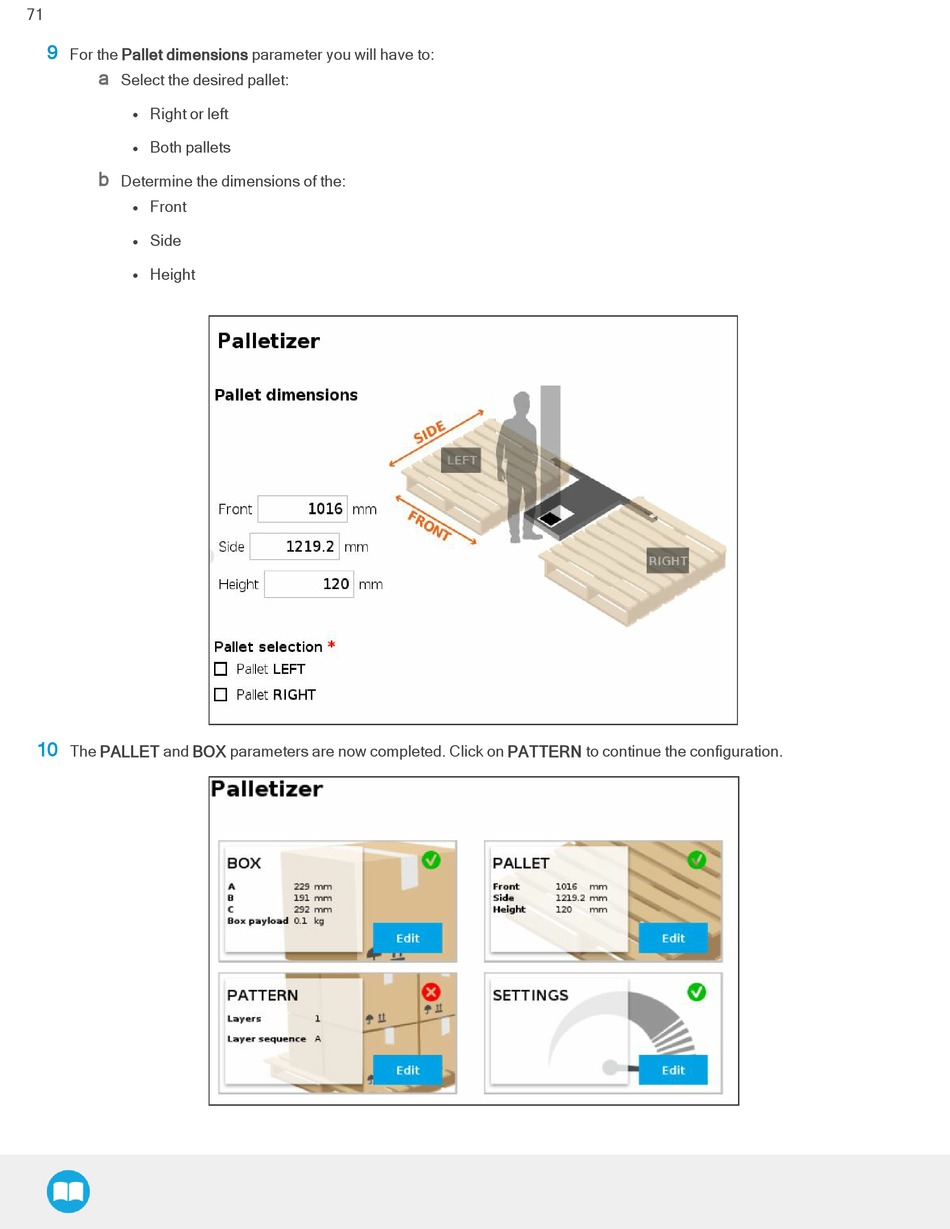

For the Pallet dimensions parameter you will have to:
a
Select the desired pallet:
Right or left
l
Both pallets
l
b
Determine the dimensions of the:
Front
l
Side
l
Height
l
10
The PALLET and BOX parameters are now completed. Click on PATTERN to continue the configuration.
