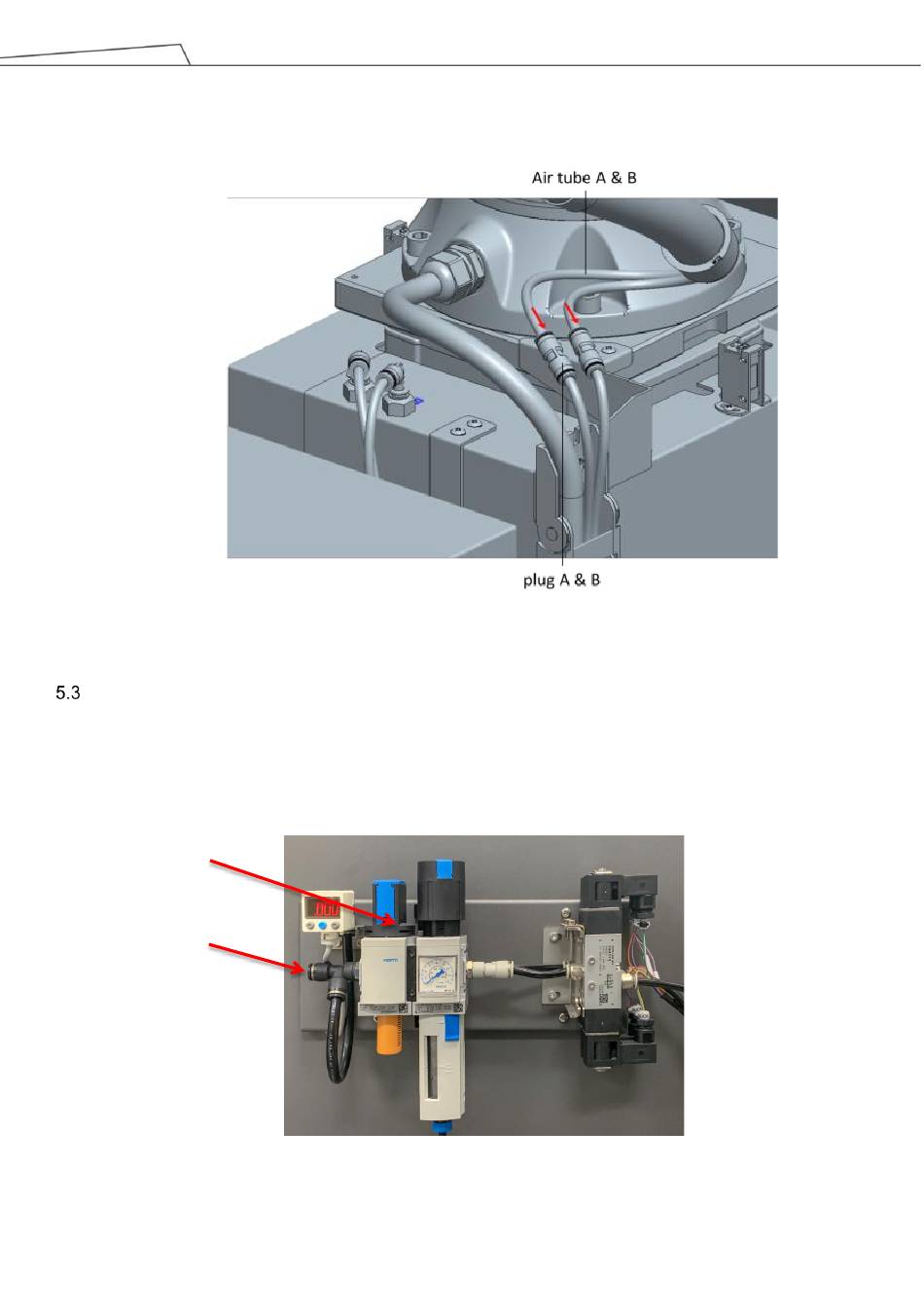

Connect the other ends of the air tube A&B plug to drag chain side plug. Make the
4.
connector is inserted into the corresponding A&B plug.
Connect External Compressed Air Supply
Before connecting external compressed air supply, make sure the ON/OFF valve is switched "OFF" (2-
3) position. The external compressed air supply is connected to the air unit of TM Palletizing Operator
Base through an 8 ㎜ compressed air tube.
ON/OFF Valve
at OFF (2-3) position
㎜
Connect 8
tube
TM Palletizing Operator User's Manual
Figure 54: Connection Completed
Figure 55: Air Unit for External Compressed Air Supply
Product Version: 1.1 Document Version: 1.2
95
