Relocation and Storage Considerations

 Store the original packaging materials detailed in 1.2 Package Contents in a dry and clean
place for potential storage or relocation needs.
 Disconnect all the cables and store them in a dry and safe place prior to any relocation or
storage process.
 Disconnect the palletizing operator from other equipment, such as conveyor, light curtains
and sensors.
 If the robot and/or control box is disassembled from the palletizing operator, store them in
their original packaging prior to any relocation or storage process.
 When transporting TM Palletizing Operator as a complete set to a new location, users must
adhere to the instructions in 5.4 TM Palletizing Operator Transportation.
WARNING:
This product must be shipped and stored in a temperature-controlled environment, within
the range -20°C to 60°C (-4°F to 140°F). The recommended humidity is up to 75 percent,
non-condensing. It should be shipped and stored in the supplied package, which is
designed to prevent damage from normal shock and vibration. You should protect the
package from excessive shock and vibration. The product must always be stored and
shipped in an upright position in a clean, dry area that is free from condensation. Do not lay
the package on its side or any other non-upright position: this could damage the product.

Connect/Disconnect the Teach Pendant

Connect the Teach Pendant
Refer to the steps below for the proper connection of the Teach Pendant.
1. Connect the Teach Pendant cable to the connector of the pendant. Tighten up the rotating
screws.
TM Palletizing Operator User's Manual

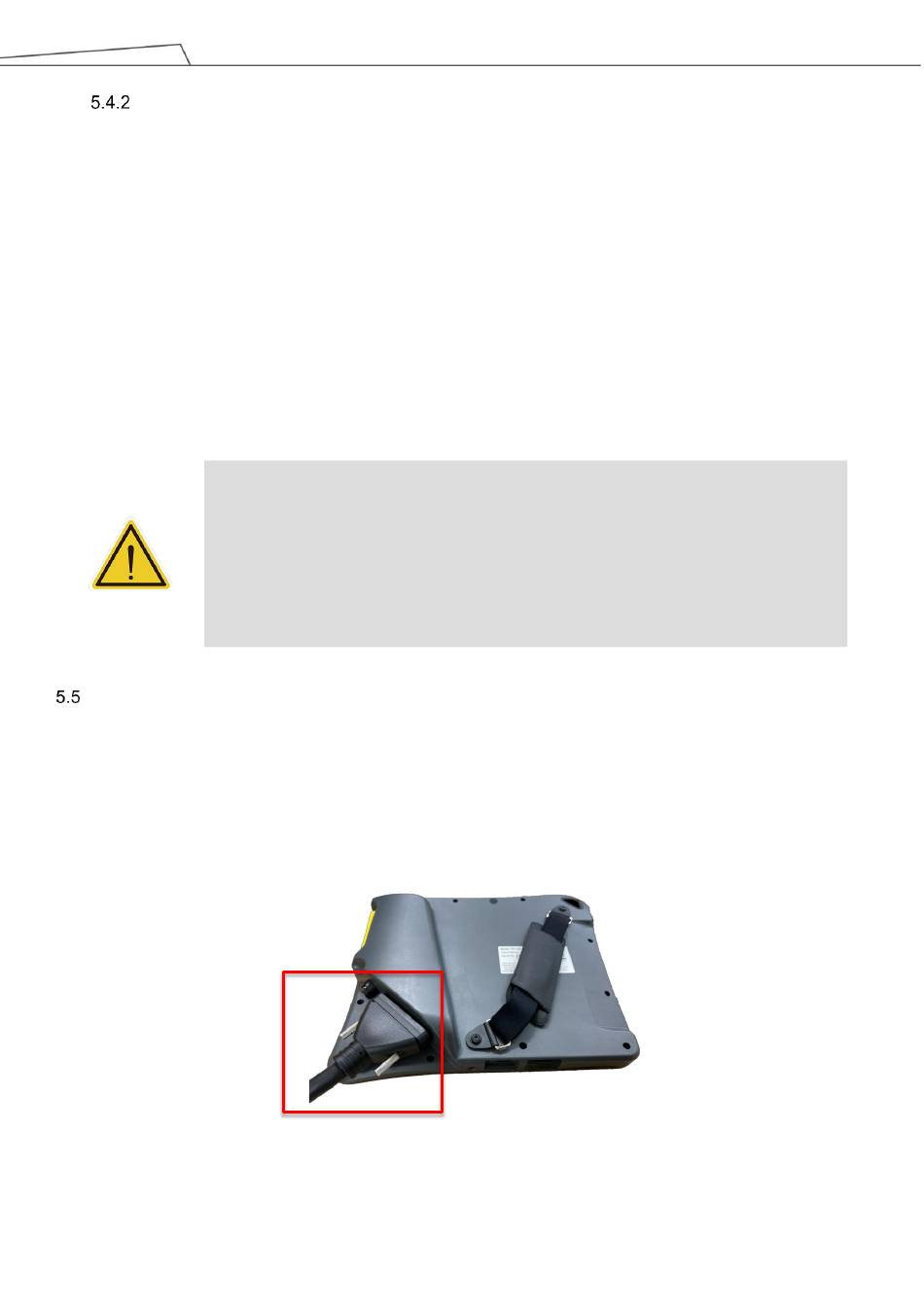

Figure 63: Connect the Cable to the Pendant
Product Version: 1.1 Document Version: 1.2 101
