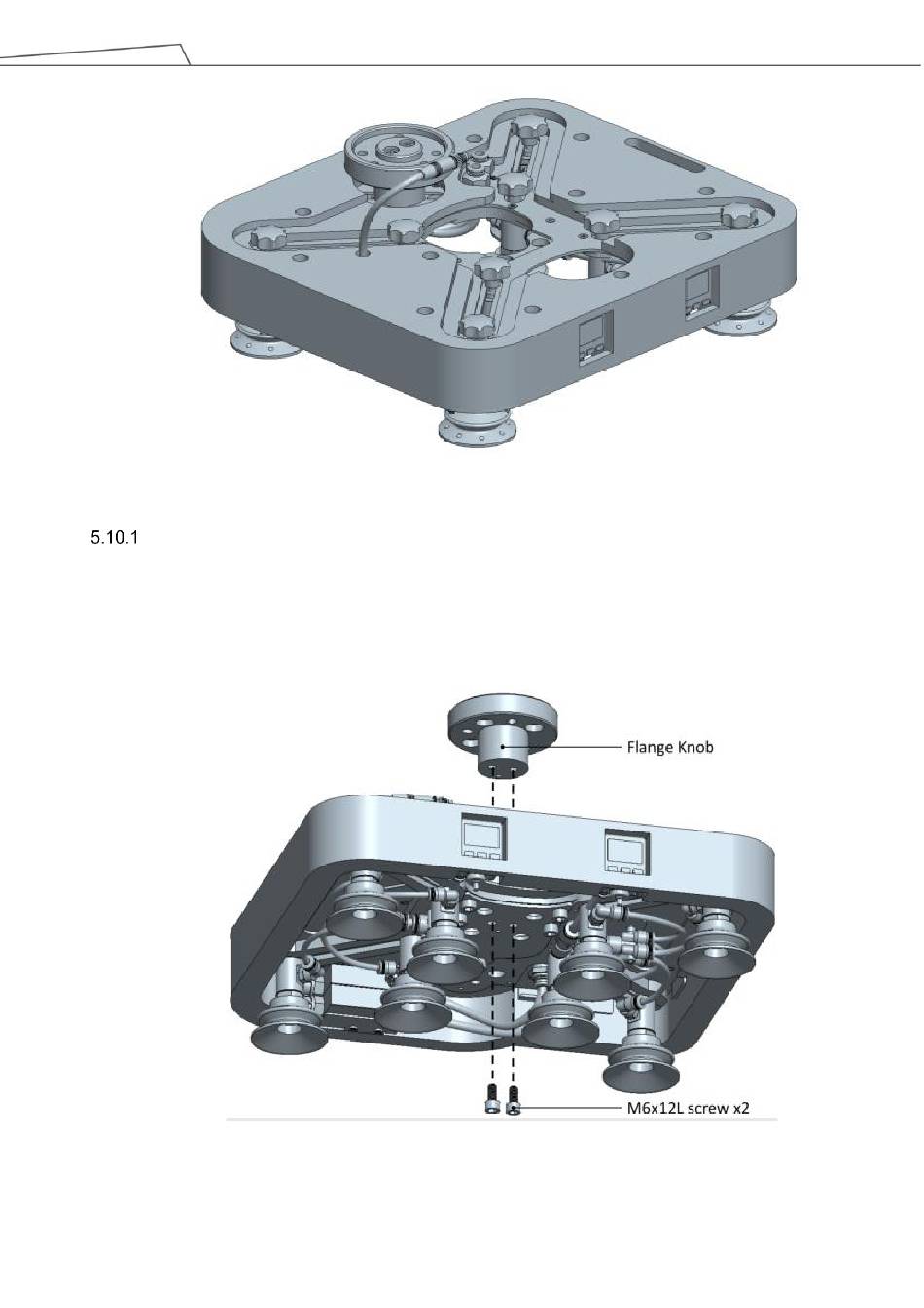

Figure 74: Gripper Flange at Shifted Position
Change Gripper Flange Position
To change the gripper flange position, simply perform the steps below:
Remove the two M6x12L screws with Allen wrench and detach the flange knob from
1.
the gripper.
Figure 75: Remove Two M6x12L Screws and Detach Flange Knob
TM Palletizing Operator User's Manual
Product Version: 1.1 Document Version: 1.2
113
