TM Palletizing Operator User's Manual

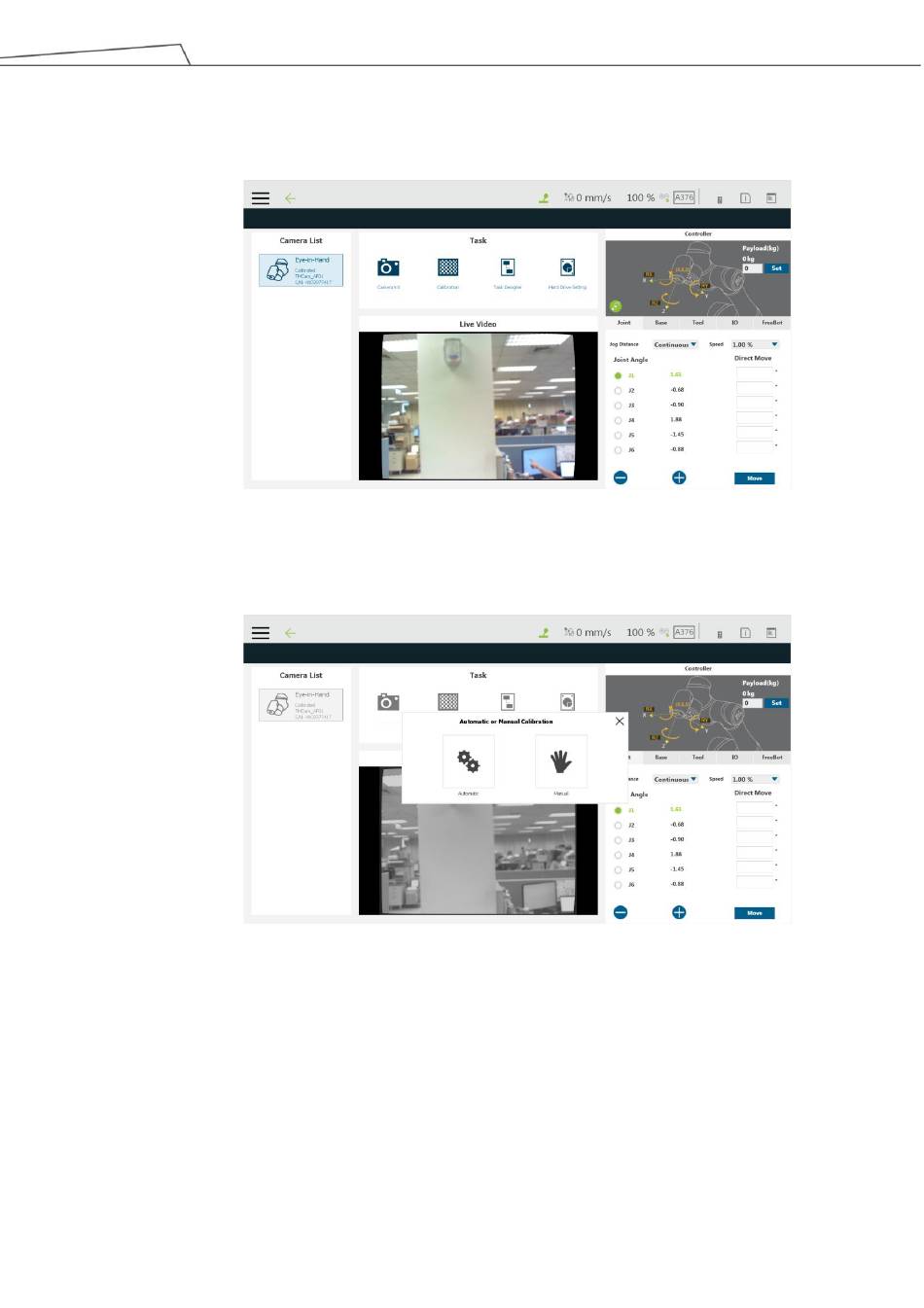

In the vision job, place TM Landmark underneath the camera, and click
Calibration.
Click Automatic (recommended) to reduce the process.
Figure 128: Automatic Calibration
Click the camera setting icon at top left. Set the best shutter time, white balance,
and focus by the factors in surroundings or application requirements. Users can
also choose Auto once to have the robot camera detect and adjust the
parameters to shorten the setting process.
Product Version: 1.1 Document Version: 1.2
Figure 127: Calibration
