9.
10.
TM Palletizing Operator User's Manual

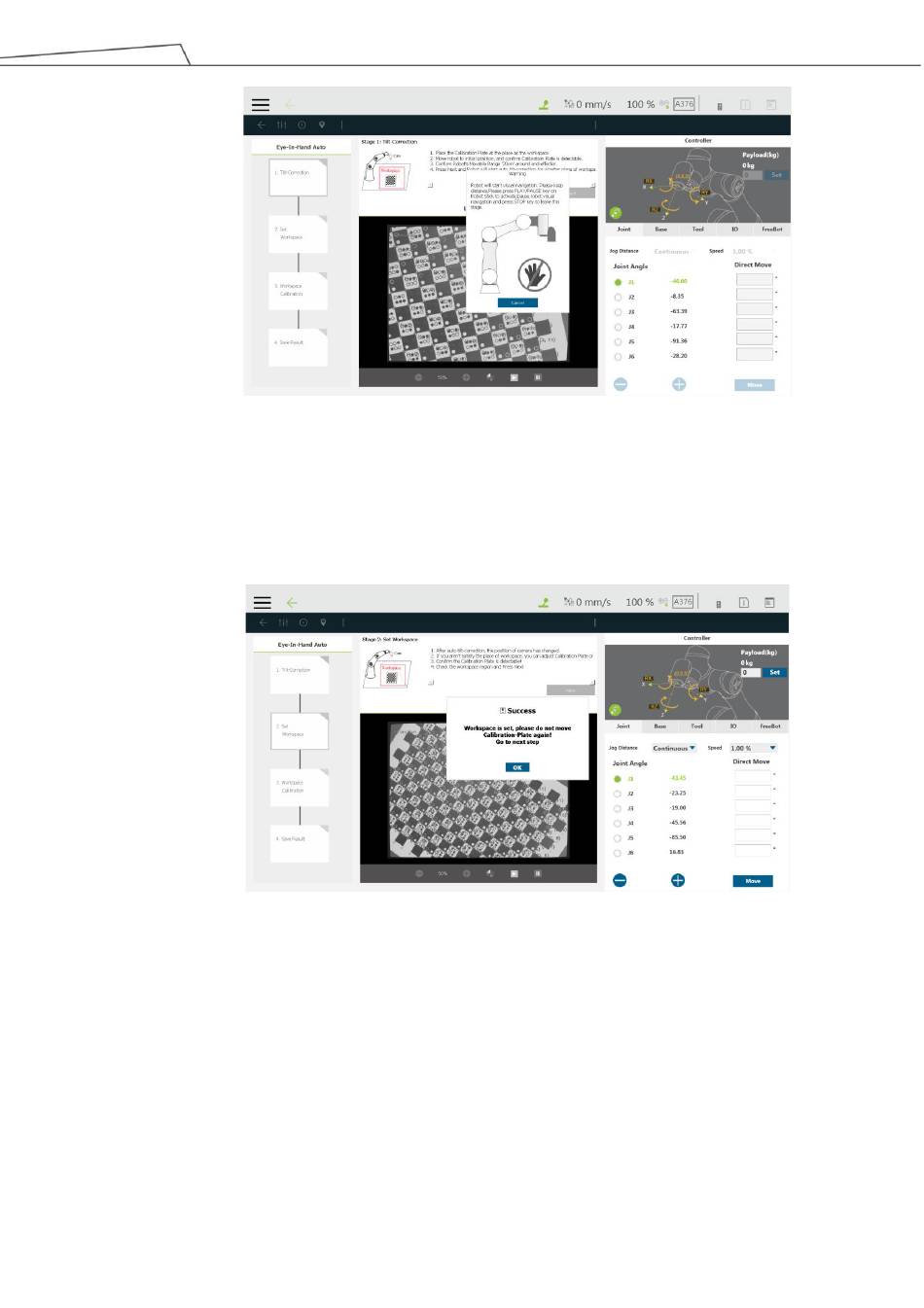

Figure 131: Tilt-Correction (2/2)
In Stage 2: Set Workspace, the robot will set the workspace automatically.
Make sure TM Landmark remains still. Click OK after the message Success
prompts.
Figure 132: Set Workspace
In Stage 3: Workspace Calibration, tap PLAY/PAUSE on the teach pendant to
start visual navigation. The robot will start to celibate the workspace.
Product Version: 1.1 Document Version: 1.2 158
