Step 2 - Box Dimension and Label Direction Setting

In Step 2, users can
direction of the label, and the clearances between the boxes in dX/dY/dZ directions.

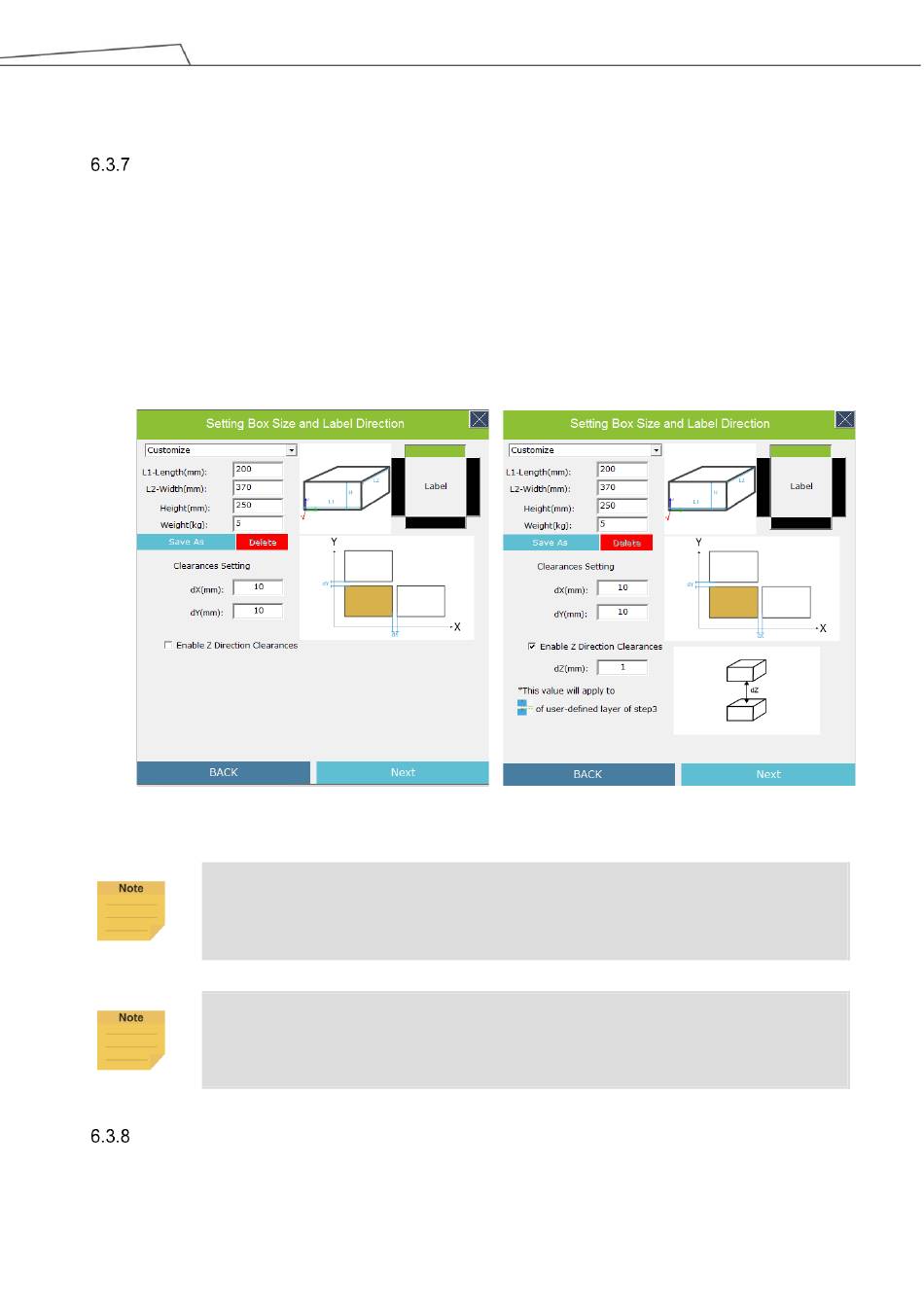

 The figure below showing a custom box setting
Length: 200 ㎜, Width: 370 ㎜, Height: 250 ㎜
dx: 10 ㎜, dy: 10 ㎜
Note:
Users can save the pallet parameters as a new one or delete the custom pallet parameters.
Note:
Check Enabling Z Direction Clearances allows users to set tasks between layers such as
inserting partitions. Once checked, users can insert intervals between layers in Step 3.
Step 3 – Create Pallet Layers
In Step 3, users can configure the pallet layers and the box layouts. The case below shows
how to create and arrange the layers and the boxes.
TM Palletizing Operator User's Manual
Table 22: Preset Pallet Templates
Length (㎜), Width (㎜), Height (㎜),
set the
Figure 95: Box Dimension and Label Direction Setting
Product Version: 1.1 Document Version: 1.2
Weight(㎏) of the box, the
