TMstudio Import/Export

Before using Palletizing Wizard, please use the Import/Export function at top right in
TMstudio and select the TM Palletizing Operator Template file with the pillar length 500, 800,
or 1200 in the TM Palletizing Operator Software Package folder. Import the files Scene, CAD,
TCP, and Palletizing in the TM Palletizing Operator Template to use in TMstudio.

Open a Scene

Switch to Palletizing Wizard, and click Wizard. Click OK to open the default scene.
TM Palletizing Operator User's Manual

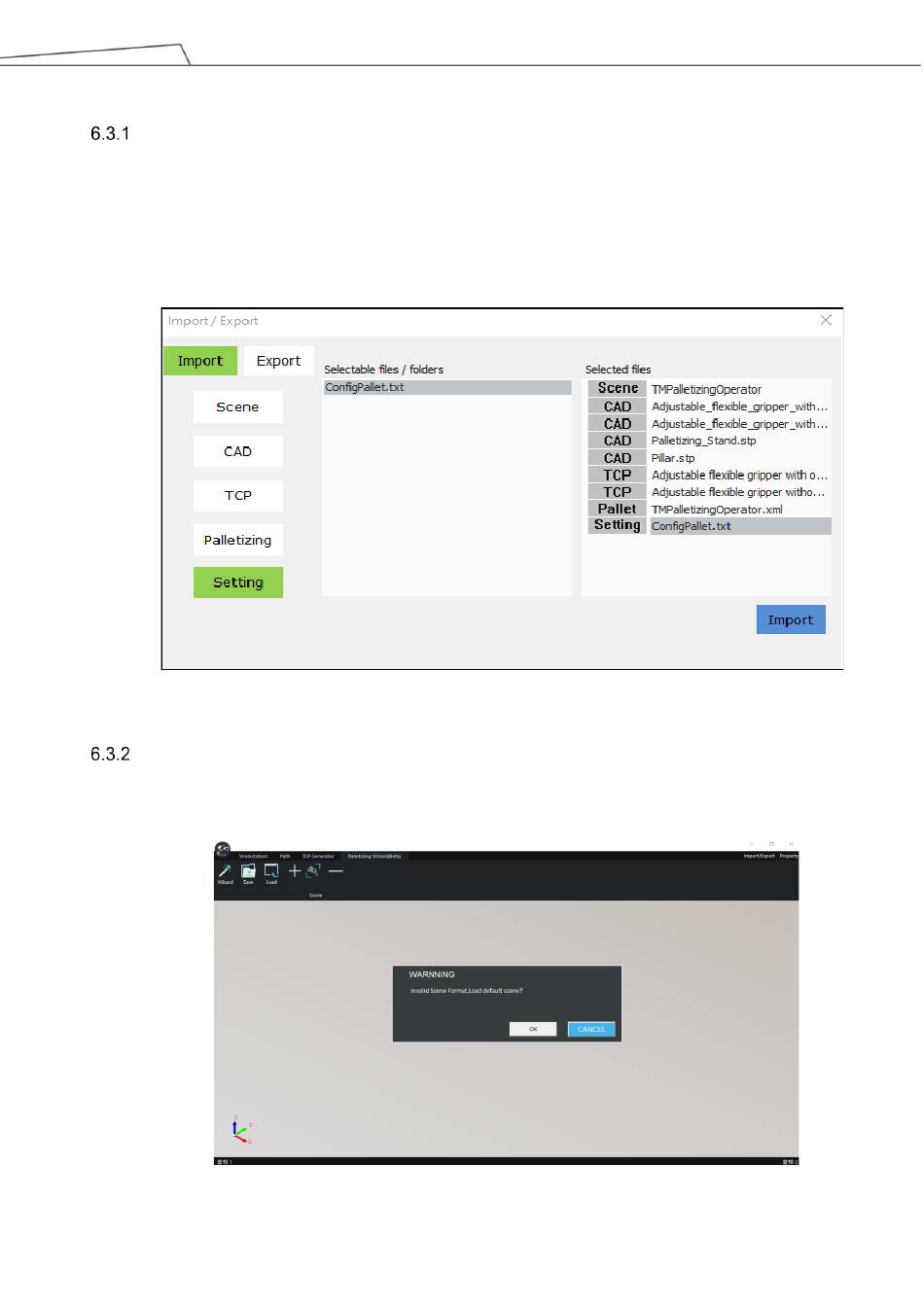

Figure 88: Import
Figure 89: Open a Scene (1/2)
