Techman Robot TM Palletizing Operator User Manual page 109

Operator. For details about Primary Power Input, refer to the figures below.
3. Before connecting the cable, make sure the primary power is OFF and the power switch of the
palletizing operator is OFF as well.
4. As depicted in the figure below, connect the power cable through the housing of the
distribution box to the AC Power (L/N/PE), and connect another end of the power cable to the
AC IN of the palletizing operator. Keep in mind that the palletizing machine must adopt single-
phase AC 100-240V power supply.
IMPORTANT:
The power supply should be designed with the following:
1.
2.
TM Palletizing Operator User's Manual

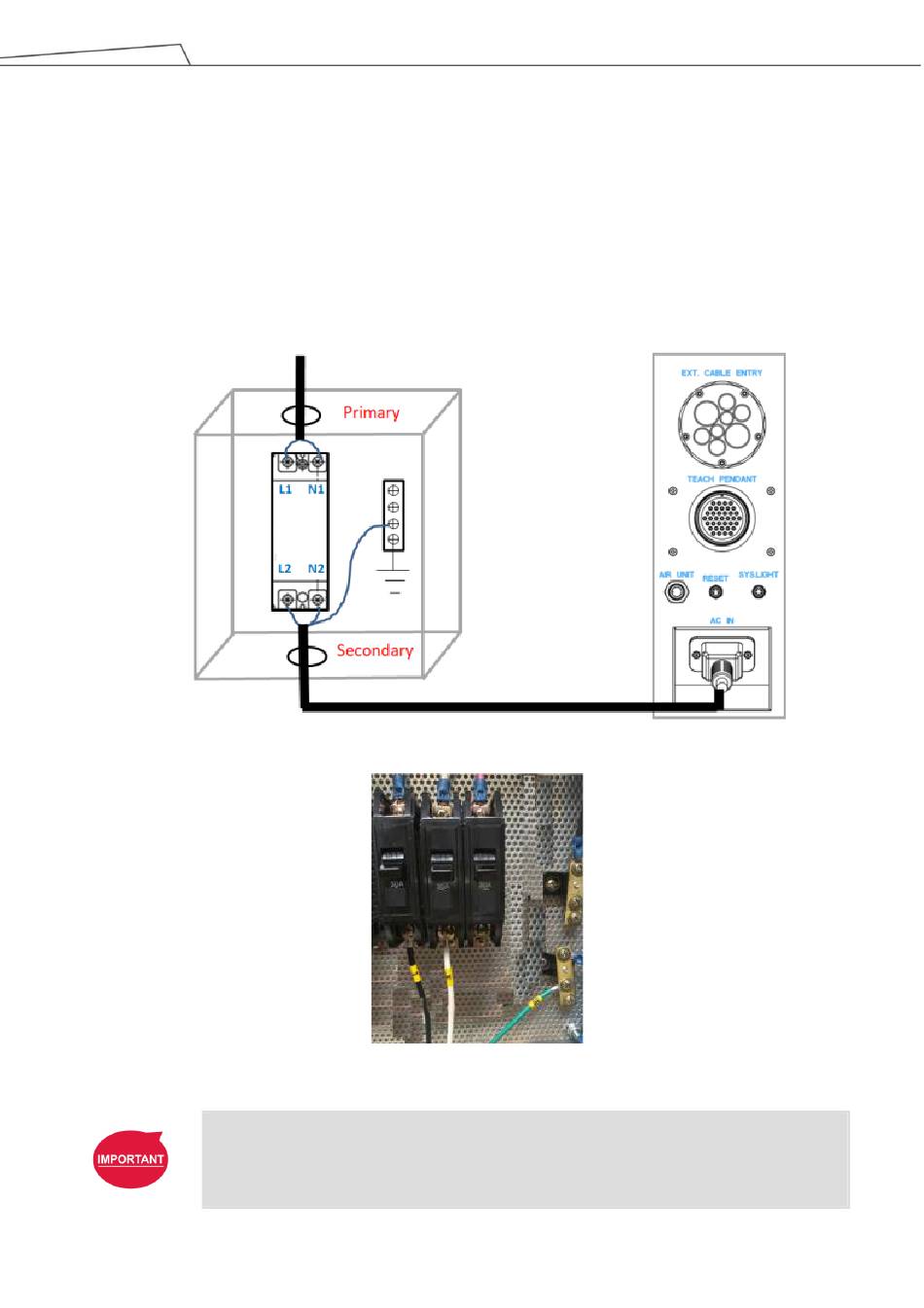

Figure 70: Power Connection Reference
Grounding
Main fuse
Product Version: 1.1 Document Version: 1.2 109
