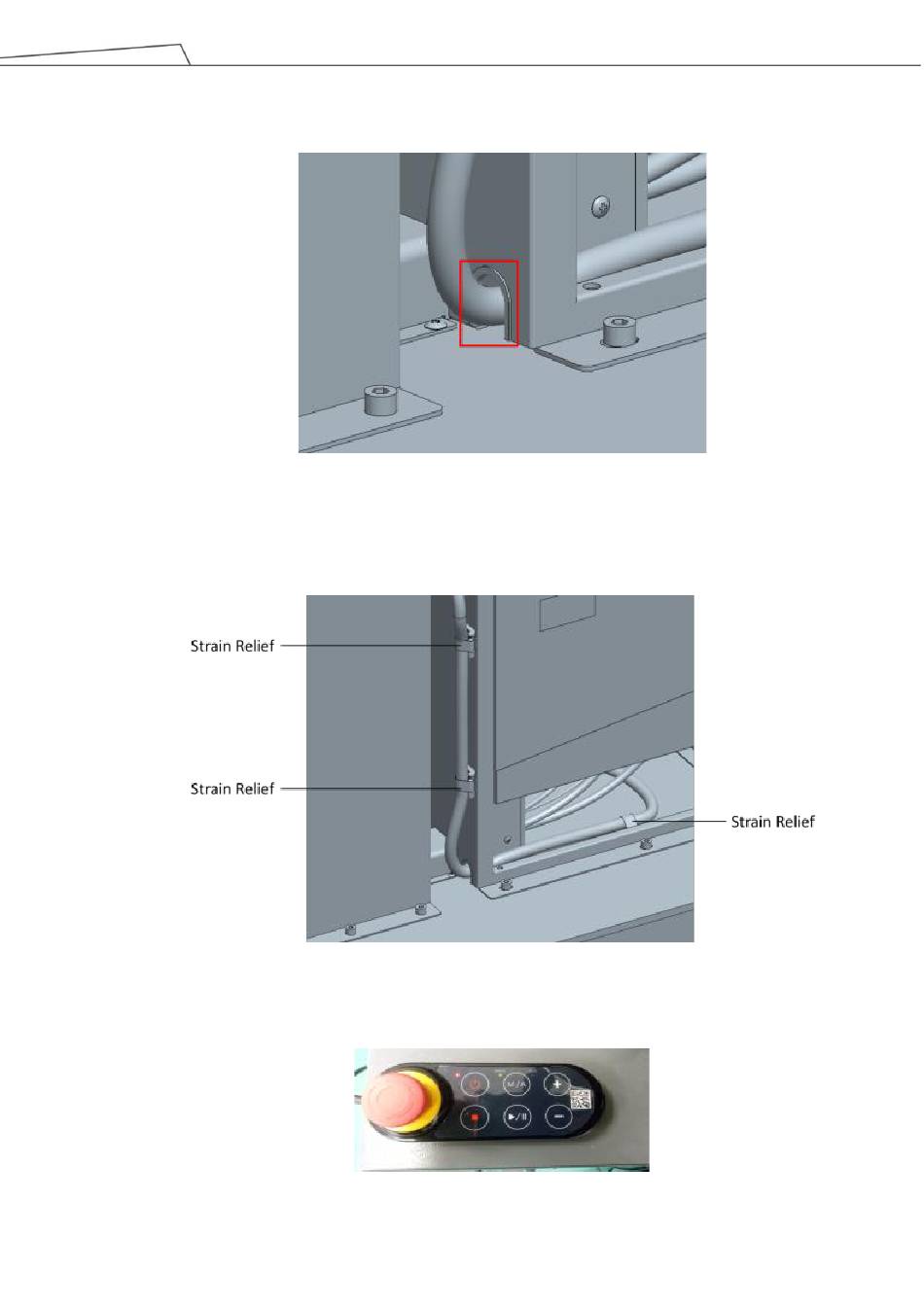

Techman Robot TM Palletizing Operator User Manual page 91

Be sure to wire the robot connection cable through the notch of the housing as shown.
2.
Apply strain reliefs to fix the cables in place.
3.
Then reinstall the side covers of the rear housing.
4.
Place the robot stick on the top cover or inner side of the side cover.
5.
TM Palletizing Operator User's Manual
Figure 48: Wire the Robot Cable through Notch
Figure 49: Reinstall the Side Cover
Product Version: 1.1 Document Version: 1.2 91
