Electric Switchboard Inside The Distribution Box - Techman Robot TM Palletizing Operator User Manual

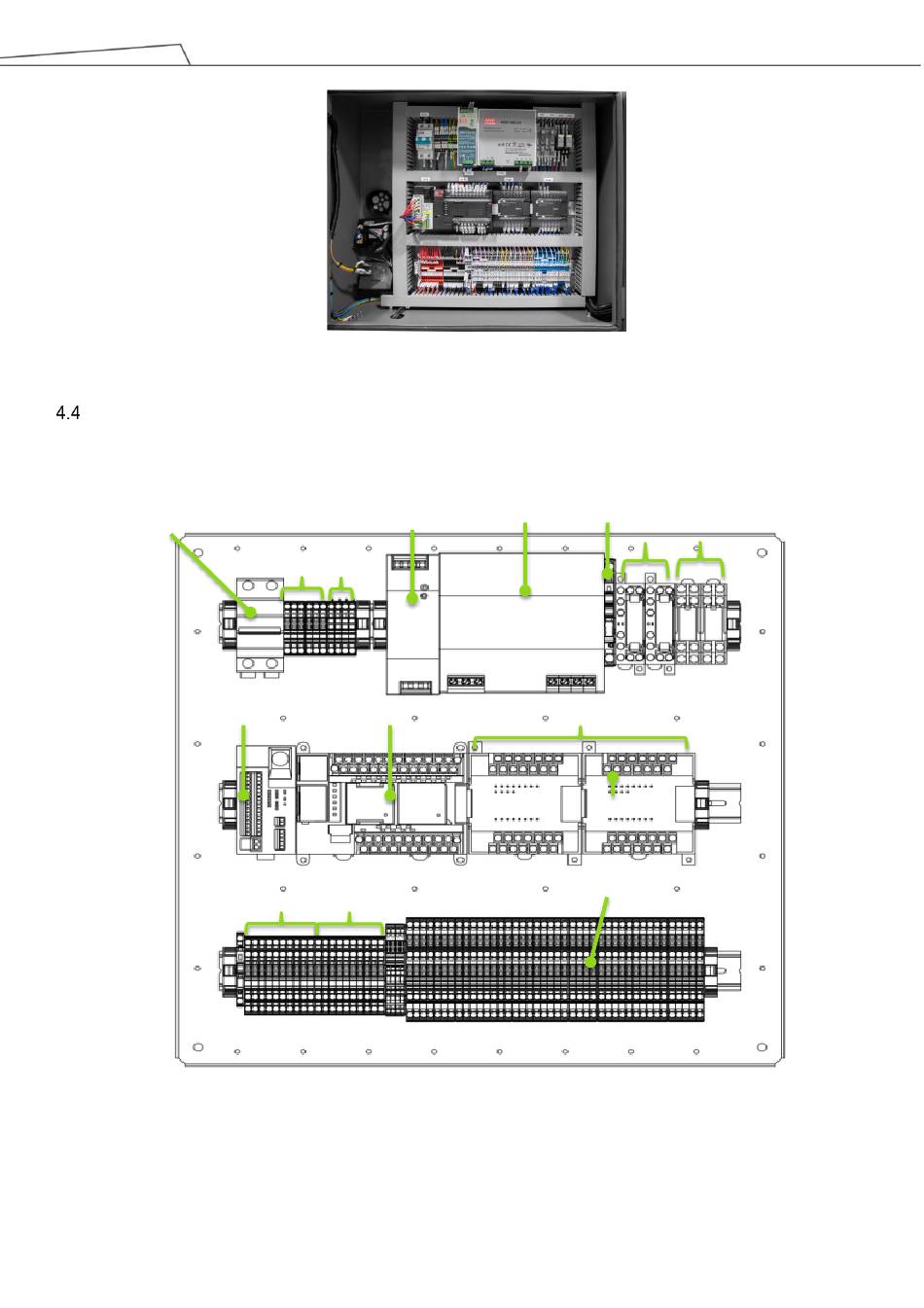

Figure 19: Inside the Distribution Box (the image serves as reference only)

Electric Switchboard inside the Distribution Box

The diagram below illustrates the components of the electrical switchboard inside the Distribution Box.
Breaker
Safety controller
(SF-C21)
By default, most of the I/Os on the switchboard are pre-occupied and connected to devices upon
shipment. The table below gives a brief description for each component on the board.
TM Palletizing Operator User's Manual
Power supply (2)
AC Power (L/N/PE)
Safety controller (G9SP-N20S)
+0V (GND)
24V
Figure 20: Electric switchboard diagram
Product Version: 1.1 Document Version: 1.2
Safety
Power supply (1)
Fuse
Relay
External I/O (CP1W-
20EDT)
IN_03
Palletizing I/O
Relay
