Shut down the palletizing operator and the robot.
3.
Align the gripper flange to the robot flange, and fasten the gripper with four M6x12L
4.
screws.
Connect the 8-pin gripper cable to the I/O connector on the robot.
5.
Figure 80: Connect 8-pin Gripper Cable to I/O Connector on Robot (for centered position)
TM Palletizing Operator User's Manual

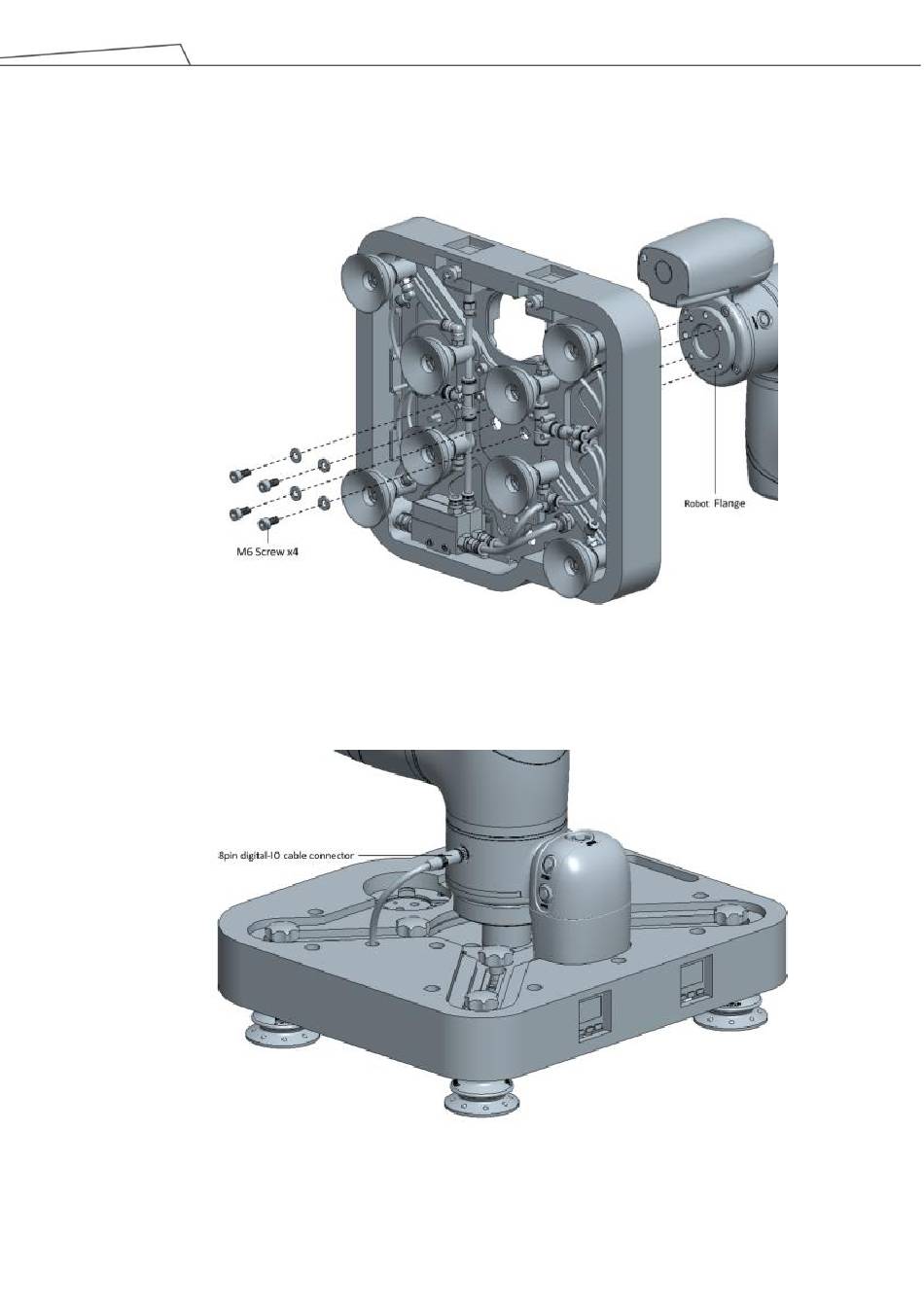

Figure 79: Align Gripper and Screws (for centered position)
