 Unfasten screws and remove top lid and side walls of wooden crate.
 Move the operator base from the wooden crate with forklift truck.

Assemble TM Palletizing Operator

Remove the Rear Housing

Before installing TM Palletizing Operator, it is necessary to remove the rear housing first.
Unlatch the side cover hinge of the rear housing, then remove the cover ( required both left
1.
and right).
Remove the 6 screws marked in the diagram and disassemble the rear housing. Remember
2.
to keep the screws in a safe place.
TM Palletizing Operator User's Manual

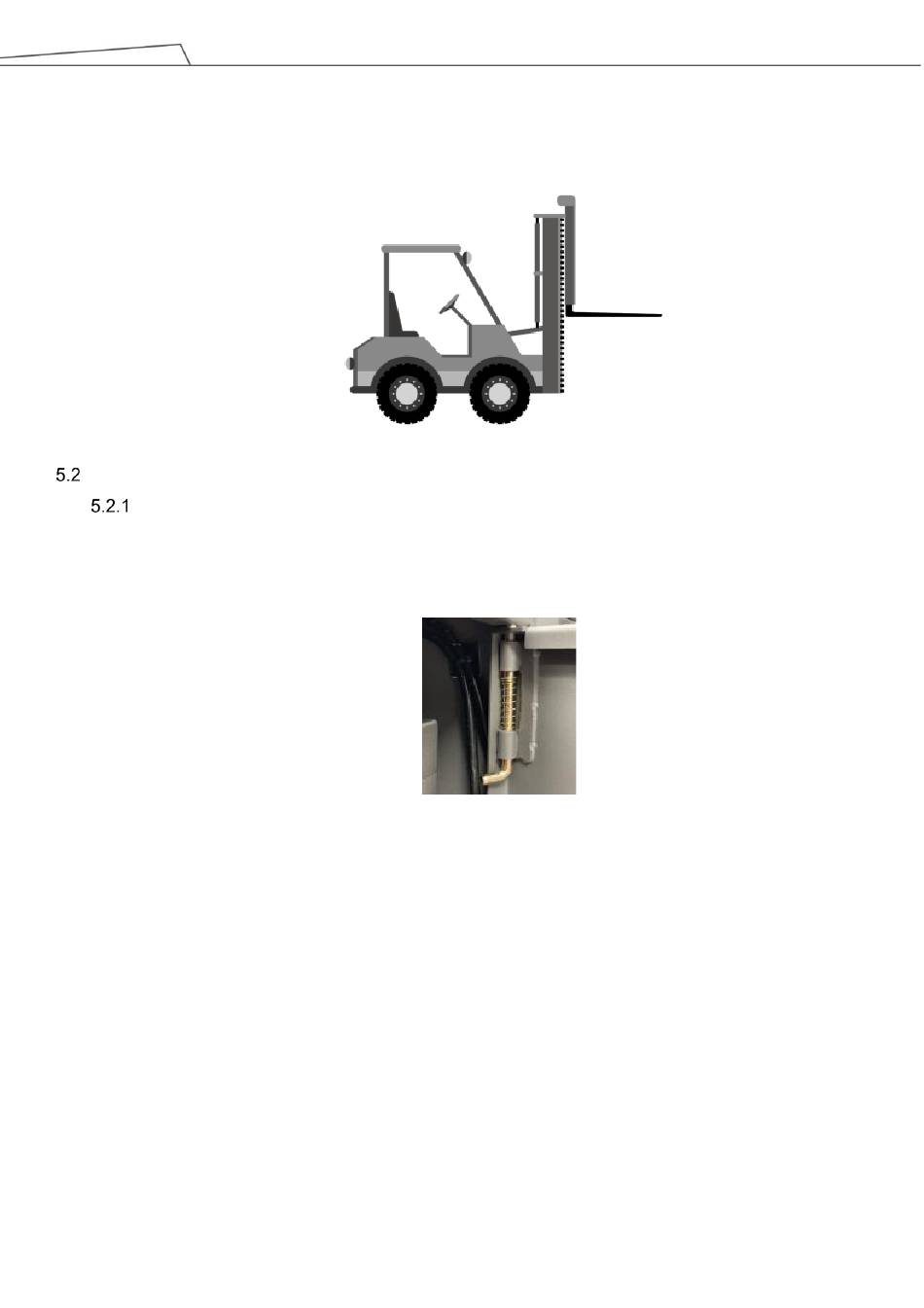

Figure 33: Unlatch the Side Cover Hinge
Product Version: 1.1 Document Version: 1.2 79
