safeguard devices.
3. Apply isolation measure to prevent short-circuit and emergent stop of the machine.

Power Terminal

The power terminal (+24V block and +0V (GND) block) supplies a total output of 24V/5A. These
terminals are used for external and internal device.

External I/O (CP1W-20EDT) and Reset Button Setting

By default, the external Reset Button is in Manual Reset. If users wish to set it in Auto Reset, connect
the IN_03 pin of External I/O (CP1W-20EDT) to GND terminal as shown in the figure below.
IMPORTANT:
Make sure the reset button module is already installed before powering on the system.
TM Palletizing Operator User's Manual
+24V +0V (GND)

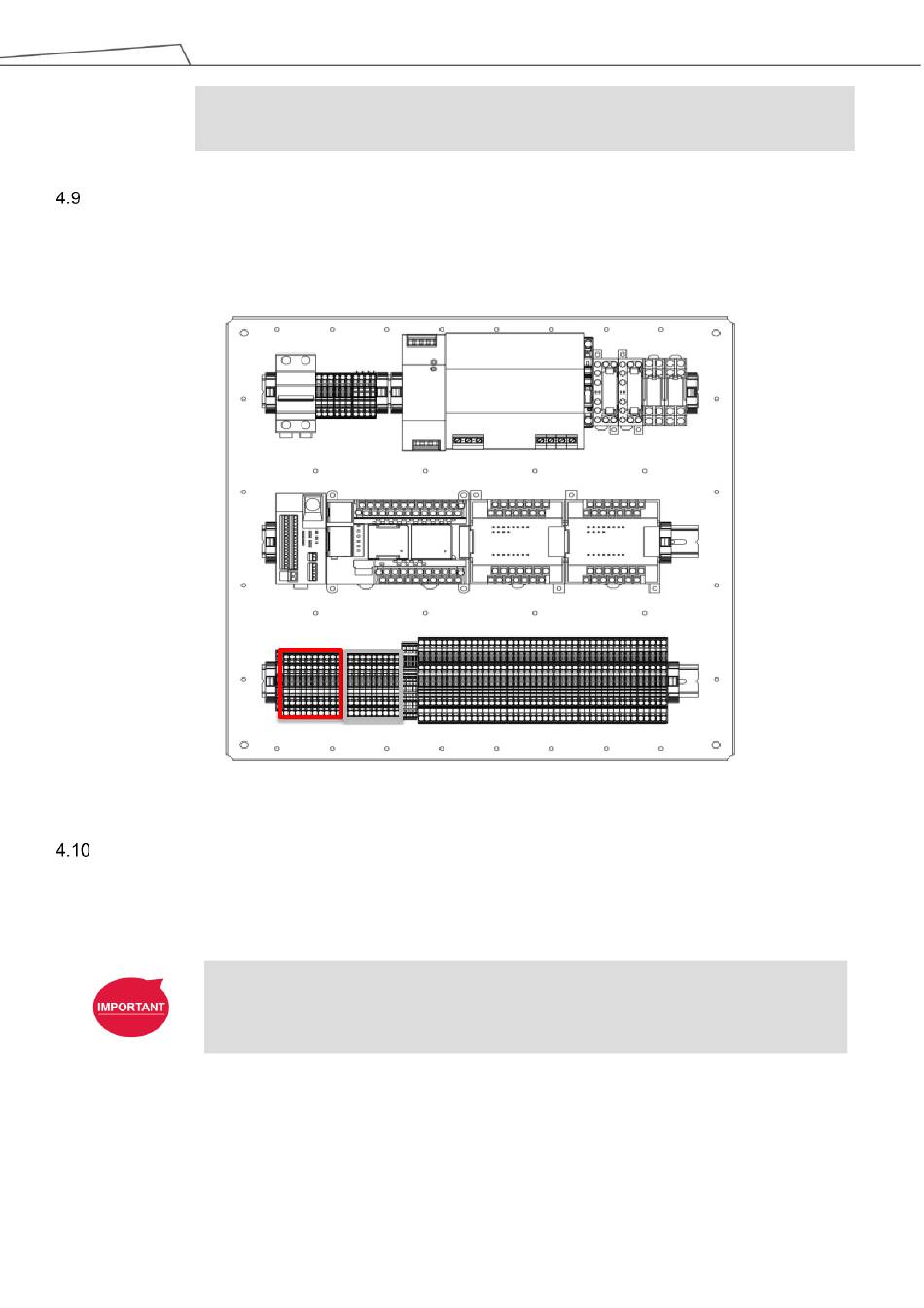

Figure 28: Power Terminal (+24V/+0V)
Product Version: 1.1 Document Version: 1.2 75
