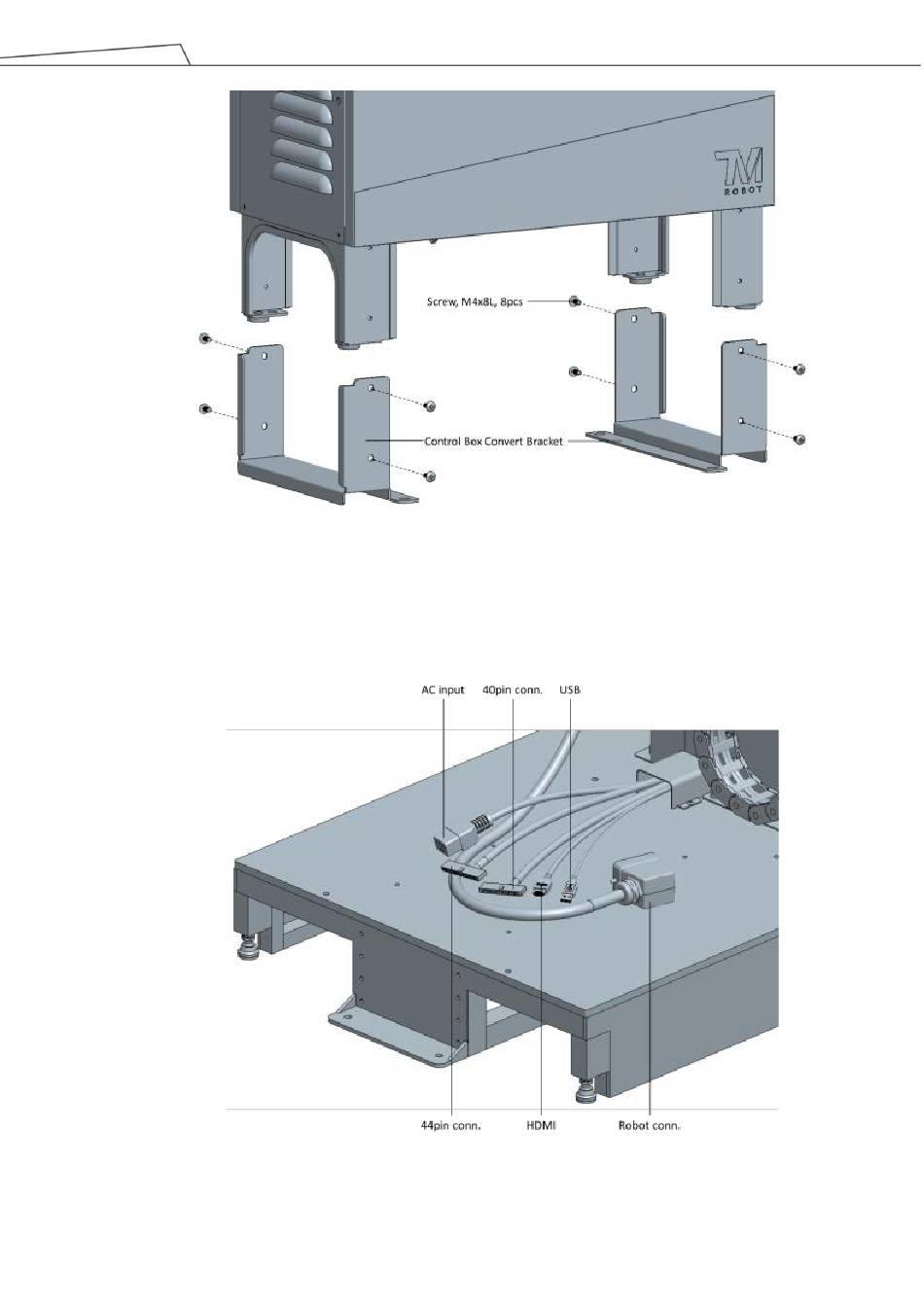

Figure 42: Secure the Covert Brackets to the Legs of the Control Box
Lay the control box down horizontally. Place AC power, 40pin, 44pin, HDMI, and USB
3.
cables through the space between the legs and the brackets to plug into their
corresponding connectors.
Figure 43: Proper Cable Connections
TM Palletizing Operator User's Manual
Product Version: 1.1 Document Version: 1.2
