Techman Robot TM Palletizing Operator User Manual page 77

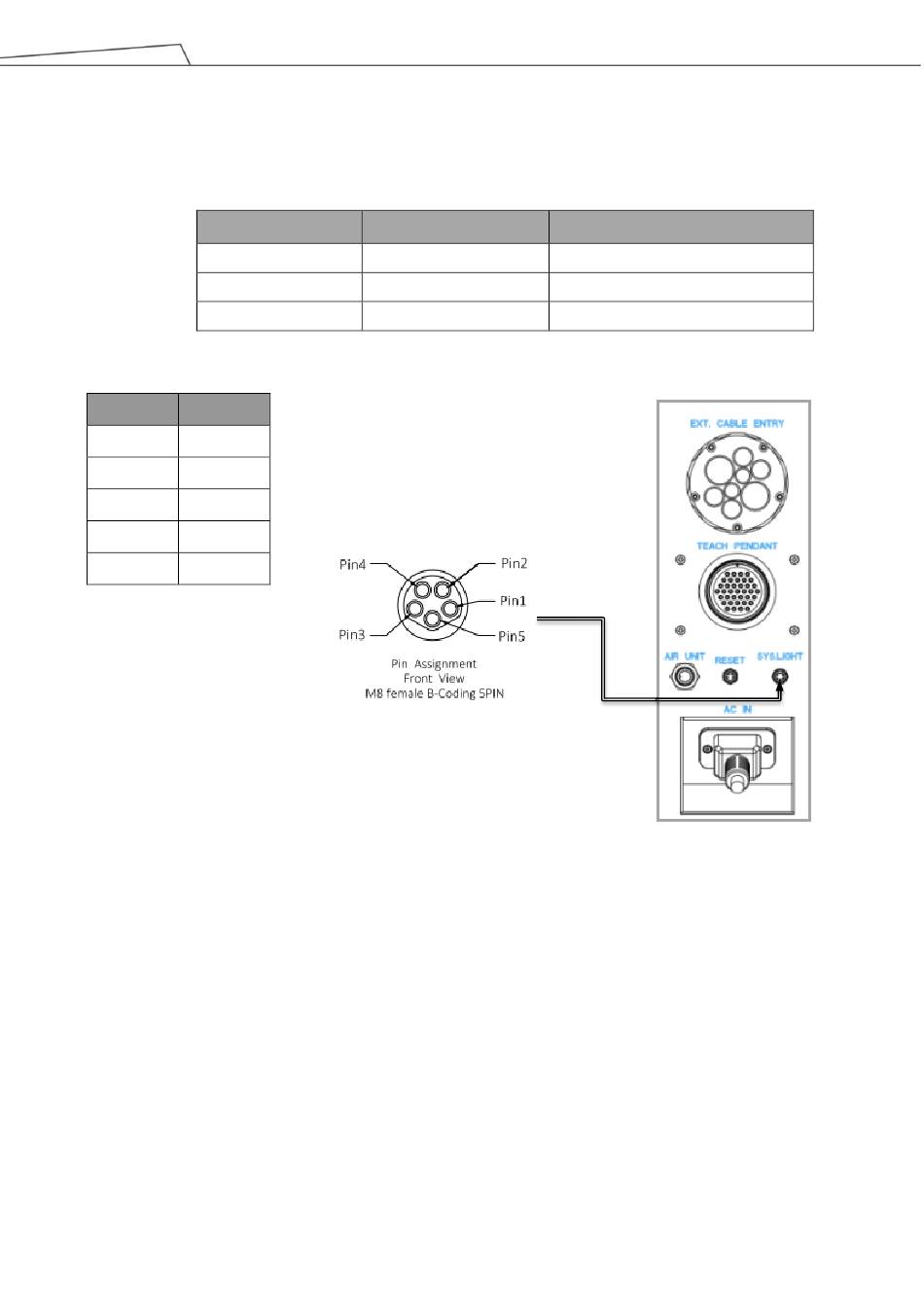

For System light Indicator, the output signals lie in the External I/O component CP1W-20EDT as
depicted in the diagram below:
Pin Signal
1 F_24V
2 EXO1_00
3 EXO1_01
4 EXO1_02
5 PE
TM Palletizing Operator User's Manual
Signal Color Indication
Output0
Output1
Output2
Table 19: System Light Indicator
Figure 31: System Light Indication I/O
Product Version: 1.1 Document Version: 1.2
Green
Orange
Red System emergency stop
Status
System normal
System pause
