Use a flat-blade screwdriver to open the covers of the cable drag chain.
2.
Place the robot cable in the cable drag chain and seal the cover of the cable drag chain.
3.
Use the unfastened screws to reinstall the cable drag chain and pneumatic quick connector.
4.
TM Palletizing Operator User's Manual

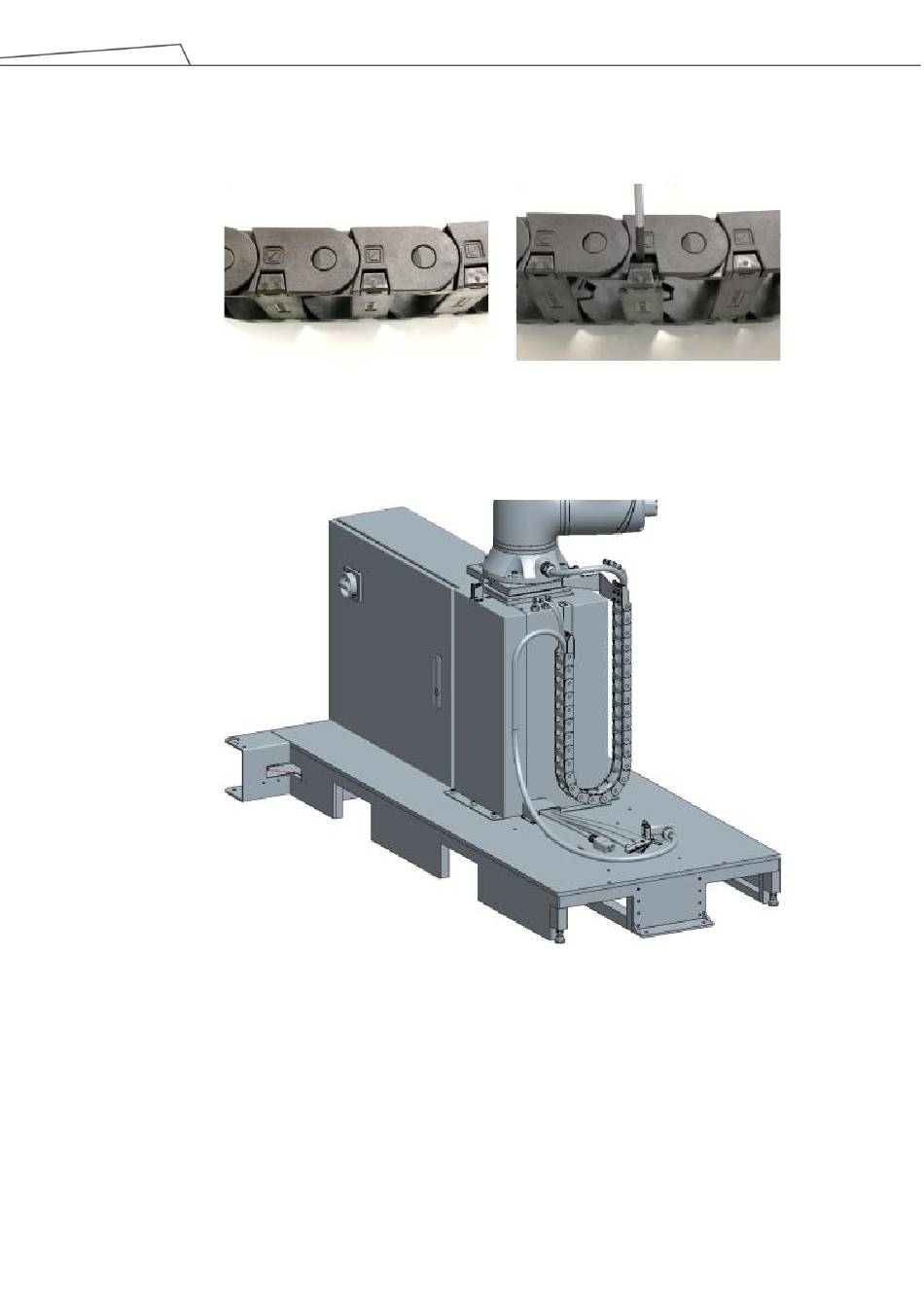

Figure 37: Secure the Robot onto a Base Plate
Figure 38: Open the Covers of the Cable Drag Chain
Figure 39: Seal and Reinstall (Applicable to Pillar Elongation 500 ㎜)
Product Version: 1.1 Document Version: 1.2
