should be Rz25 or less. The recommended screw should be M10 x L30 ㎜, at least 8.8
strength.
Install the Control Box
Remove the EX-IO module from the control box by unplugging the 44pin & 40pin ribbon
1.
cable located at the rear of the module.
Secure the control box covert brackets to the legs of the control box. Use 4 x M4 screws for
2.
each of the bracket.
TM Palletizing Operator User's Manual

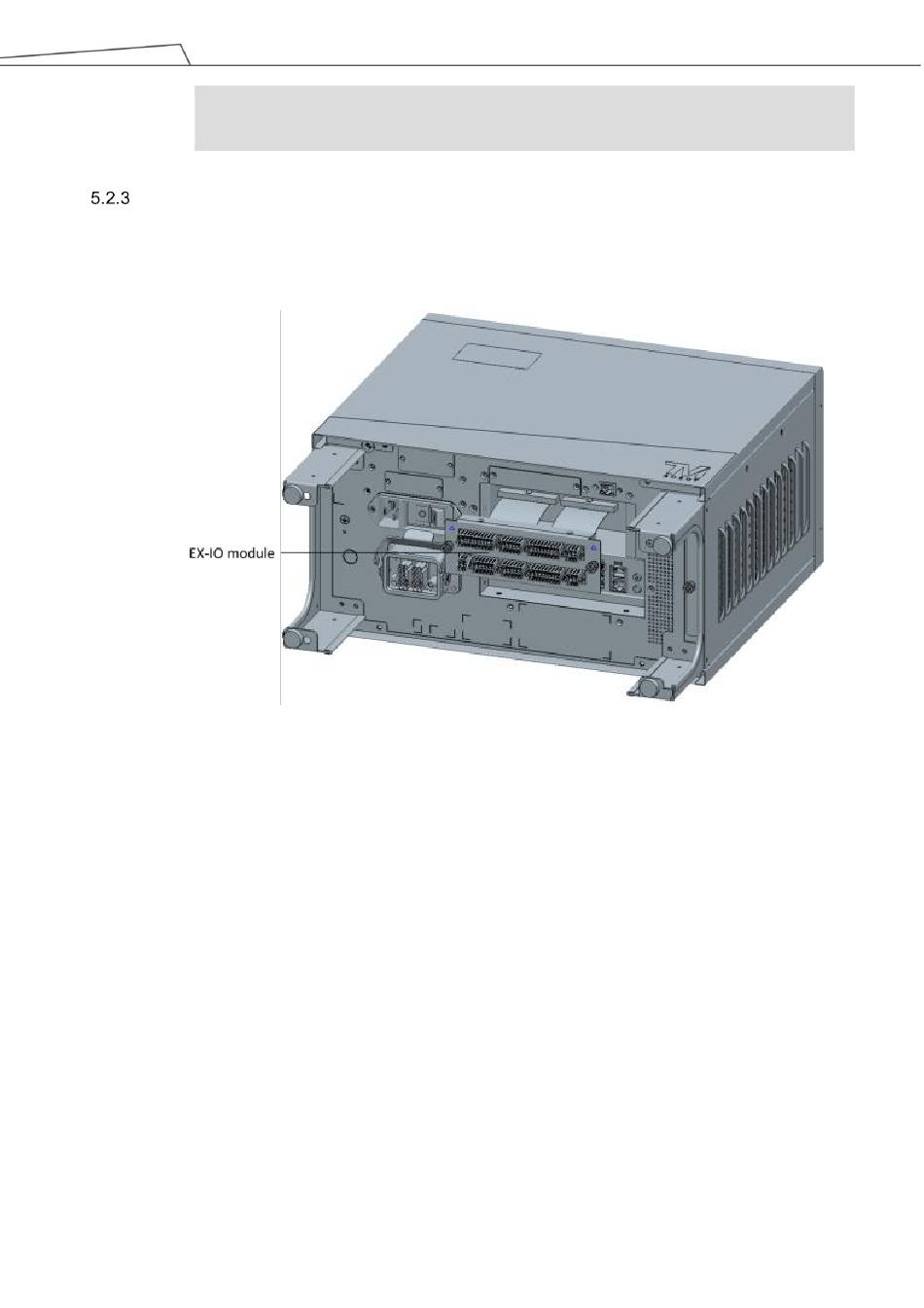

Figure 41: Remove EX-IO module from control box
Product Version: 1.1 Document Version: 1.2
85
