Click or tap the Add Box Layer icon and the pallet image will appear in TMstudio.
1.
The figure below gives an example of 4 layers.
Click or tap the Add Box icon to start box layout. Note that the sizes of boxes and pallet are
2.
based on the configurations in previous steps.
Users can use the question mark icon to view the respective icon description. Refer the table for
details of icon functions.
Icon
Users can right-click or tap the box to shift box, delete box, or change the label side of the box.
TM Palletizing Operator User's Manual

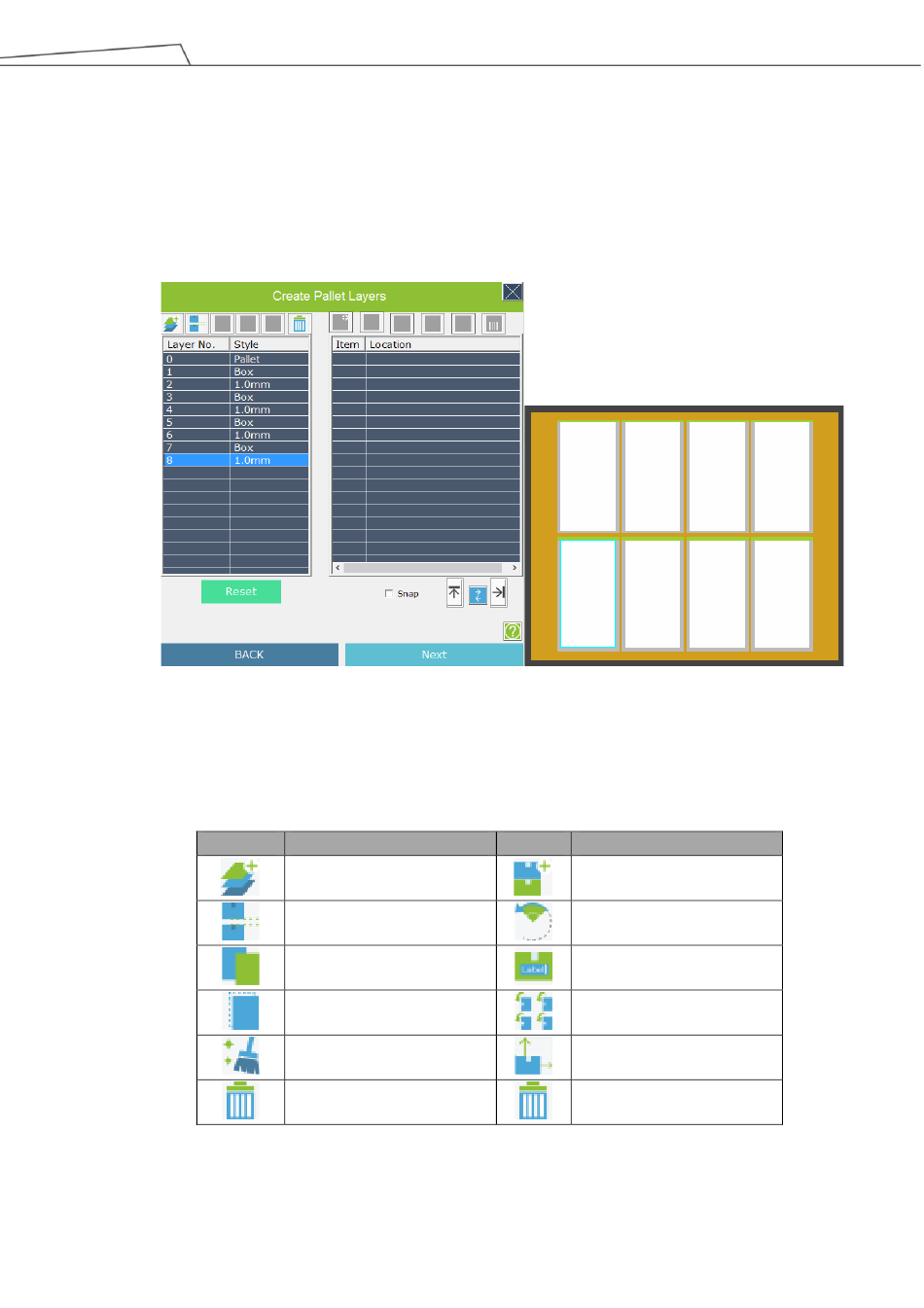

Figure 96: Create Pallet Layers
Function
Add Box Layer
Add Z Direction Clearance
Copy Box Layer
Paste Box Layer
Clear Box Layer
Delete Box Layer
Table 23: Icon Functions in Create Pallet Layers
Product Version: 1.1 Document Version: 1.2
Icon Function
Add Box
Rotate Box Before Placing
Change Box Label Side
Auto Layout
Shift Box
Delete Box
