4 - Command Set

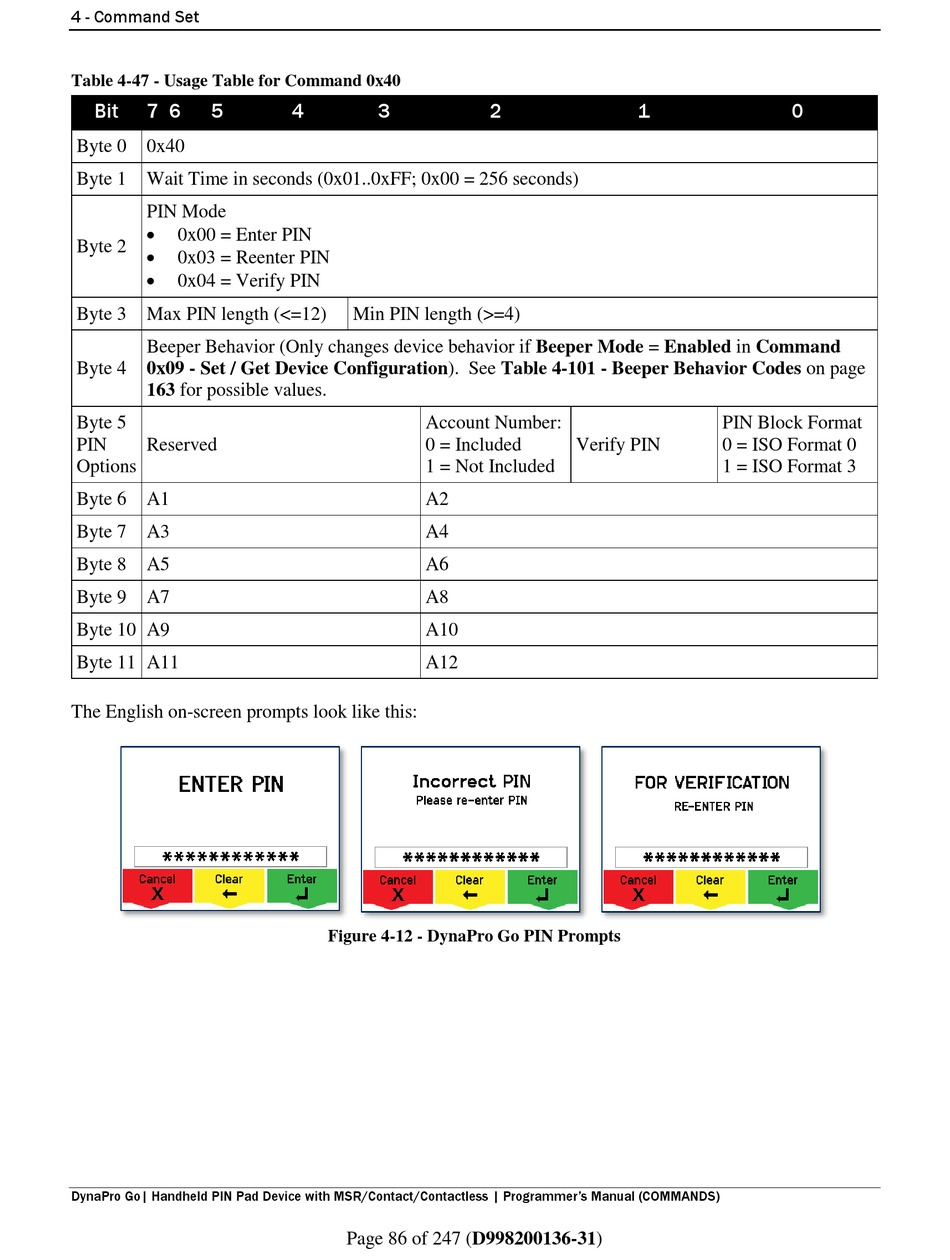

Table 4-47 - Usage Table for Command 0x40
Bit 7 6 5
Byte 0 0x40
Byte 1 Wait Time in seconds (0x01..0xFF; 0x00 = 256 seconds)
PIN Mode

0x00 = Enter PIN
Byte 2

0x03 = Reenter PIN

0x04 = Verify PIN
Byte 3 Max PIN length (<=12)
Beeper Behavior (Only changes device behavior if Beeper Mode = Enabled in Command
Byte 4 0x09 - Set / Get Device Configuration). See Table 4-101 - Beeper Behavior Codes on page
163 for possible values.
Byte 5
PIN Reserved
Options
Byte 6 A1
Byte 7 A3
Byte 8 A5
Byte 9 A7
Byte 10 A9
Byte 11 A11
The English on-screen prompts look like this:
DynaPro Go| Handheld PIN Pad Device with MSR/Contact/Contactless | Programmer's Manual (COMMANDS)
4 3
Min PIN length (>=4)
Account Number:
0 = Included
1 = Not Included
A2
A4
A6
A8
A10
A12
Figure 4-12 - DynaPro Go PIN Prompts
Page 86 of 247 (D998200136-31)
2 1
Verify PIN
0
PIN Block Format
0 = ISO Format 0
1 = ISO Format 3
