4 - Command Set

4.3.16 Command 0x11 - Request Manual Card Entry

This command directs the device to prompt the cardholder to enter the following card information by
keypad. Two modes are available: Account Number mode and Qwick Code mode:
Account Number mode prompts for the following:

Account number (minimum length = 9, maximum length = 19)

Expiration date (minimum length = maximum length = 4)

Card verification code (minimum length = 3, maximum length = 4)
Qwick Code mode prompts for the following:

Qwick Code (minimum length = 8, maximum length = 16)

Last 4 digits of account # (minimum length = maximum length = 4)

Card verification code (minimum length = 3, maximum length = 4)
If an error occurs, the device terminates the command and reports the error in ACKSTS of Command
0x01 - Response ACK. For a full list of error codes, see Command 0x01 - Response ACK.
If no error occurs, the device sends Report 0x22 - Card Status Report to the host. If the cardholder or
operator cancelled the request, or if the request timed out, byte 1 of Report 0x22 - Card Status Report
contains the appropriate Operation Status code to indicate why the command did not complete.
Otherwise, if all of the card information was entered correctly, byte 1 = 0x00 (this command completed
OK), byte 2 = 0x00 (Card Status is OK), byte 3 = 0x03 (Card Type is manual), and the host should send a
request to get the card data (see Command 0x0A - Request MSR Data). The device responds with
multiple instances of Report 0x23 - Card Data Report, followed by Report 0x20 - Device State
Report.
Table 4-21 - Usage Table for Command 0x11
Bit 7
Byte 0 0x11
Byte 1 Wait Time in seconds, (0x01..0xFF, 0x00 = 256 seconds)
DynaPro Go| Handheld PIN Pad Device with MSR/Contact/Contactless | Programmer's Manual (COMMANDS)

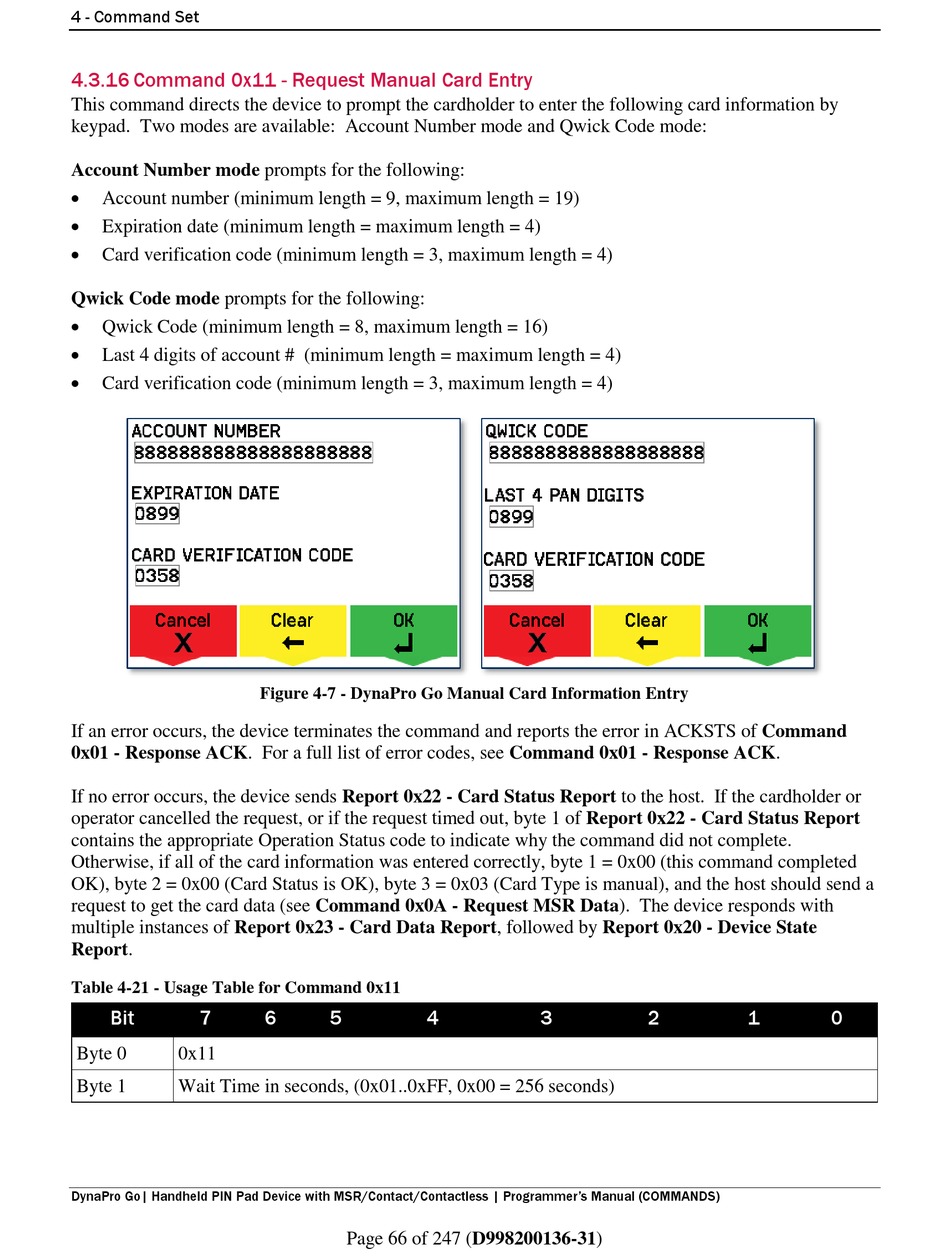

Figure 4-7 - DynaPro Go Manual Card Information Entry
6 5 4
Page 66 of 247 (D998200136-31)
3 2 1 0
