Magtek DynaPro Go Quick Installation Manual

Product Description
DynaPro Go Wire Management Cradle is a stabilizing cradle used for wire management for the DynaPro Go handheld PIN Pad.

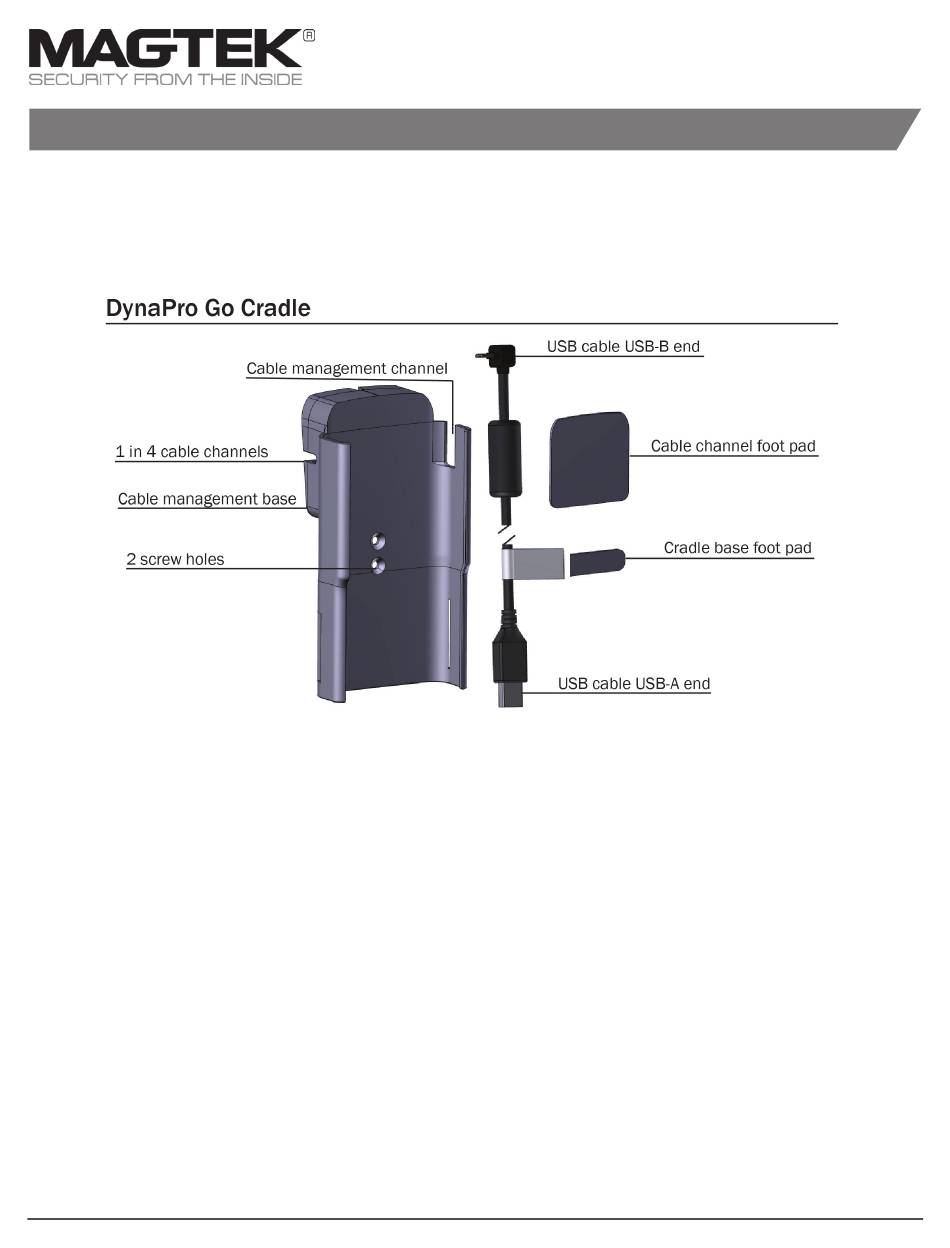

Major Components
Contents
DynaPro Go Cradle ships with the housing itself, one (1) USB 6ft
cable (USB A-B) PN 1000007380, and two (2) neoprene feet PN
1000007348 (comprised of the cable channel foot pad and the
Cradle base foot pad).
DynaPro Go Installed in Cradle
The DynaPro Go Cradle stabilizes the DynaPro Go cable and
provides countertop installation capability. The Cradle is an
accessory that does not require or transmit power.
Wire Management Cradle PIN Pad Accessory
MagTek Inc., 1710 Apollo Court, Seal Beach CA 90740 | p 562-546-6400 | support 651-415-6800 | f 562-546-6301 | www.magtek.com
®
DynaPro Go Cradle
Quick Installation Guide
Cable
DynaPro Go has a USB-B (micro USB) connection. The cable
connects directly to the DynaPro Go on the right facing side and
faces downward. The cable is then routed through the cable
management channel to the cable management base of the Cradle.
The ferrite core nestles inside the cable management base.
Accessories
The neoprene feet protect countertops, are easier on the hands,
stabilize the device, and enforce the cable placement.
