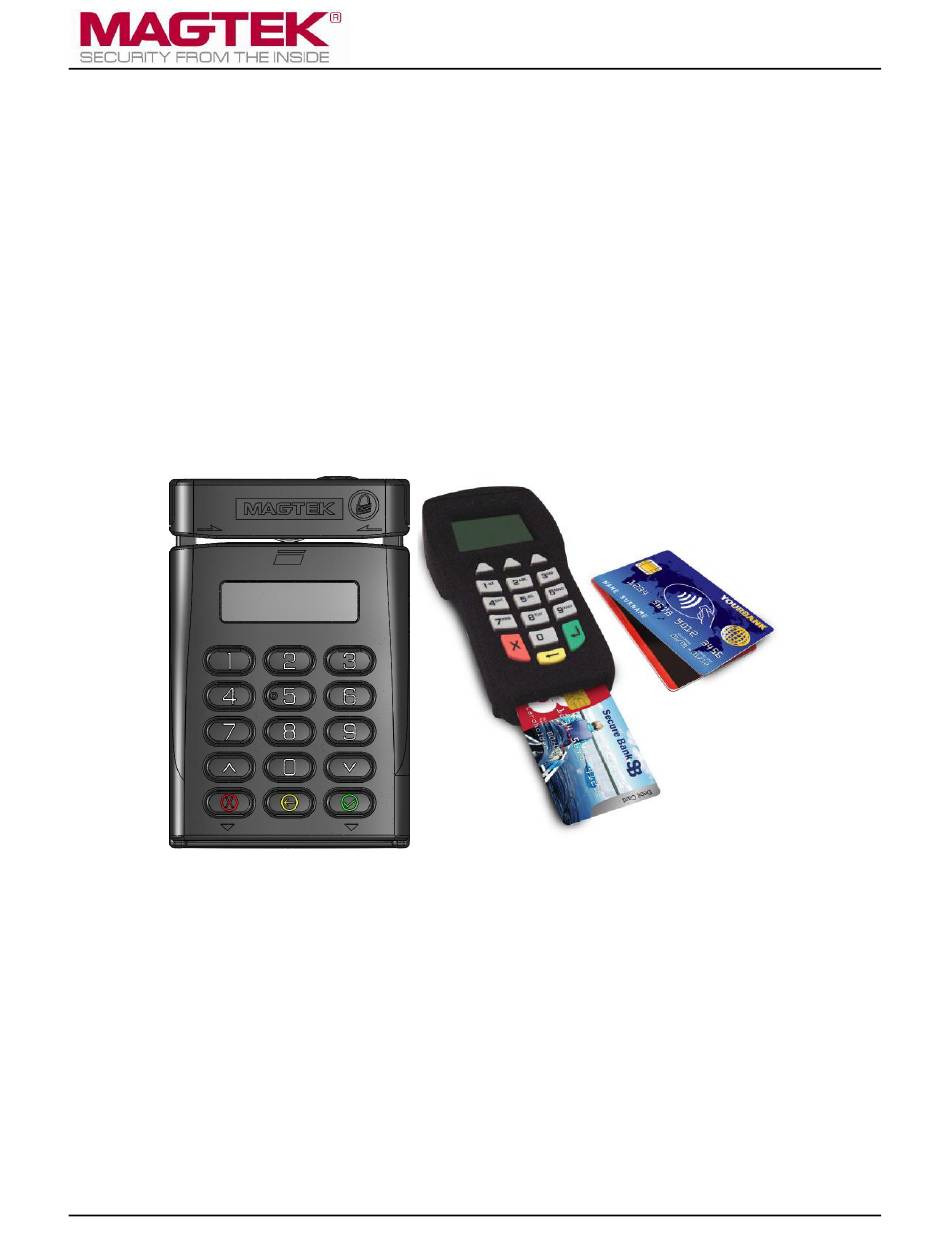

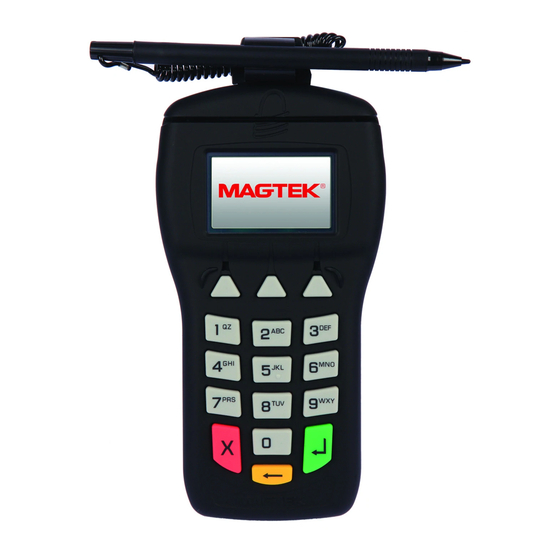

IPAD, DynaPro, DynaPro Go, and
DynaPro Mini
PIN Encryption Devices
Programmer's Reference (Microsoft Windows Store)
March 2017
Manual Part Number:
D998200077-40
REGISTERED TO ISO 9001:2008
