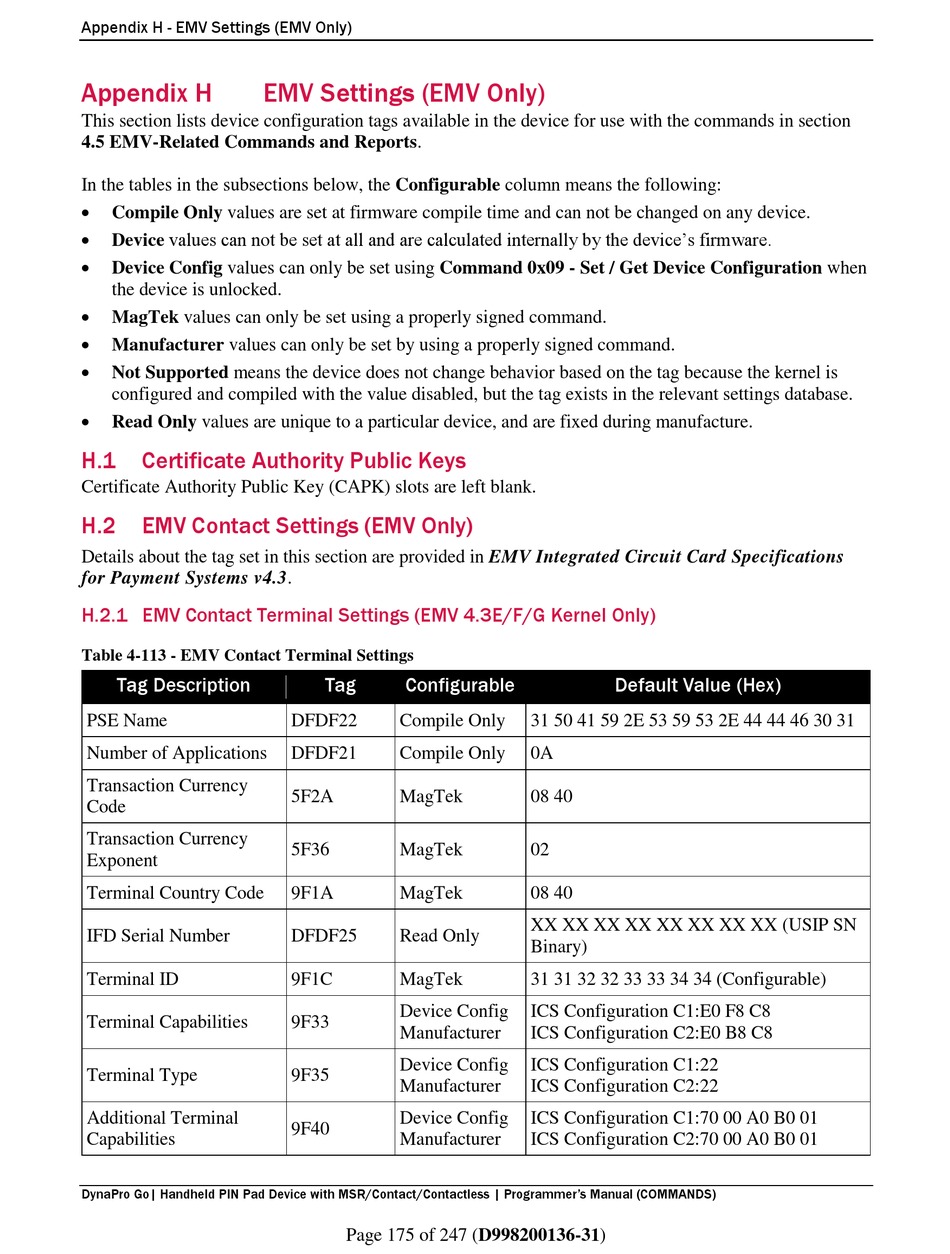

Appendix H - EMV Settings (EMV Only)
Appendix H
This section lists device configuration tags available in the device for use with the commands in section
4.5 EMV-Related Commands and Reports.
In the tables in the subsections below, the Configurable column means the following:

Compile Only values are set at firmware compile time and can not be changed on any device.

Device values can not be set at all and are calculated internally by the device's firmware.

Device Config values can only be set using Command 0x09 - Set / Get Device Configuration when
the device is unlocked.

MagTek values can only be set using a properly signed command.

Manufacturer values can only be set by using a properly signed command.

Not Supported means the device does not change behavior based on the tag because the kernel is
configured and compiled with the value disabled, but the tag exists in the relevant settings database.

Read Only values are unique to a particular device, and are fixed during manufacture.
H.1

Certificate Authority Public Keys

Certificate Authority Public Key (CAPK) slots are left blank.
H.2

EMV Contact Settings (EMV Only)

Details about the tag set in this section are provided in EMV Integrated Circuit Card Specifications
for Payment Systems v4.3.
H.2.1 EMV Contact Terminal Settings (EMV 4.3E/F/G Kernel Only)
Table 4-113 - EMV Contact Terminal Settings
Tag Description
PSE Name
Number of Applications
Transaction Currency
Code
Transaction Currency
Exponent
Terminal Country Code
IFD Serial Number
Terminal ID
Terminal Capabilities
Terminal Type
Additional Terminal
Capabilities
DynaPro Go| Handheld PIN Pad Device with MSR/Contact/Contactless | Programmer's Manual (COMMANDS)
EMV Settings (EMV Only)
Tag Configurable
DFDF22 Compile Only
DFDF21 Compile Only
5F2A MagTek
5F36 MagTek
9F1A MagTek
DFDF25 Read Only
9F1C MagTek
Device Config
9F33
Manufacturer
Device Config
9F35
Manufacturer
Device Config
9F40
Manufacturer
Page 175 of 247 (D998200136-31)
Default Value (Hex)
31 50 41 59 2E 53 59 53 2E 44 44 46 30 31
0A
08 40
02
08 40
XX XX XX XX XX XX XX XX (USIP SN
Binary)
31 31 32 32 33 33 34 34 (Configurable)
ICS Configuration C1:E0 F8 C8
ICS Configuration C2:E0 B8 C8
ICS Configuration C1:22
ICS Configuration C2:22
ICS Configuration C1:70 00 A0 B0 01
ICS Configuration C2:70 00 A0 B0 01
