4 - Command Set

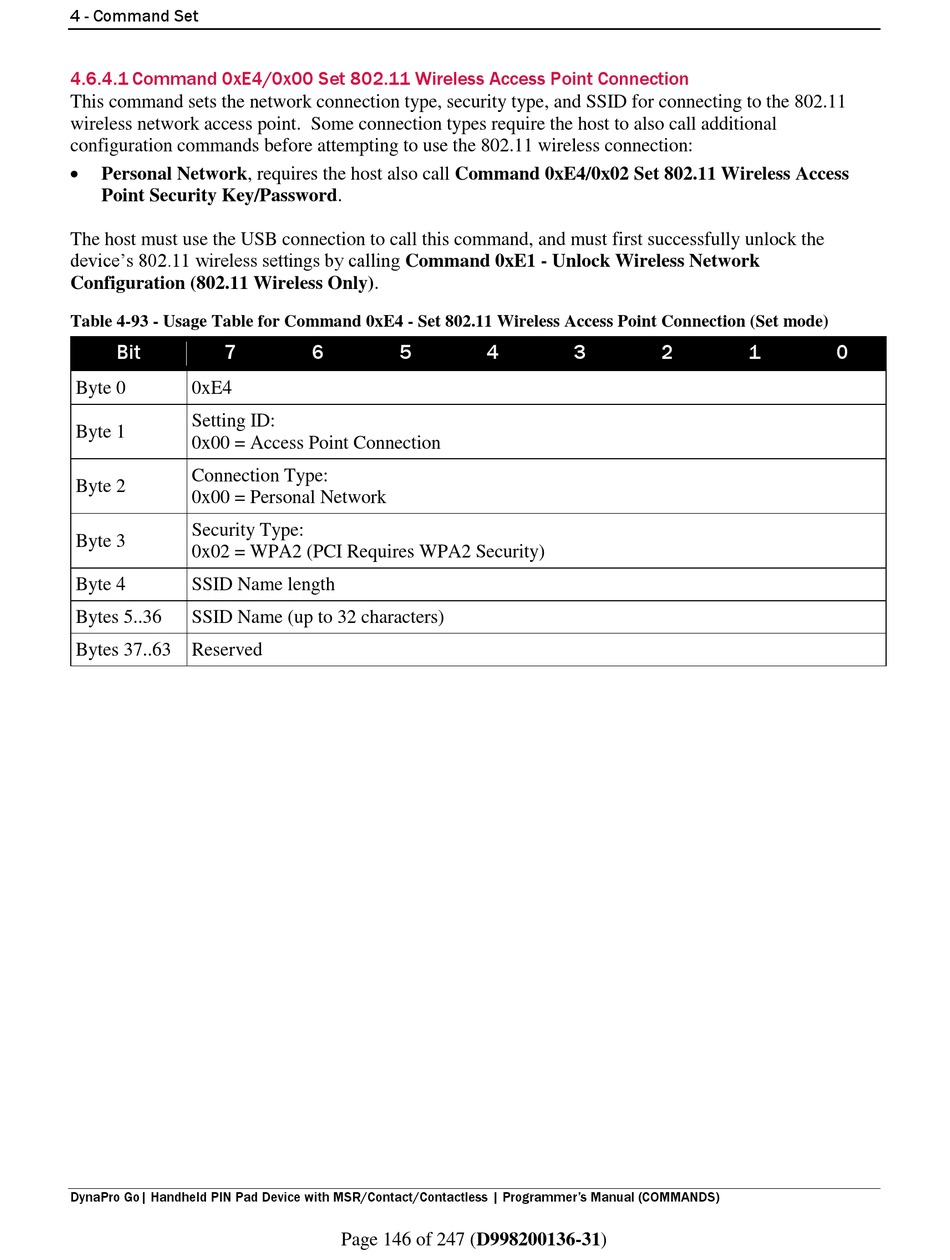

4.6.4.1 Command 0xE4/0x00 Set 802.11 Wireless Access Point Connection

This command sets the network connection type, security type, and SSID for connecting to the 802.11
wireless network access point. Some connection types require the host to also call additional
configuration commands before attempting to use the 802.11 wireless connection:

Personal Network, requires the host also call Command 0xE4/0x02 Set 802.11 Wireless Access
Point Security Key/Password.
The host must use the USB connection to call this command, and must first successfully unlock the
device's 802.11 wireless settings by calling Command 0xE1 - Unlock Wireless Network
Configuration (802.11 Wireless Only).
Table 4-93 - Usage Table for Command 0xE4 - Set 802.11 Wireless Access Point Connection (Set mode)
Bit 7
Byte 0 0xE4
Setting ID:
Byte 1
0x00 = Access Point Connection
Connection Type:
Byte 2
0x00 = Personal Network
Security Type:
Byte 3
0x02 = WPA2 (PCI Requires WPA2 Security)
Byte 4 SSID Name length
Bytes 5..36 SSID Name (up to 32 characters)
Bytes 37..63 Reserved
DynaPro Go| Handheld PIN Pad Device with MSR/Contact/Contactless | Programmer's Manual (COMMANDS)
6 5 4
Page 146 of 247 (D998200136-31)
3 2 1 0
